Removal And Installation

WARNING: This page is about a different variant/trim than selected.

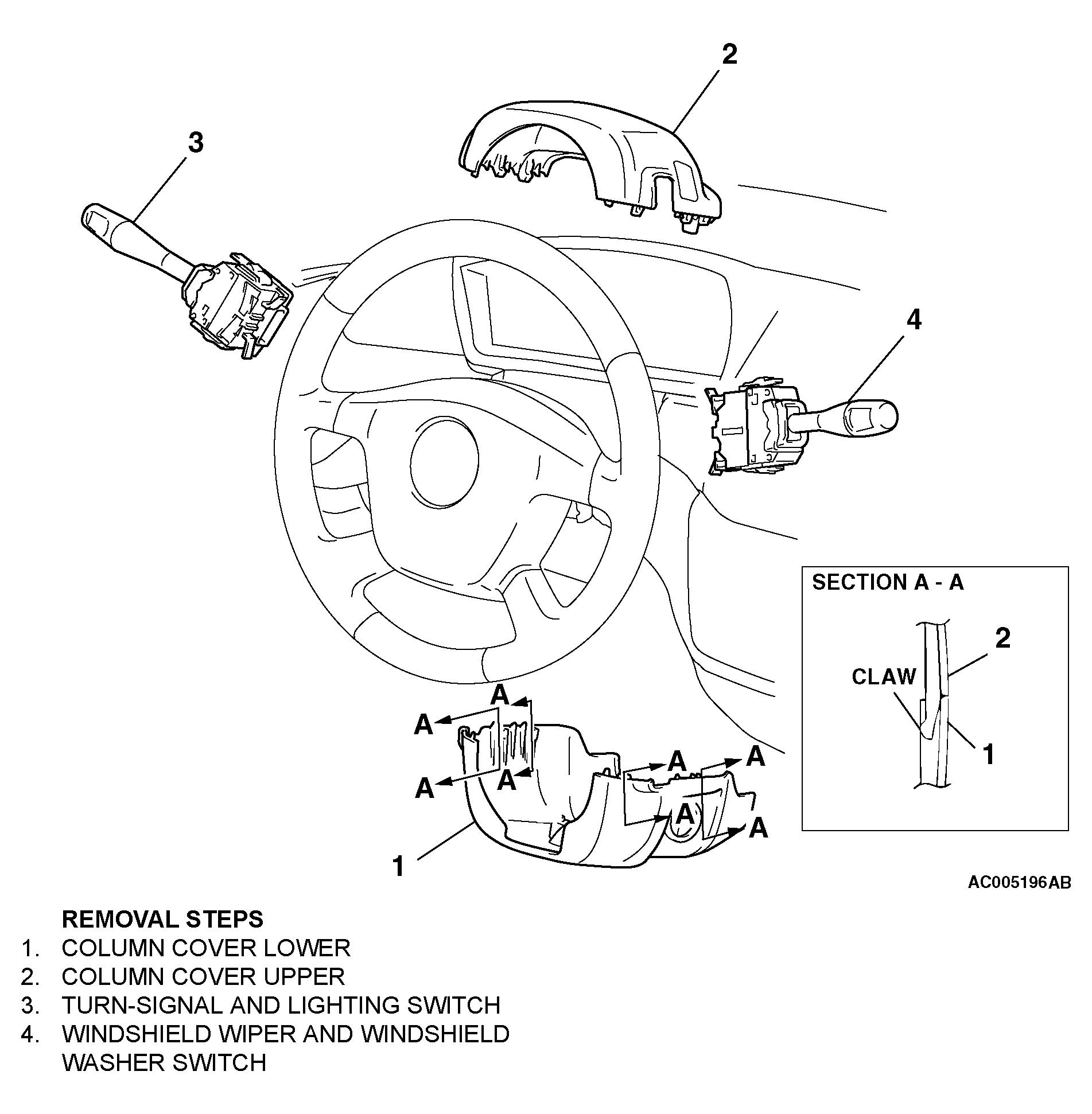

Fig 1: Removing/Installing Column Switch
G04278898Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB990784: Ornament remover
