General Circuit Diagram For The Interior Light

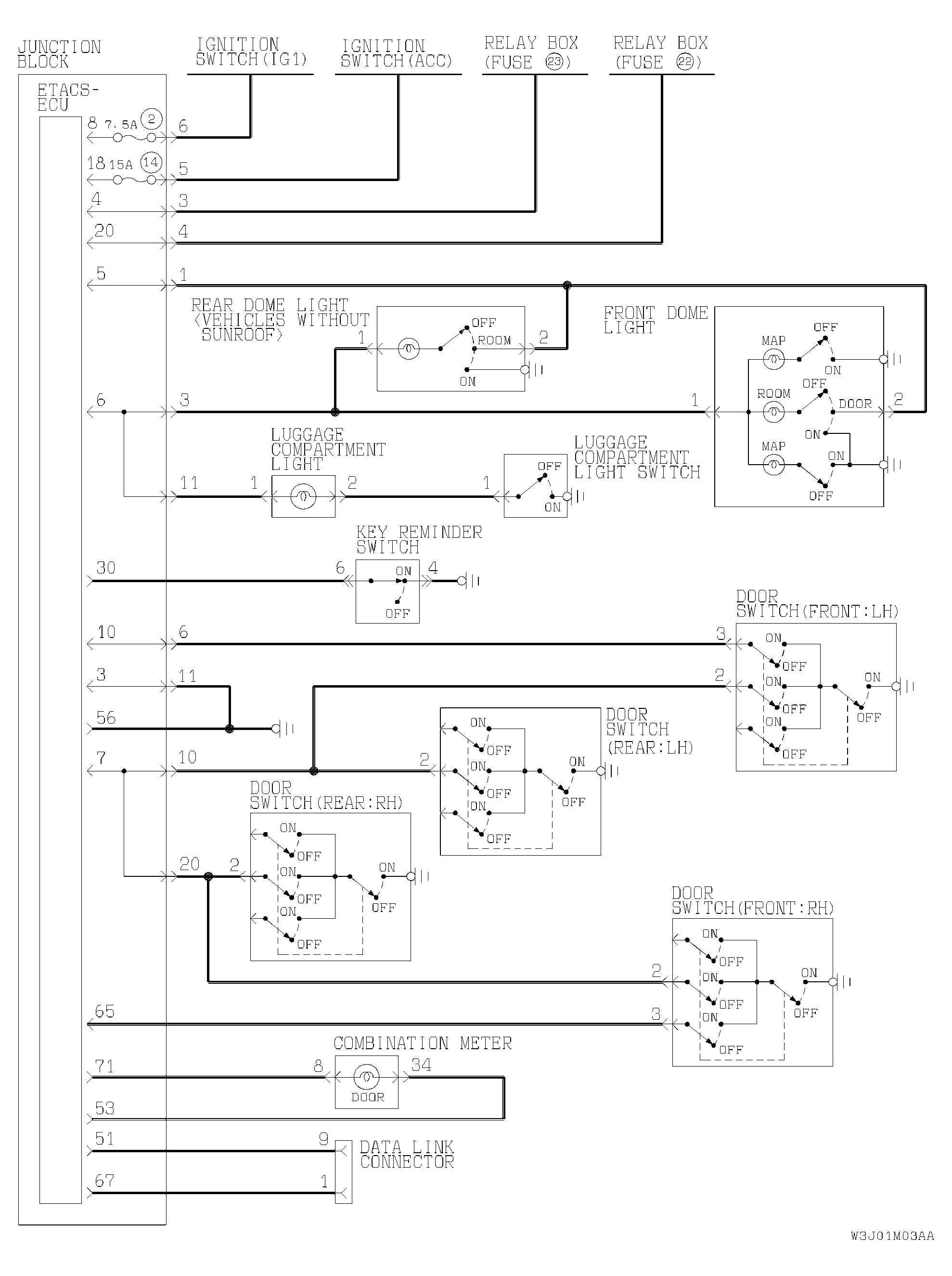

Fig 1: Interior Light - Circuit Diagram

G04299273

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
