Removal And Installation: Notes

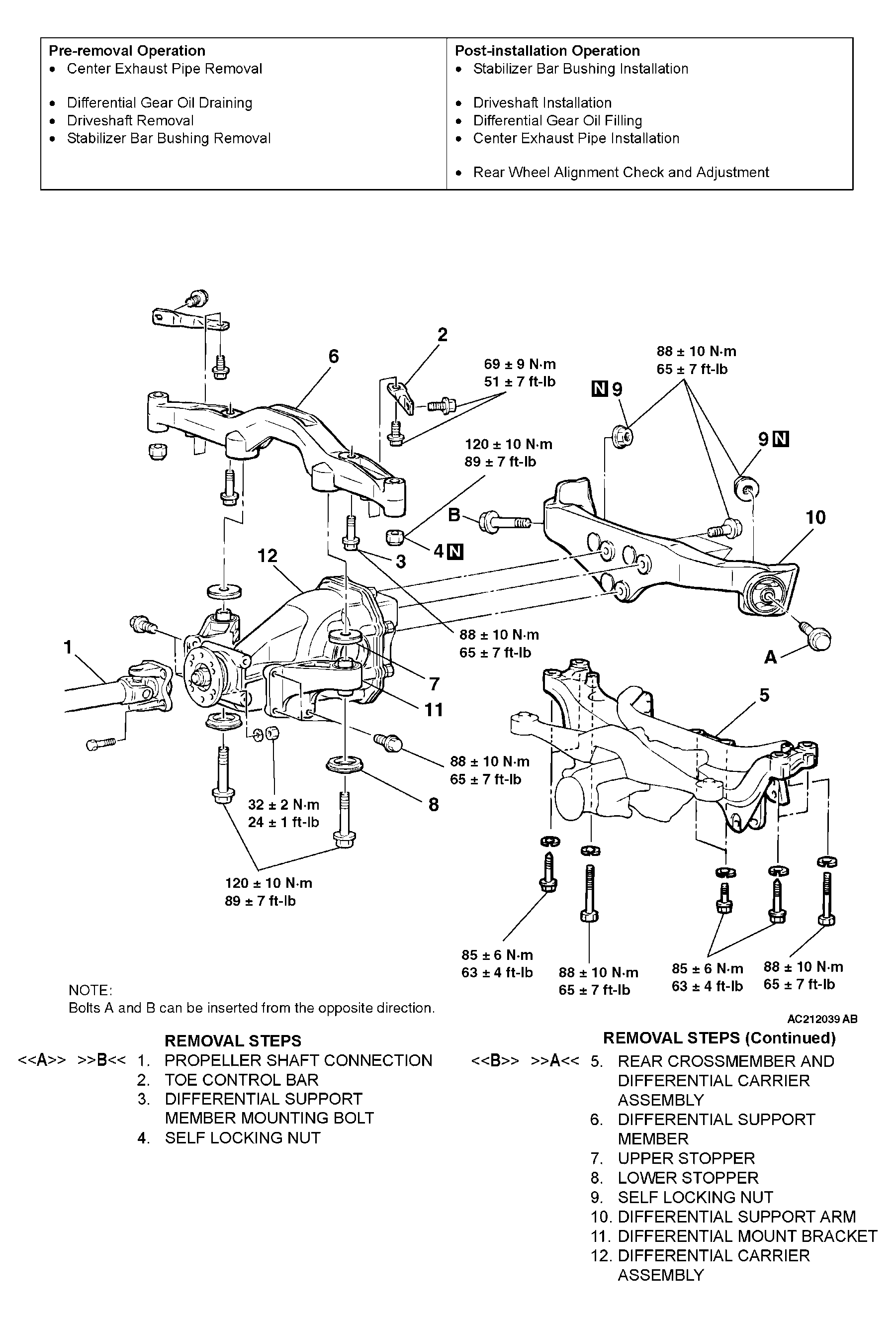

Fig 1: Removing/Installing Of Differential Carrier Assembly

G04297103

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
