Actuator Test Specifications
ACTUATOR TEST SPECIFICATIONS
| NO. |
ITEM |
PARTS TO BE ACTIVATED |
| 01 |
Solenoid valve for front-left wheel |

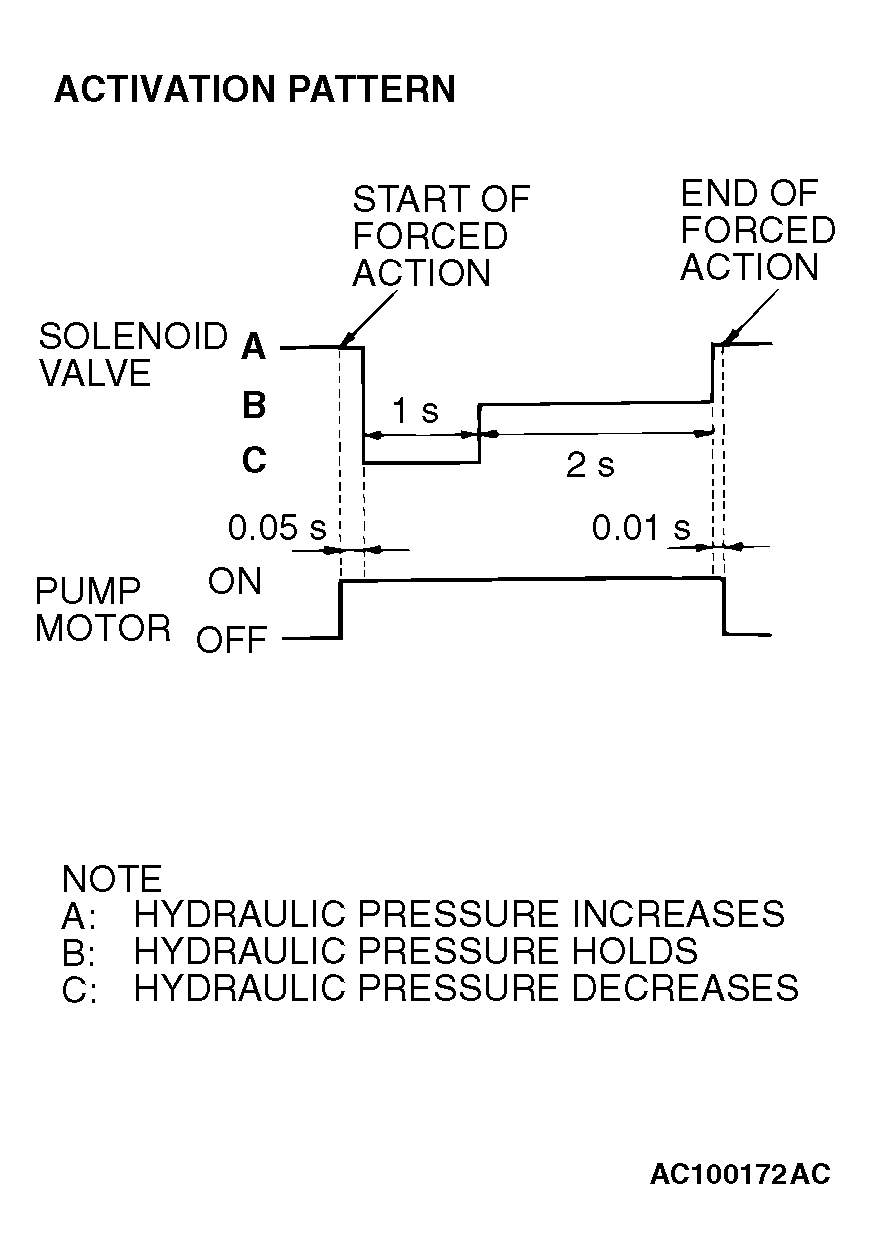

Solenoid valves and pump motors in the hydraulic unit (simple inspection mode) |
| 02 |
Solenoid valve for front-right wheel |
| 03 |
Solenoid valve for rear-left wheel |
| 04 |
Solenoid valve for rear-right wheel |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
