Auto-Cruise Control Check

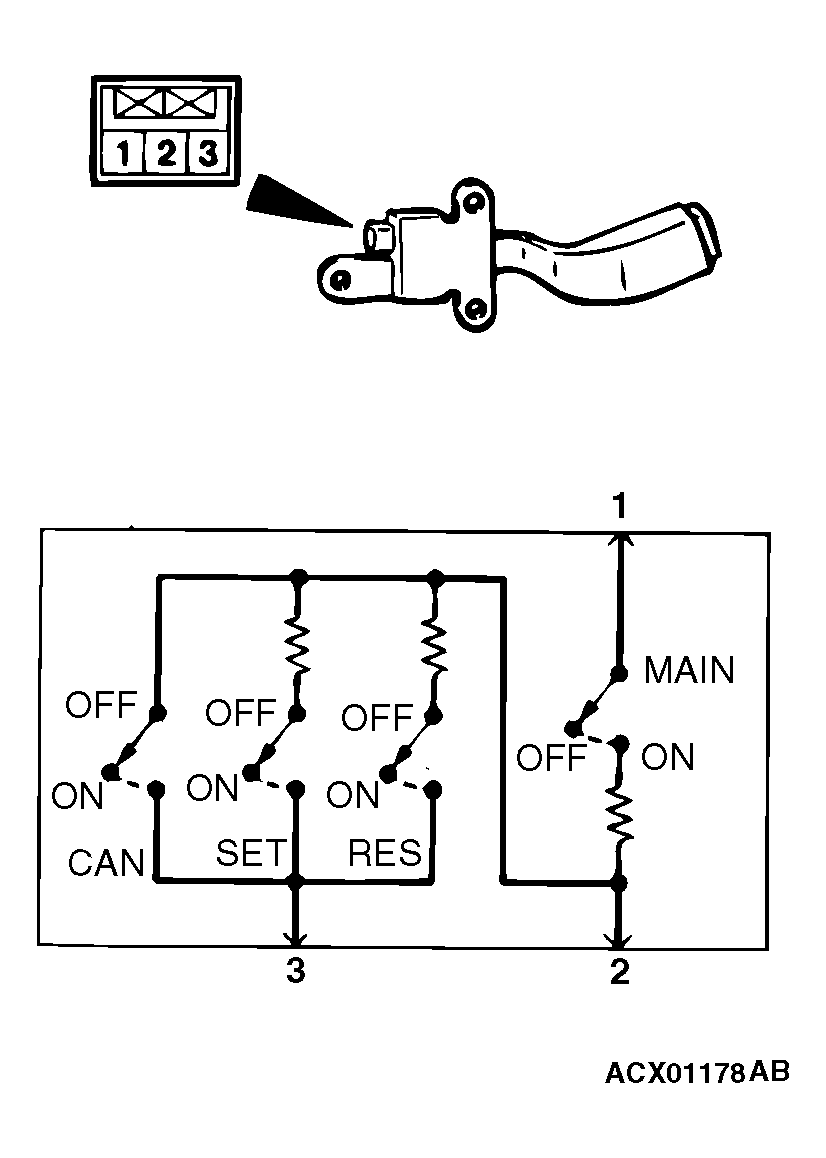

Measure the resistance between the terminals when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
SWITCH POSITIONS
| SWITCH POSITION | RESISTANCE BETWEEN TERMINAL | |
|---|---|---|
| "CRUISE" (MAIN) switch "OFF" | Terminals 1 and 2 | Open circuit |
| "CRUISE" (MAIN) switch "ON" | Terminals 1 and 2 | Approximately 3.9 kΩ |
| "CANCEL" switch ON | Terminals 2 and 3 | Approximately 0 Ω |
| "ACC/RES" switch ON | Terminals 2 and 3 | Approximately 910 Ω |
| "COAST/SET" switch ON | Terminals 2 and 3 | Approximately 220 Ω |
