Special Tools

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS SPECIFICATIONS

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
A B C D E F G	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 MUT-III sub assembly Vehicle communication interface (V.C.I.) MUT-III USB cable MUT-III main harness A (Vehicles with CAN communication system) MUT-III Main Harness B (Vehicles without CAN communication system) MUT-III main harness C (for Daimler Chrysler models only) MUT-III measurement adapter MUT-III trigger harness	MB991824-KIT NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Diagnostic trouble code check. CAUTION: MUT-III Main Harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
A B C D	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Checking the continuity and measuring the voltage at the harness connector
	MB992006 Extra fine probe	General service tool	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

MB991824
MB991827
MB991910
MB991911
MB991914
MB991825
MB991826

MUT-III sub assembly

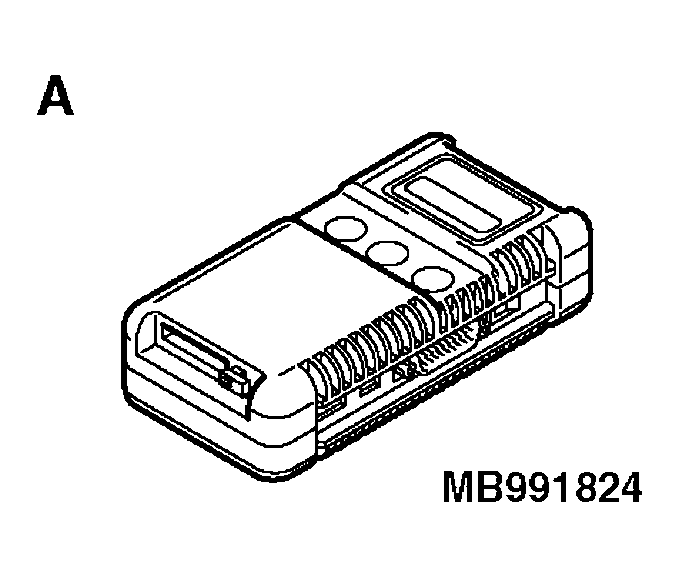

Vehicle communication interface (V.C.I.)

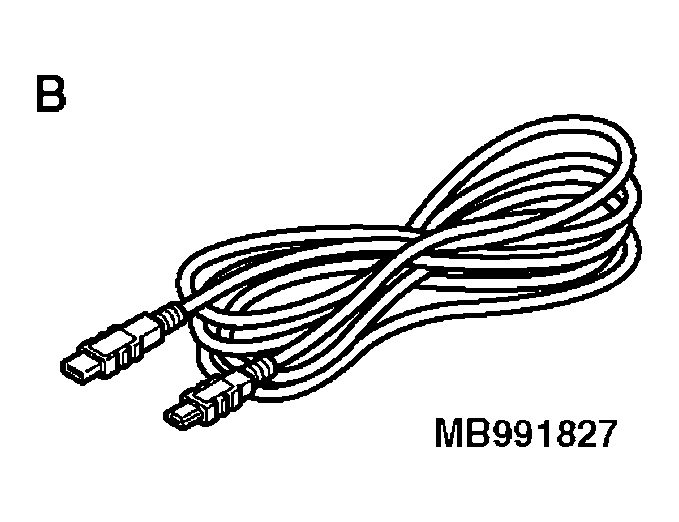

MUT-III USB cable

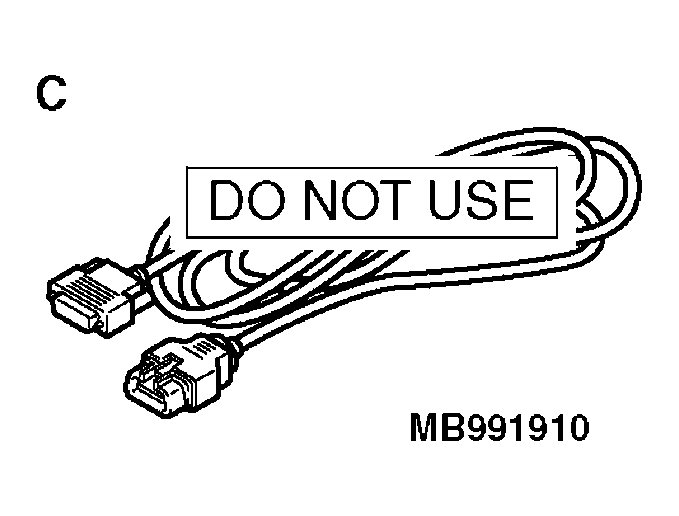

MUT-III main harness A (Vehicles with CAN communication system)

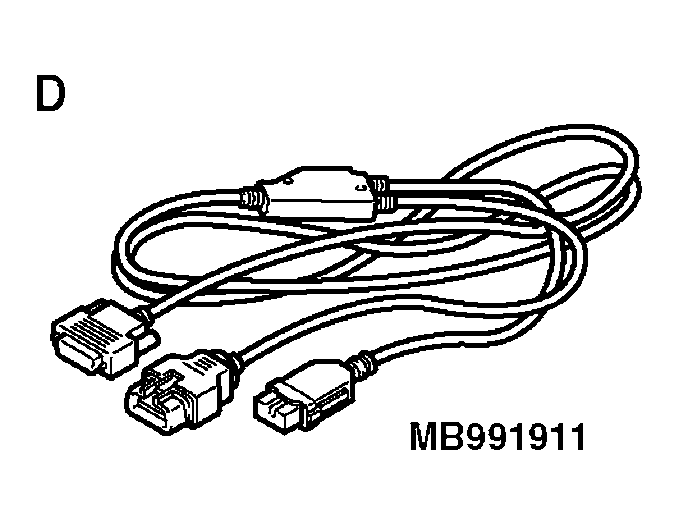

MUT-III Main Harness B (Vehicles without CAN communication system)

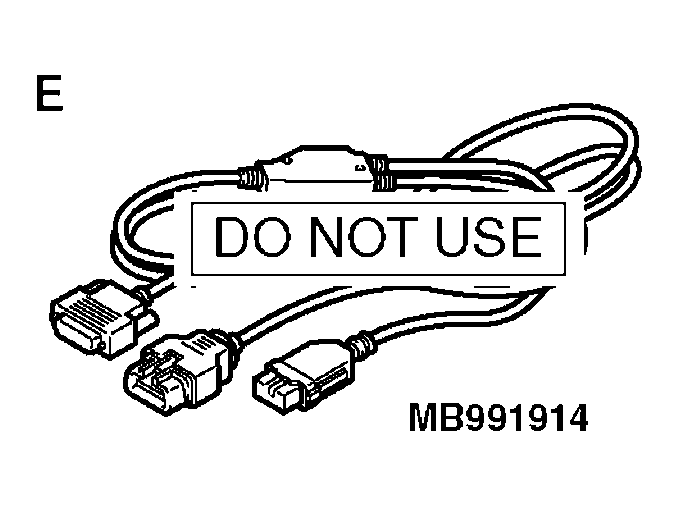

MUT-III main harness C (for Daimler Chrysler models only)

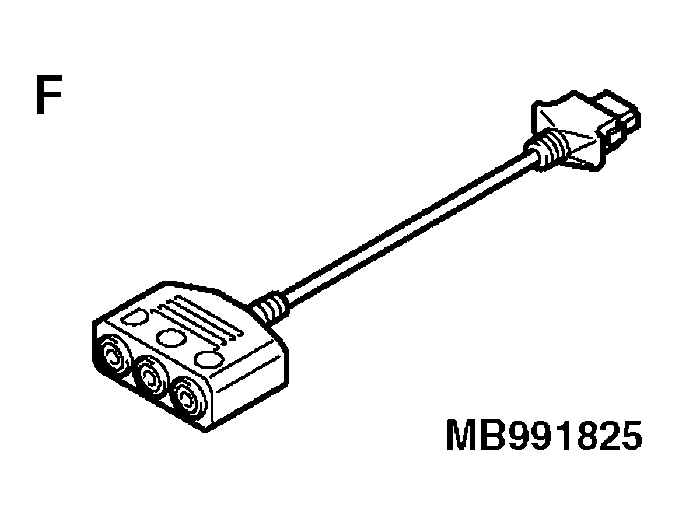

MUT-III measurement adapter

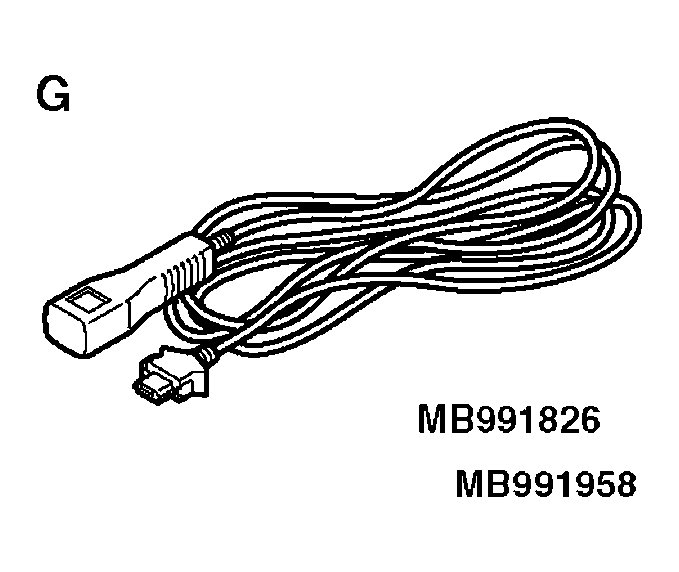

MUT-III trigger harness

MB991824-KIT

NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

Diagnostic trouble code check.

CAUTION: MUT-III Main Harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.

A
B
C
D

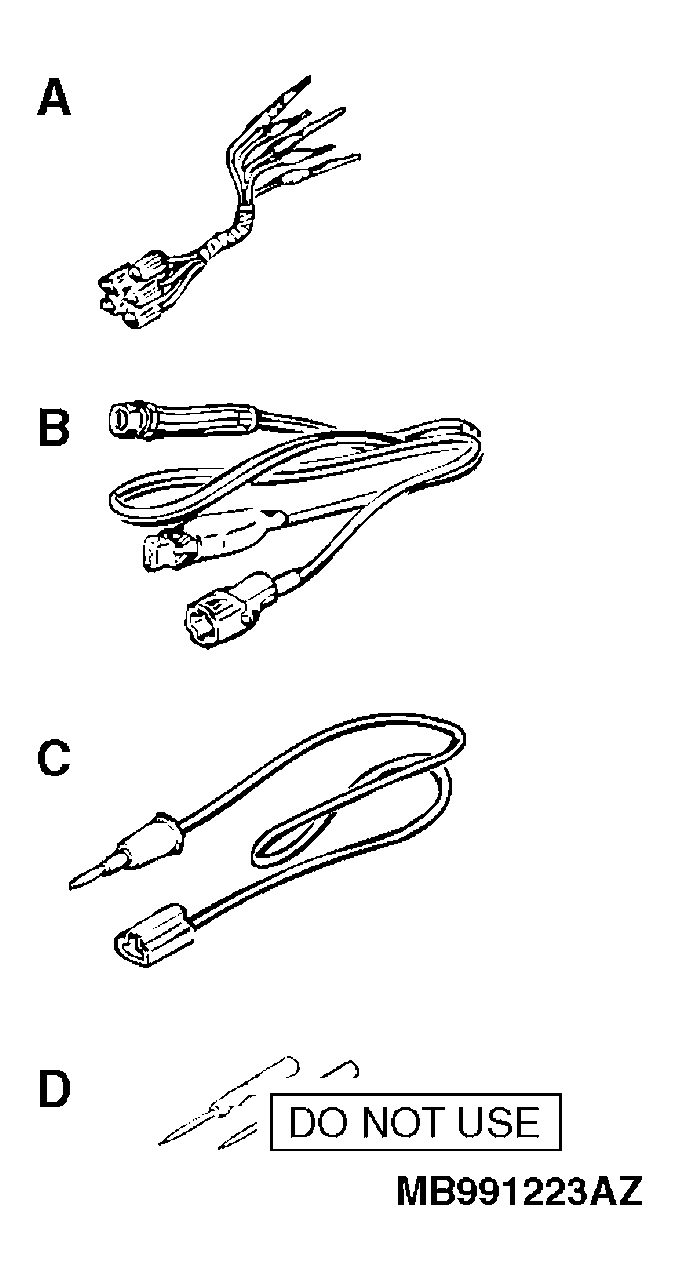

MB991223

MB991219
MB991220
MB991221
MB991222

Harness set

Test harness
LED harness
LED harness adaptor
Probe

General service tools

Checking the continuity and measuring the voltage at the harness connector

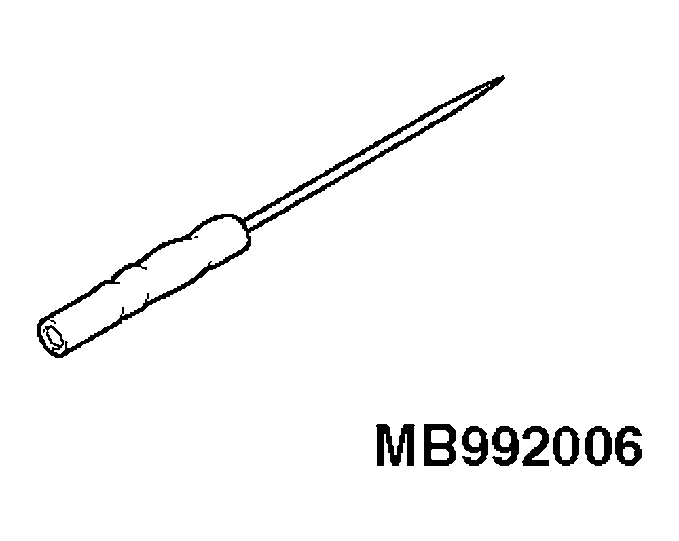

MB992006
Extra fine probe

General service tool

Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
