General Circuit Diagram For The Power Windows

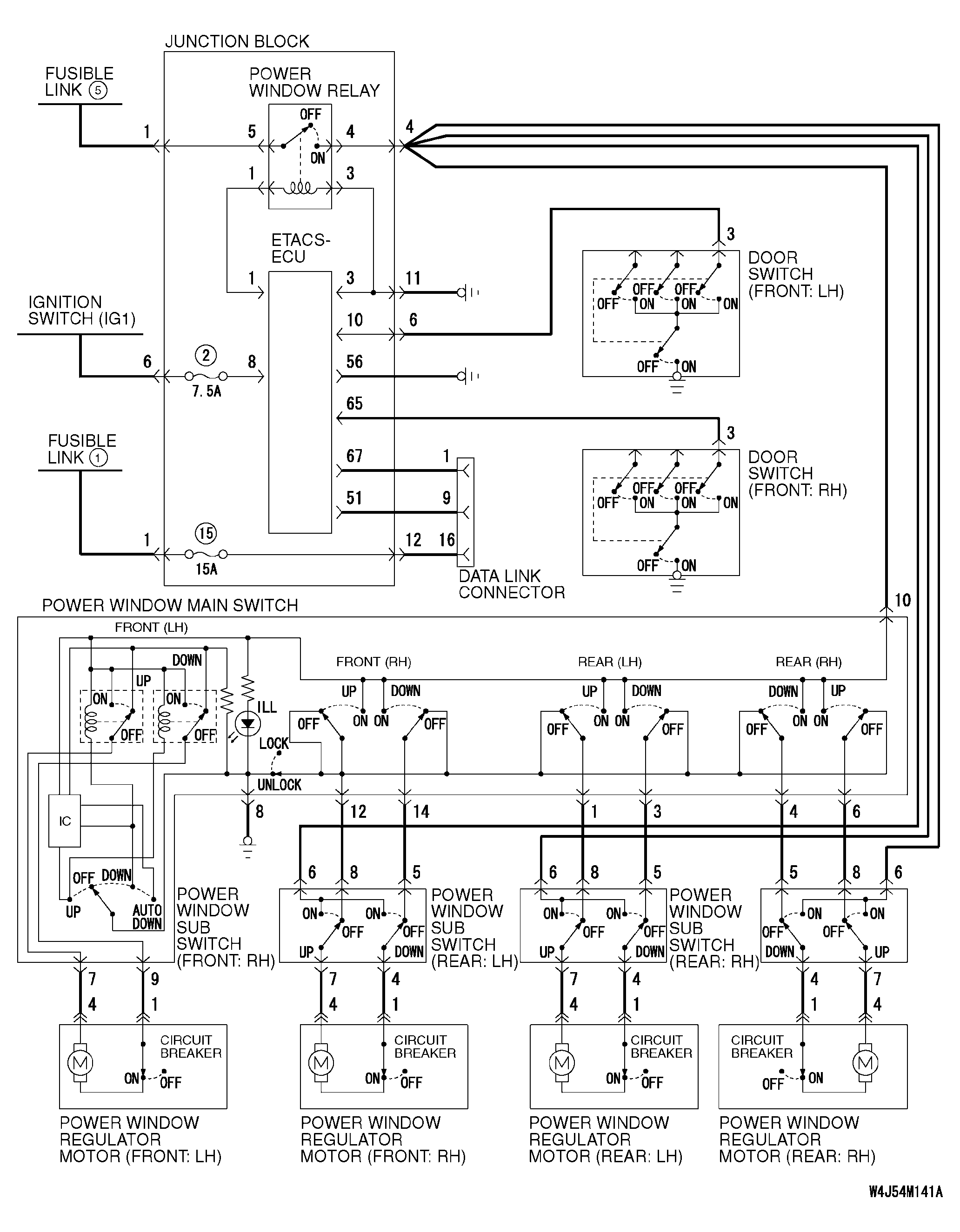

Fig 1: Power Windows - Circuit Diagram

G04298711

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
