Heated Seat Relay Continuity Check: Notes

  1. Remove the instrument lower cover.
  2. Remove the junction block mounting and slide the junction block to check the heated seat.
    HEATED SEAT RELAY CONTINUITY

    BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
    Not applied 1 - 4 Open circuit
    • Connect terminal 2 to the positive battery terminal
    • Connect terminal 3 to the negative battery terminal
    		 1 - 4 Less than 2 ohms

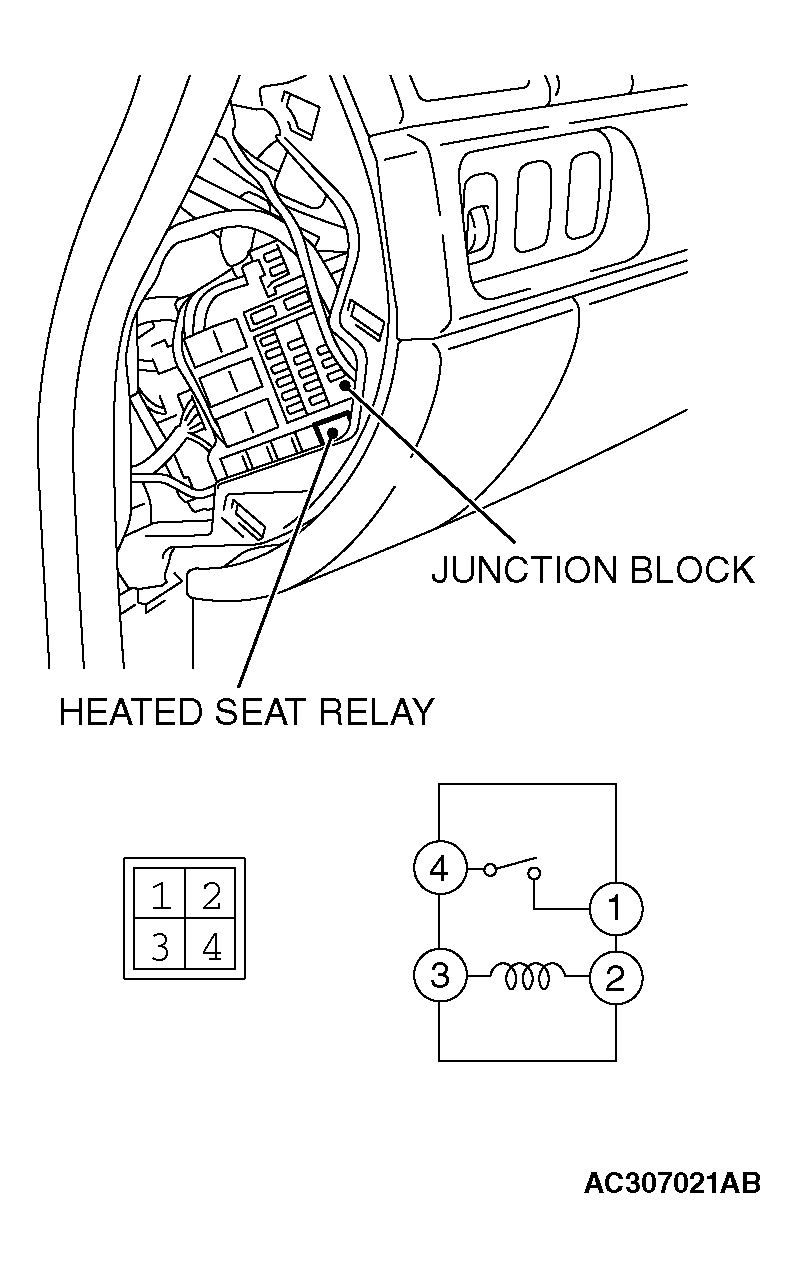

    Fig 1: Checking Heated Seat Relay Continuity
    G04255833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
