INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL does not Cancelled.: Notes

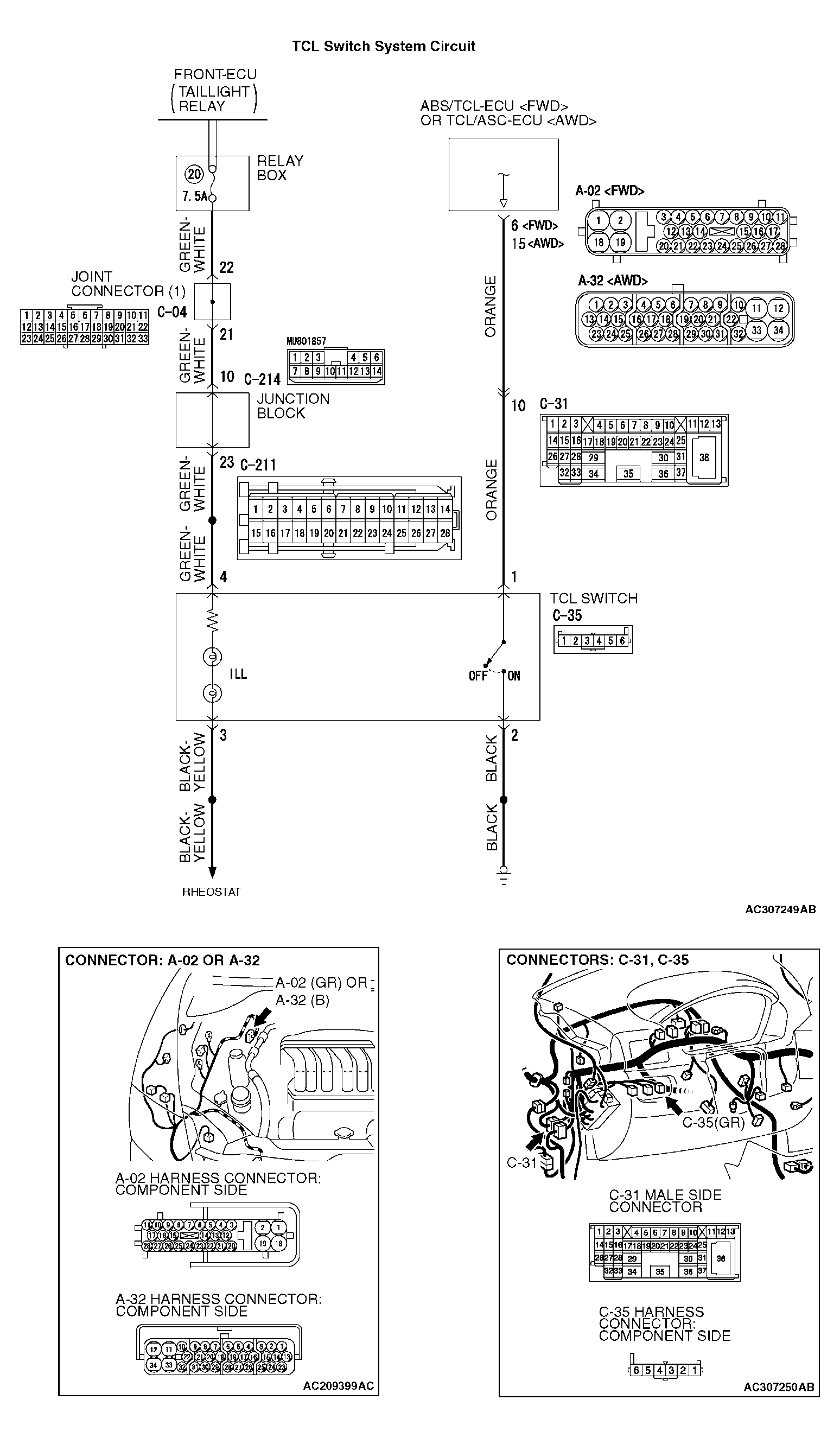

Fig 1: TCL Switch System Circuit Diagram

G04282528

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
