Removal And Installation < 6M/T >: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

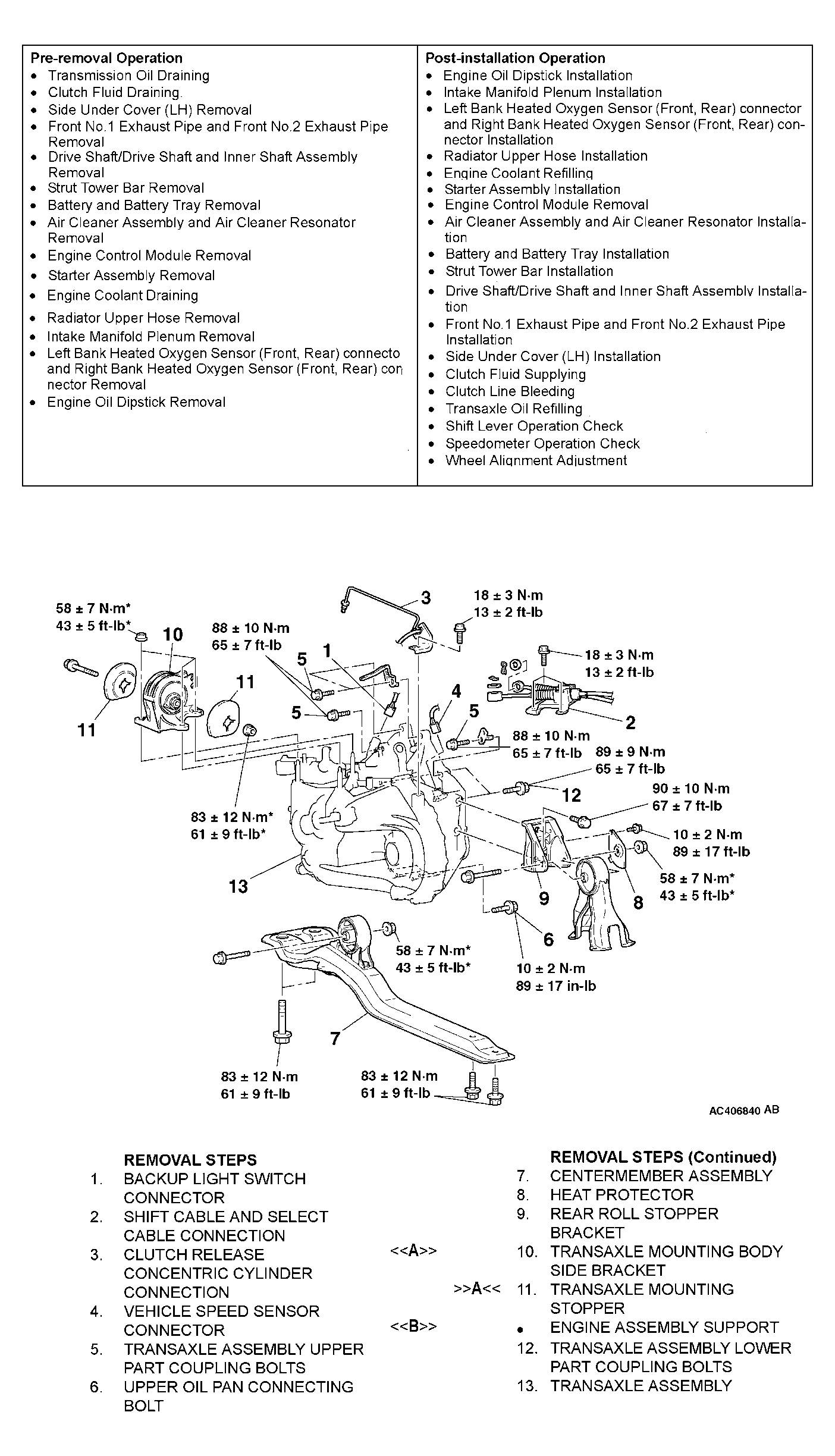

Fig 1: Removing/Installing Manual Transaxle With Torque Specifications (6M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991928: Engine Hanger
Slide bracket (HI)
MB991931: Joint (140)
MB991932: Foot (standard)
MB992012: Engine Hanger Plate A
MB992013: Engine Hanger Plate B
