SRS-Ecu Memory Check: SRS-Ecu

  1. Check the SRS-ECU case for dents, cracks or deformation.
  2. Check the connector for damage, and the terminals for deformation.
  3. Check the installation of the SRS-ECU.

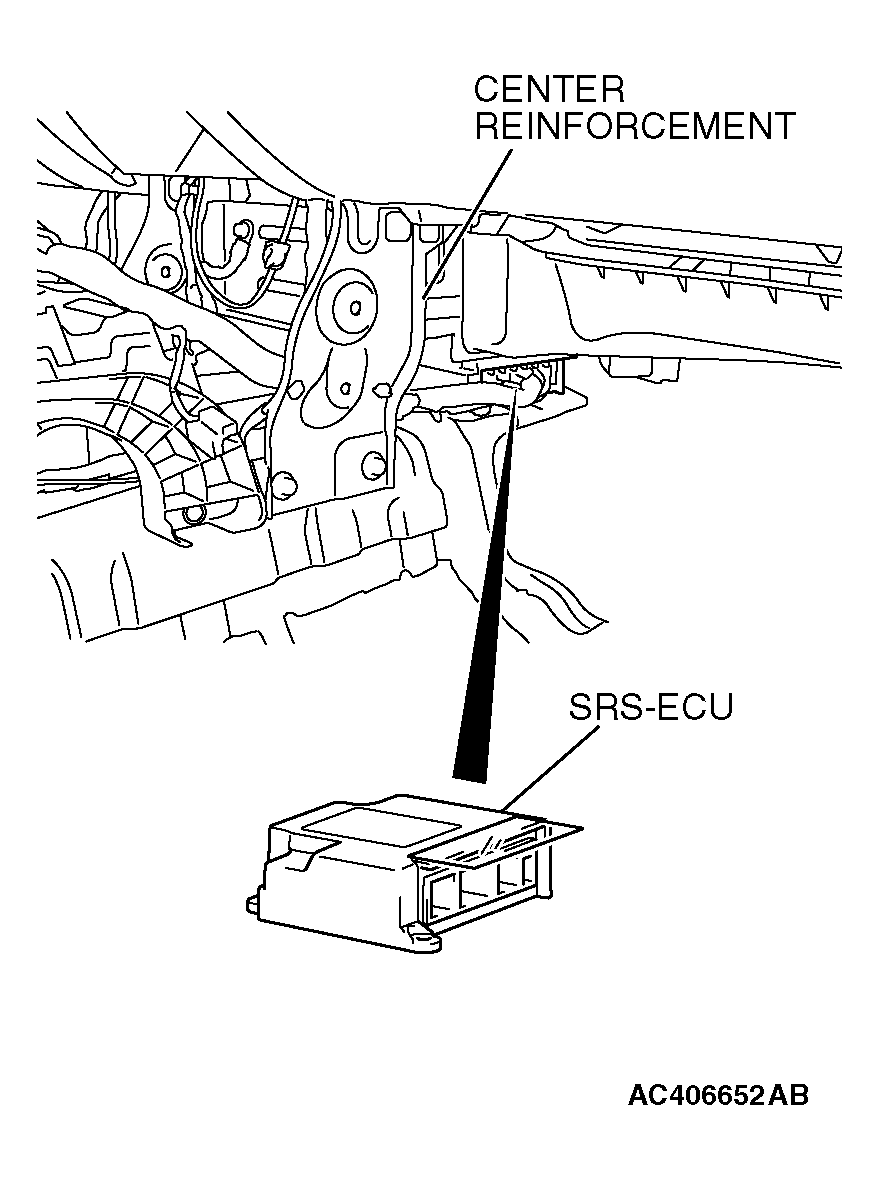

    Fig 1: Identifying SRS-ECU Location
    G04238564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
