Alignment Of Liftgate Latch And Liftgate Striker

Remove the rear end trim (Refer to, TRIMS ). Then, loosen the liftgate latch mounting bolts and adjust the liftgate latch.

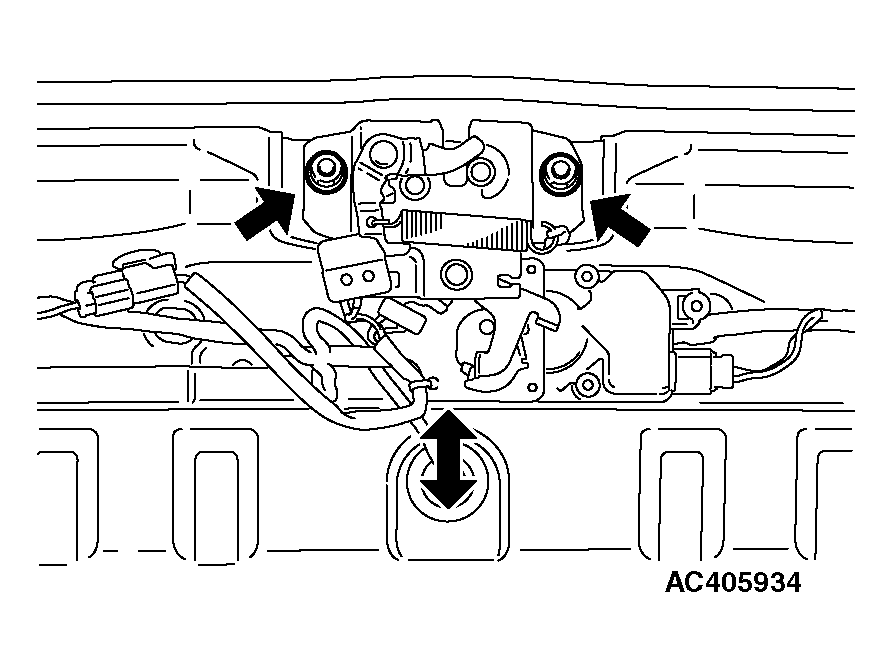

Fig 1: Loosening Liftgate Latch Mounting Bolts
G04237621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
