Removal And Installation: Notes

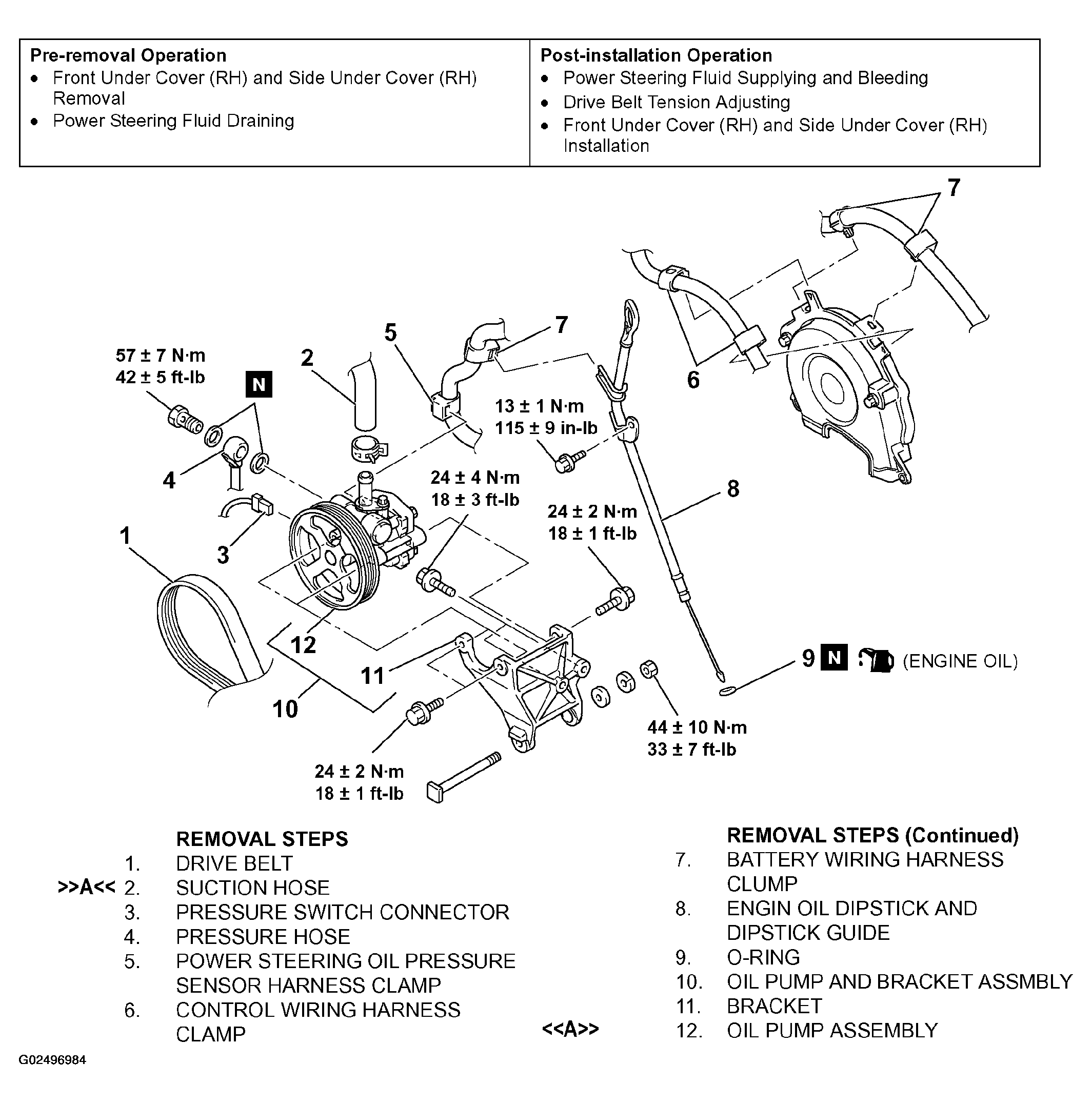

Fig 1: Removing/Installing Power Steering Oil Pump Assembly

G02496984

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
