Auto-Cruise Control System Diagnosis
>>
Symptom Chart
Symptom Chart

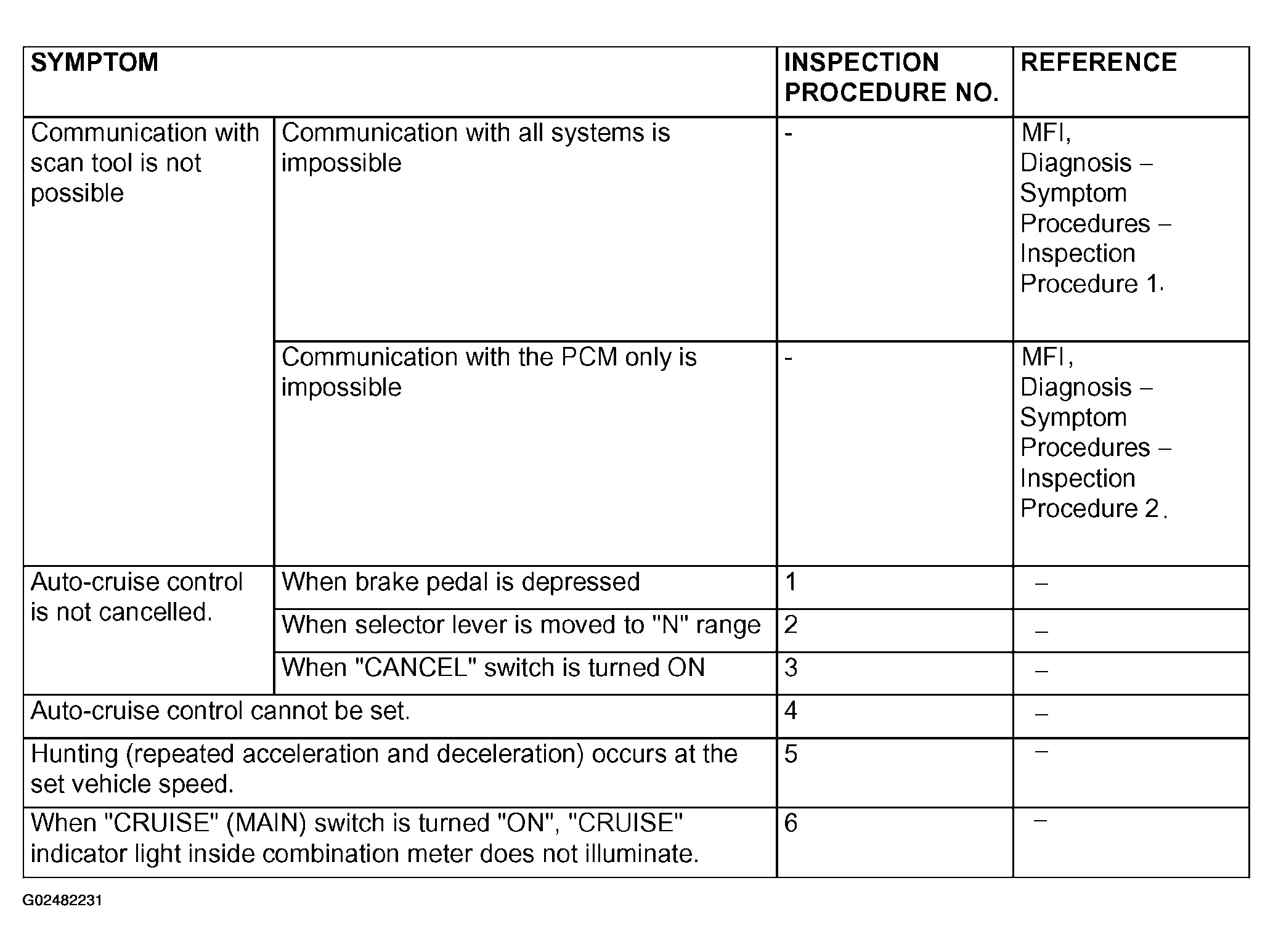

Fig 1: Auto-Cruise Control Symptom Diagnosis Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
