DTC 22: Stoplight Switch System: Notes

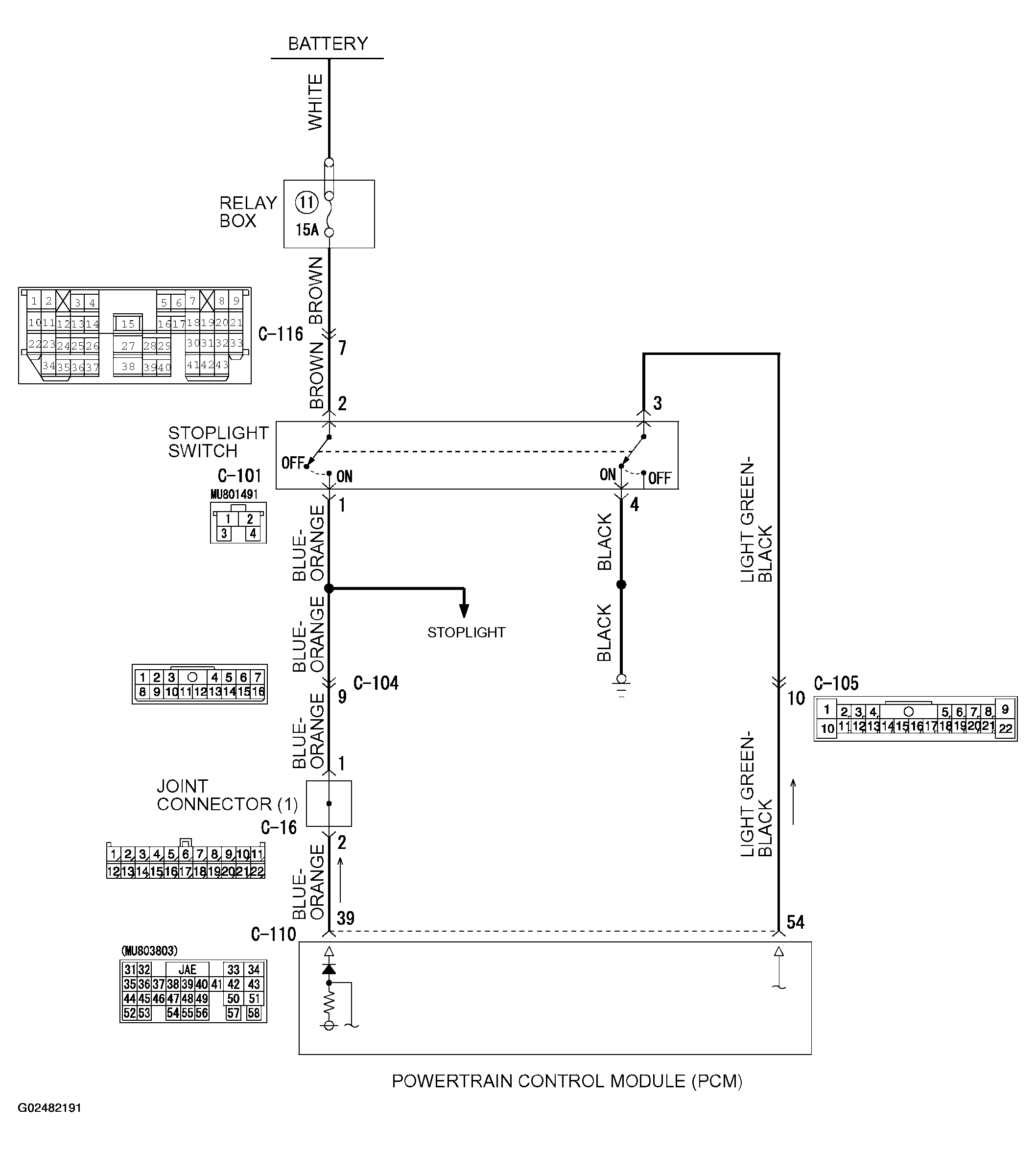

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
G02482191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

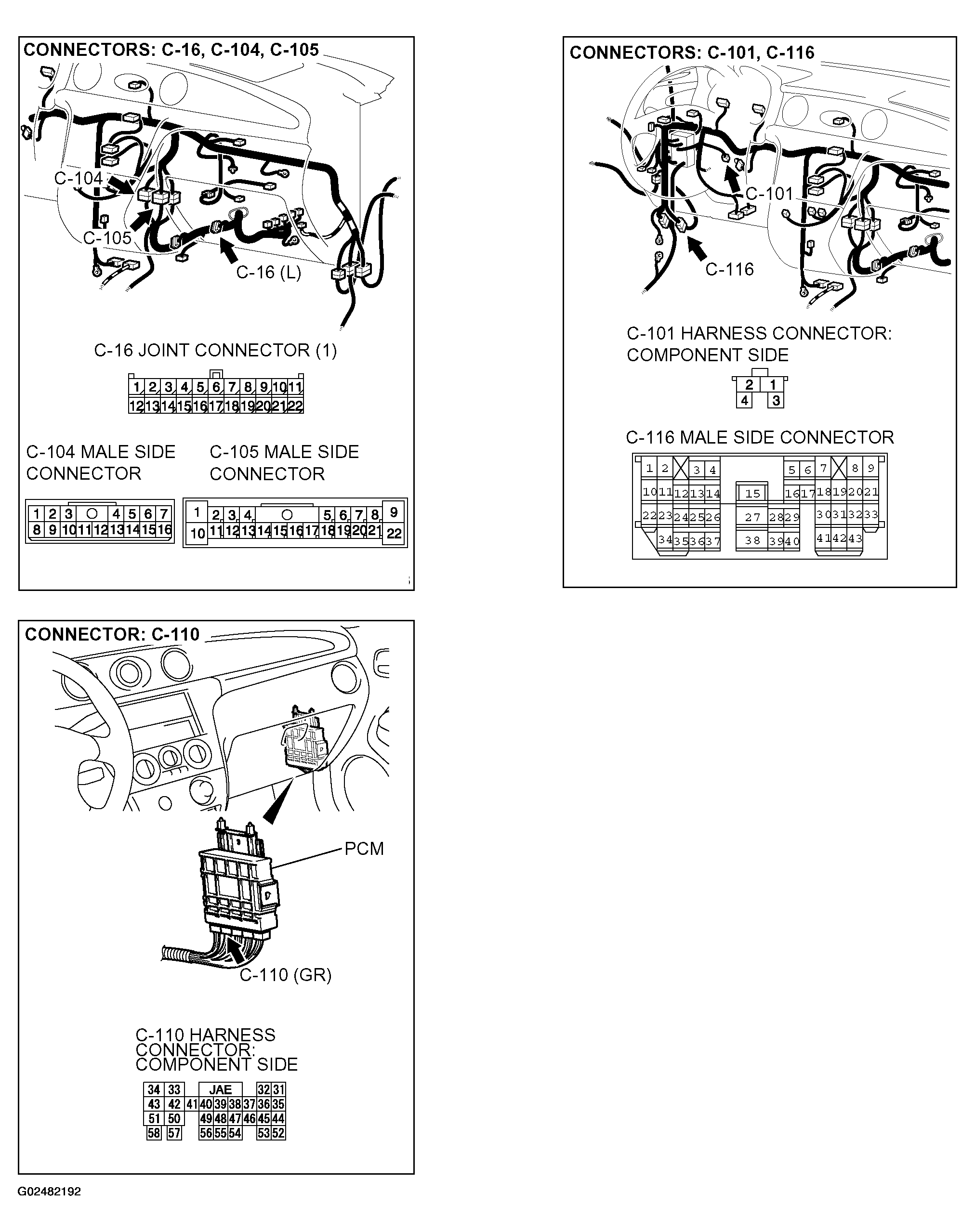

Fig 2: Stoplight Switch System Circuit Diagram (2 Of 2)
G02482192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
