General Circuit Diagram For The Keyless Entry System

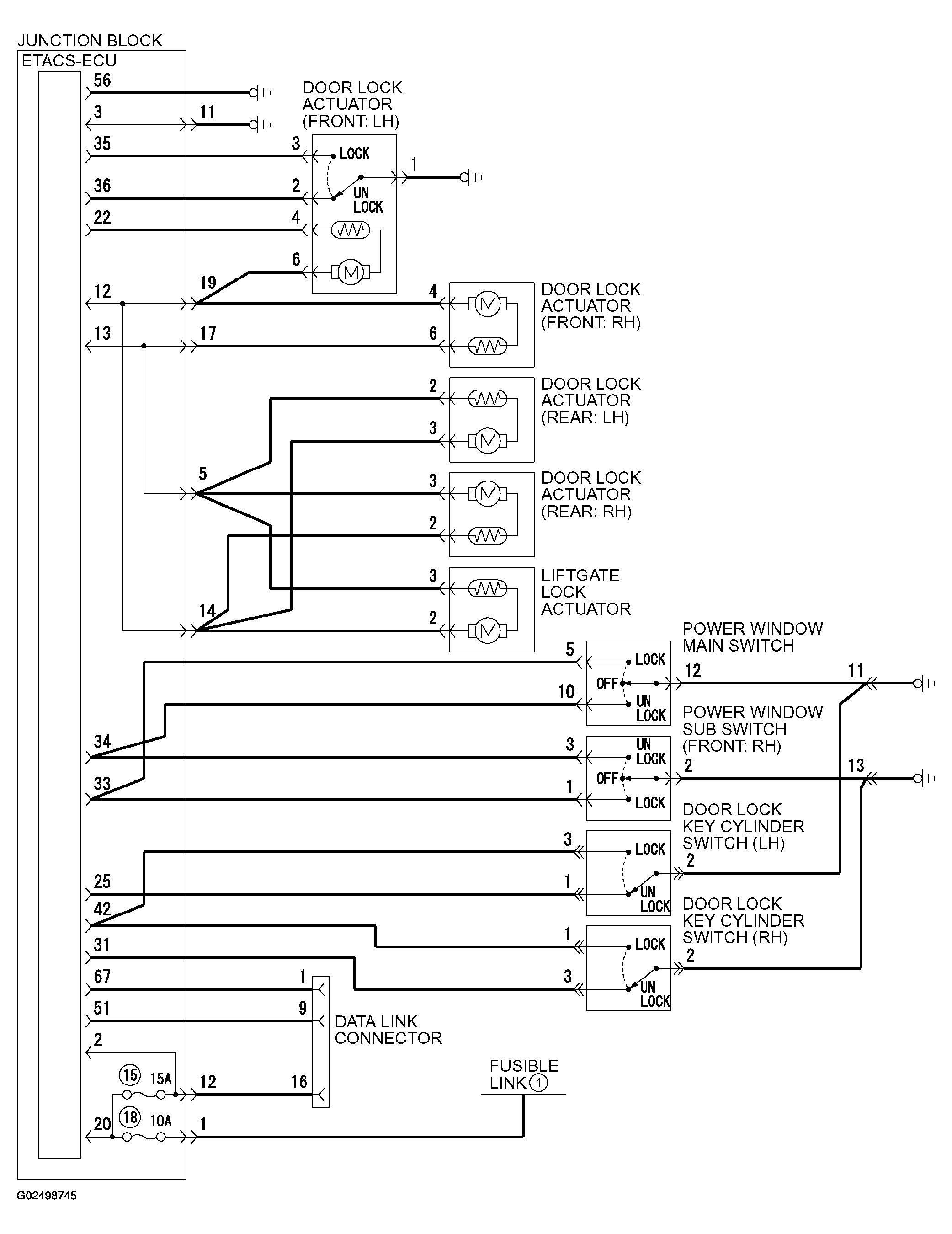

Fig 1: Keyless Entry System General Circuit Diagram (1 Of 2)
G02498745Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

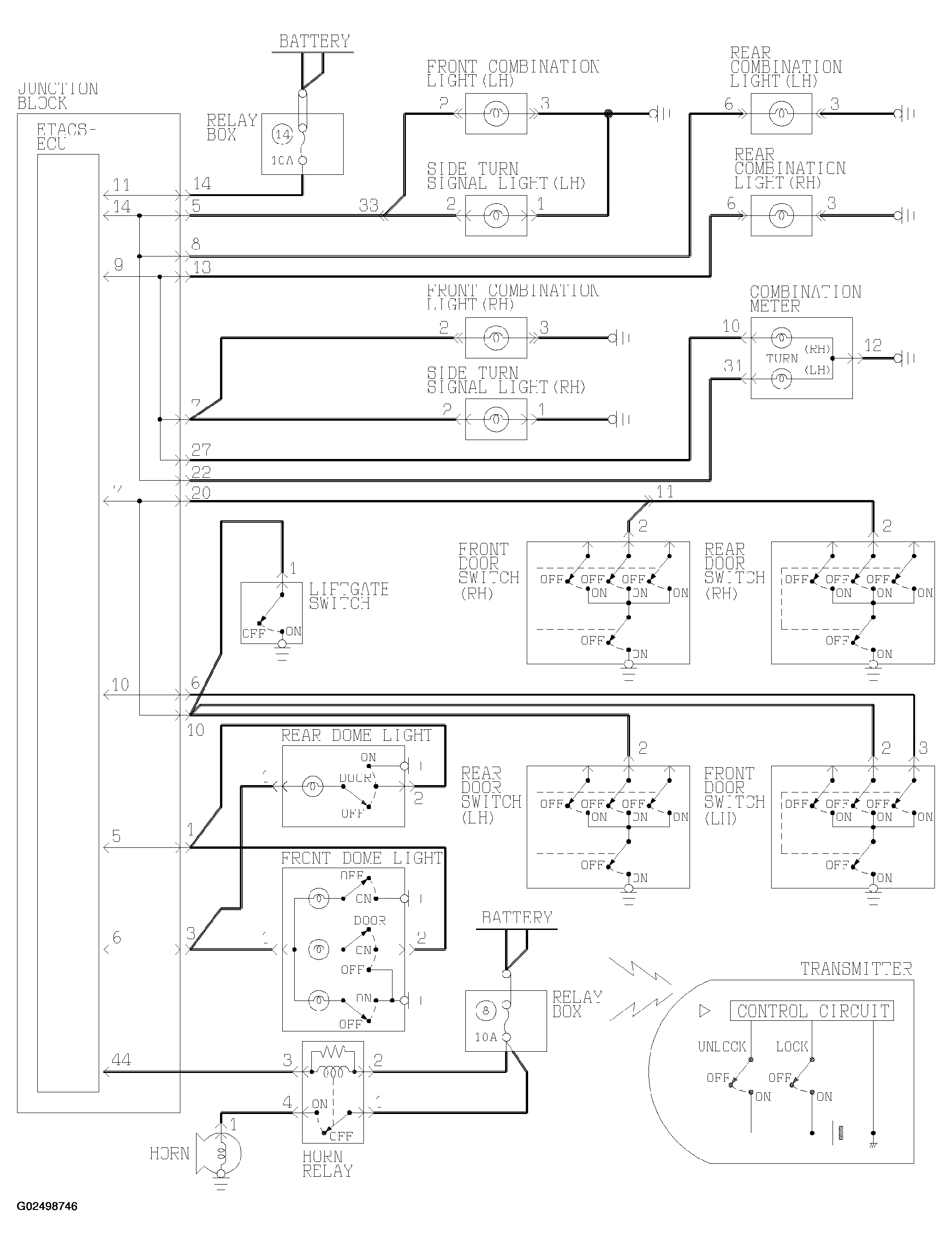

Fig 2: Keyless Entry System General Circuit Diagram (2 Of 2)
G02498746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
