Service Specifications

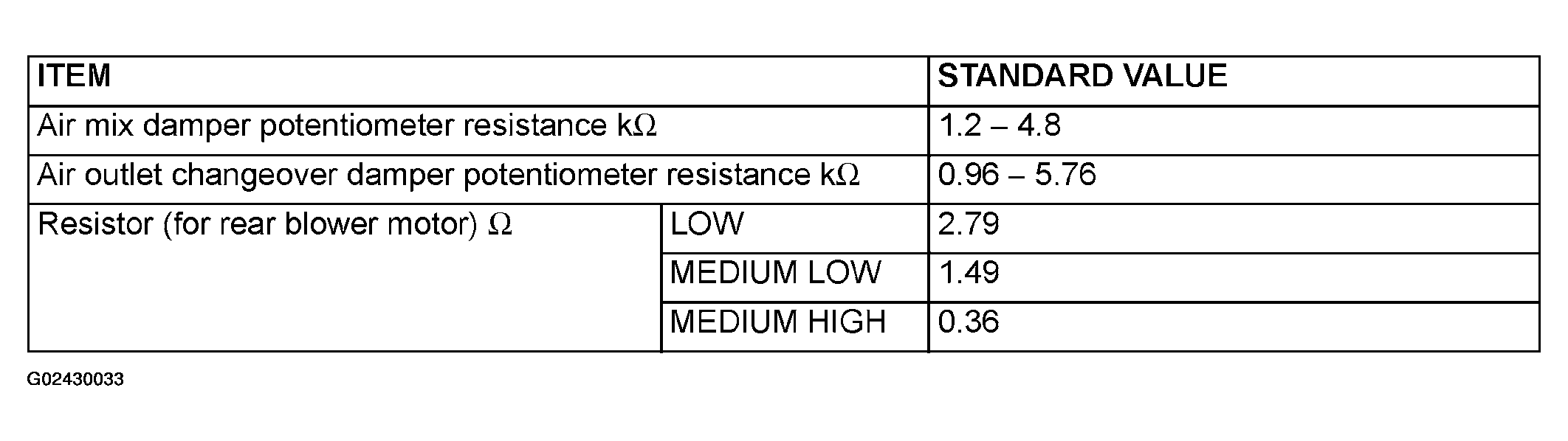

Fig 1: Service Specifications Chart
G02430033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
