Home >> Mitsubishi >> 2005 >> Montero >> Repair and Diagnosis (Single Page) >> Body & Frame >> Ignition Switch/Steering Lock >> Chassis Electrical >> Combination Meter Assembly And Vehicle Speed Sensor >> Symptom Procedures >> INSPECTION PROCEDURE 5: Combination Meter does not Work. >> Notes

INSPECTION PROCEDURE 5: Combination Meter does not Work.: Notes

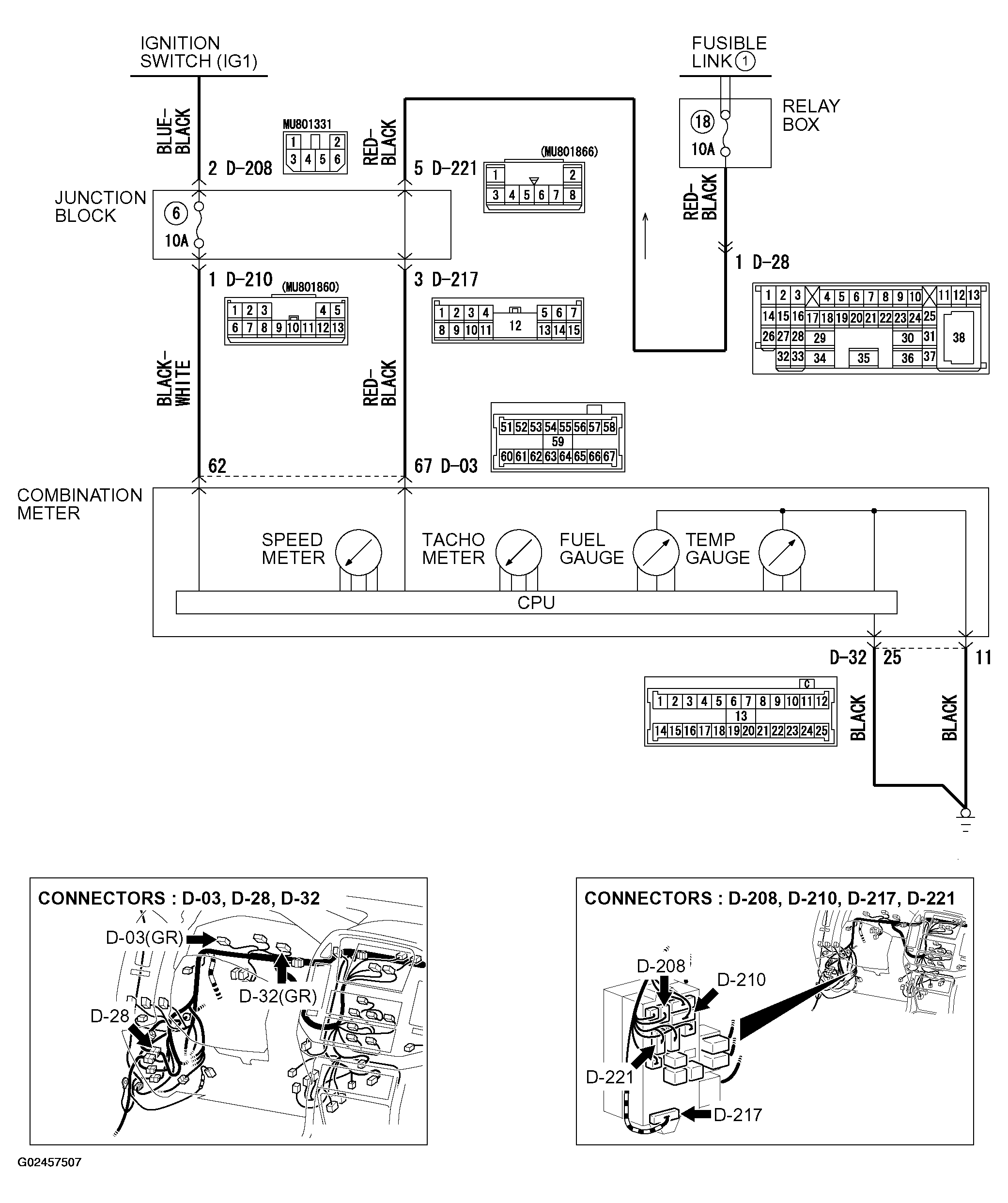

Fig 1: Combination Meter Power Supply Circuit Diagram

G02457507

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
