G-Sensor (Longitudinal)/G-Sensor (Lateral)

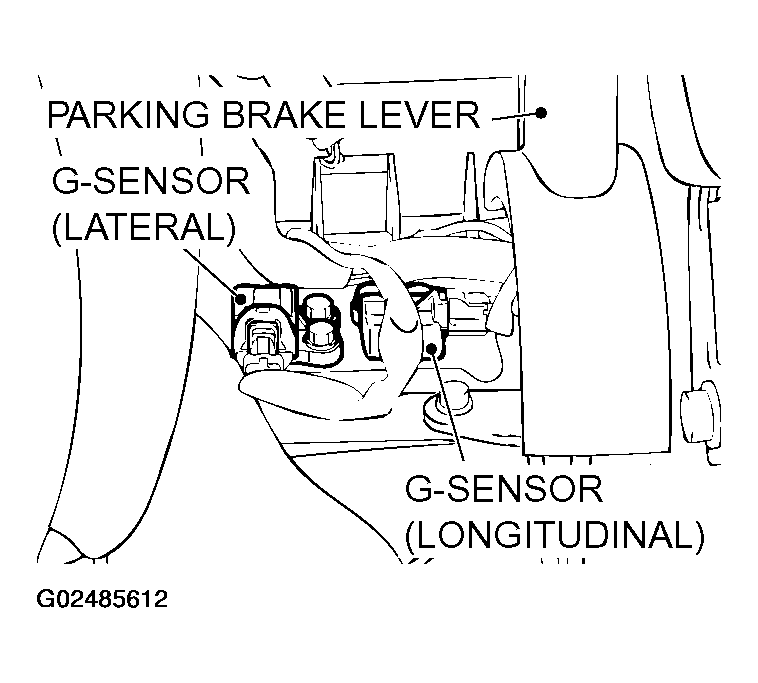

Fig 1: Identifying G-Sensor (Longitudinal)/G-Sensor (Lateral)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The G-sensors (longitudinal) are sensors detecting the acceleration in the longitudinal directions of the vehicle, and are basically the same as those used conventionally. The G-sensor (lateral) is used for detecting the acceleration along the sides of the vehicle by changing the installing direction by 90°. The same sensor as the G-sensor (longitudinal) is used.

G-SENSOR OUTPUT CHARACTERSTICS

Fig 2: G-Sensor Output Characterstics

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
