< W5M51>

CAUTION:

If the Brembo brake caliper is used, be careful not to damage the caliper with parts and tools when servicing because the paint of the caliper may delaminate.
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

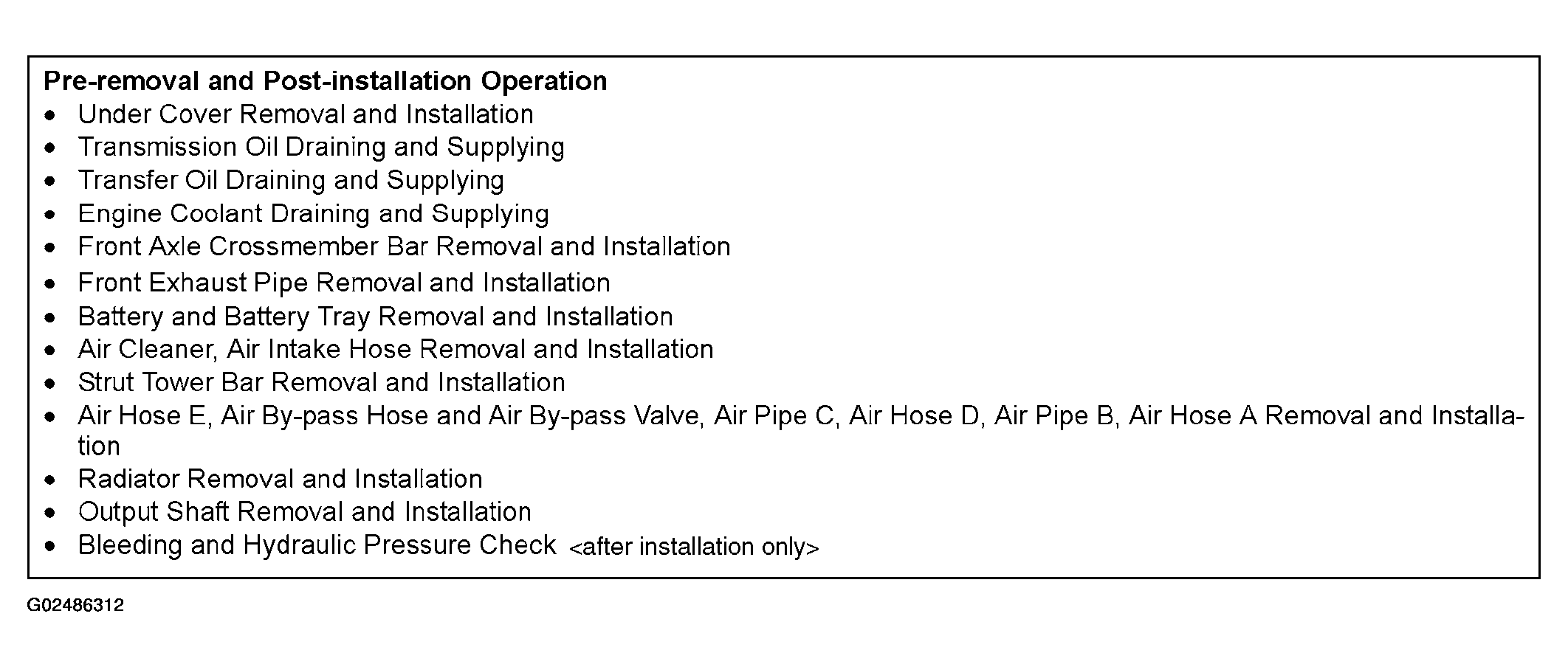

Fig 1: Identifying Preremoval And Post Installation Operation Chart - Transfer Assembly (W5M51)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

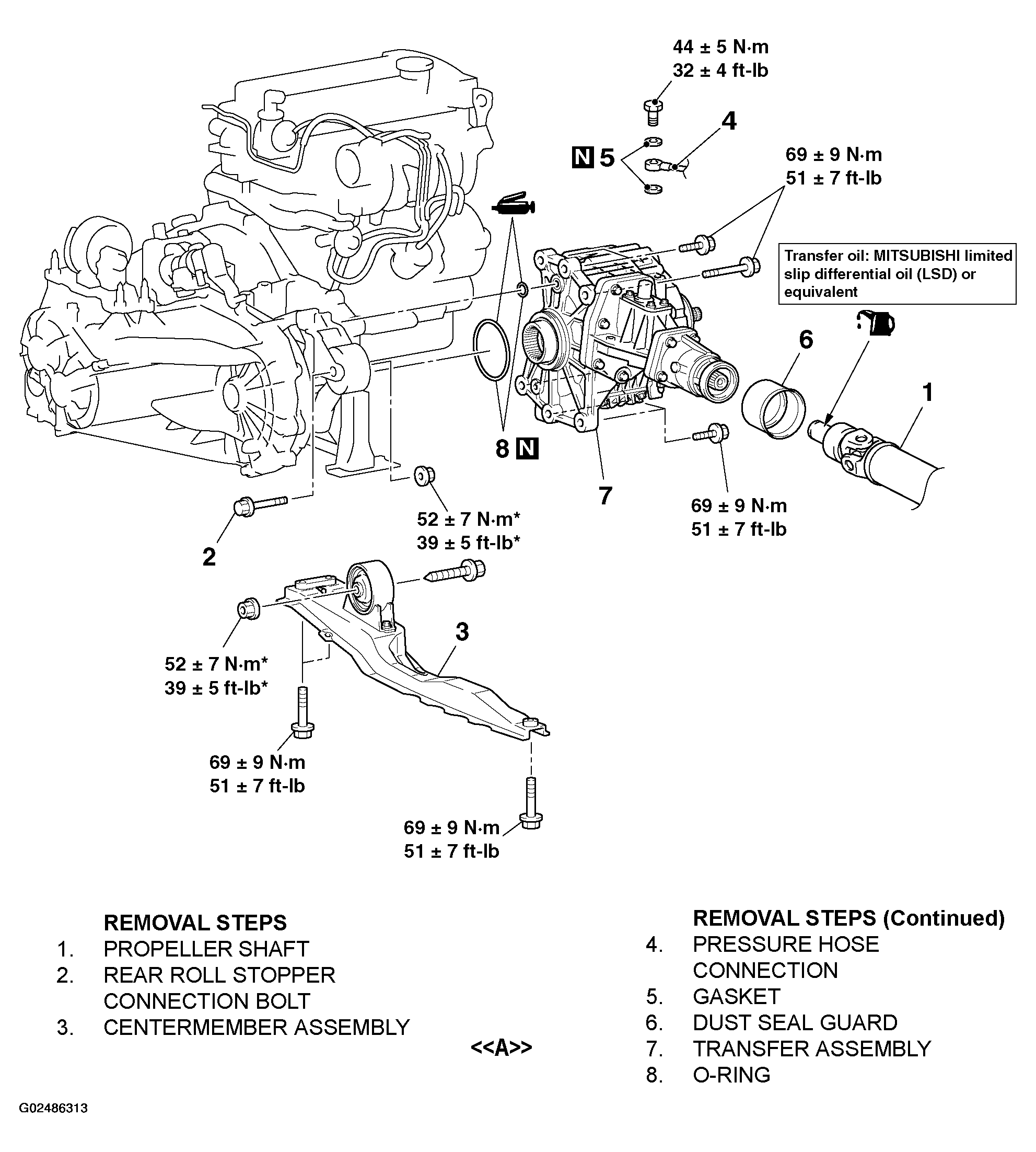

Fig 2: Removing/Installing Transfer Assembly (W5M51)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
