On-Vehicle Service - Evolution
>>
Transaxle Control
>>
Removal And Installation
>>
< W5M51>
< W5M51>
WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

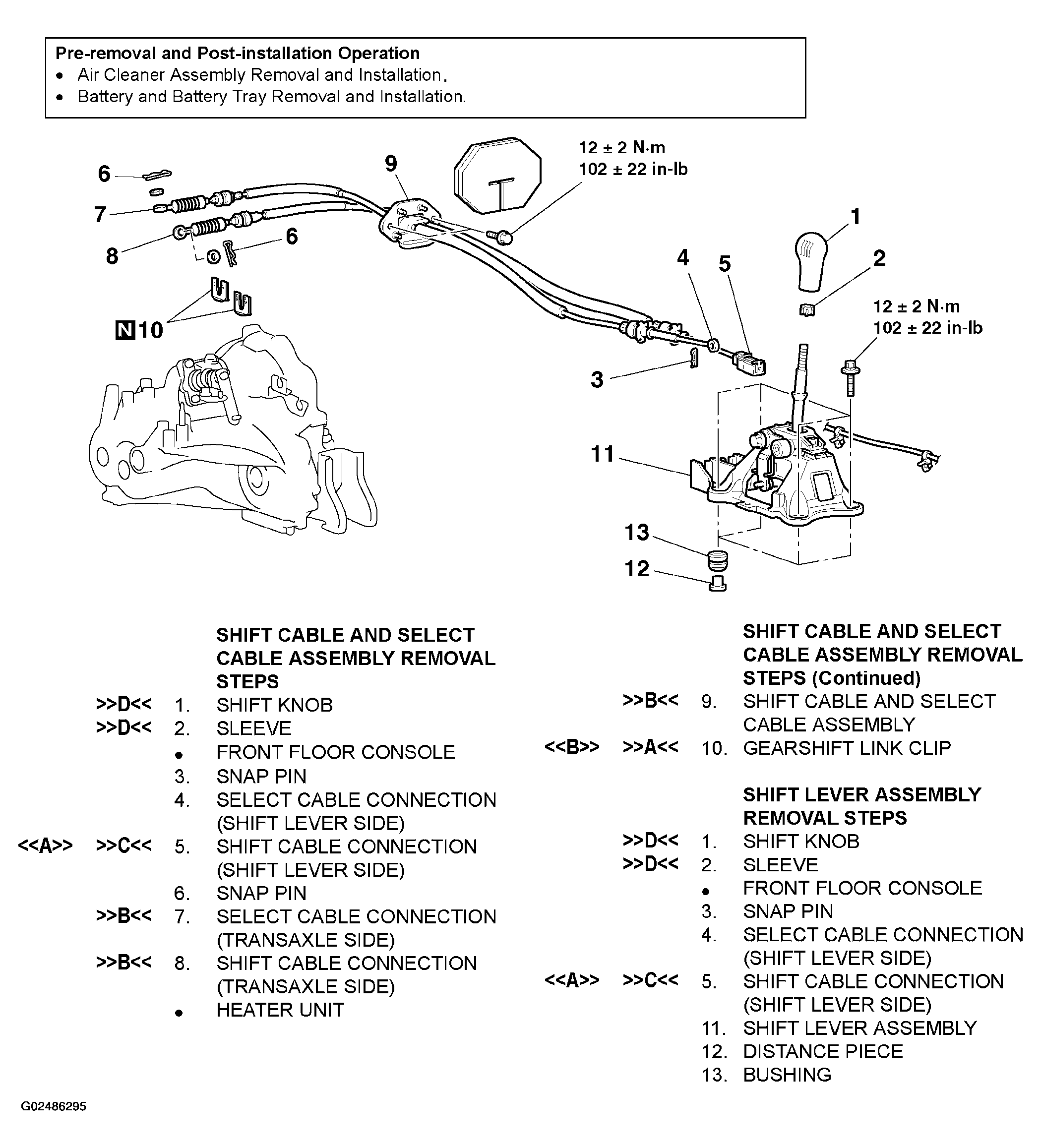

Fig 1: Removing/Installing Transaxle Control - (W5M51)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
