< W5M51>

CAUTION:
  1. *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.
  2. If the Brembo brake caliper is used, be careful not to damage the caliper with parts and tools when servicing because the paint of the caliper may delaminate.

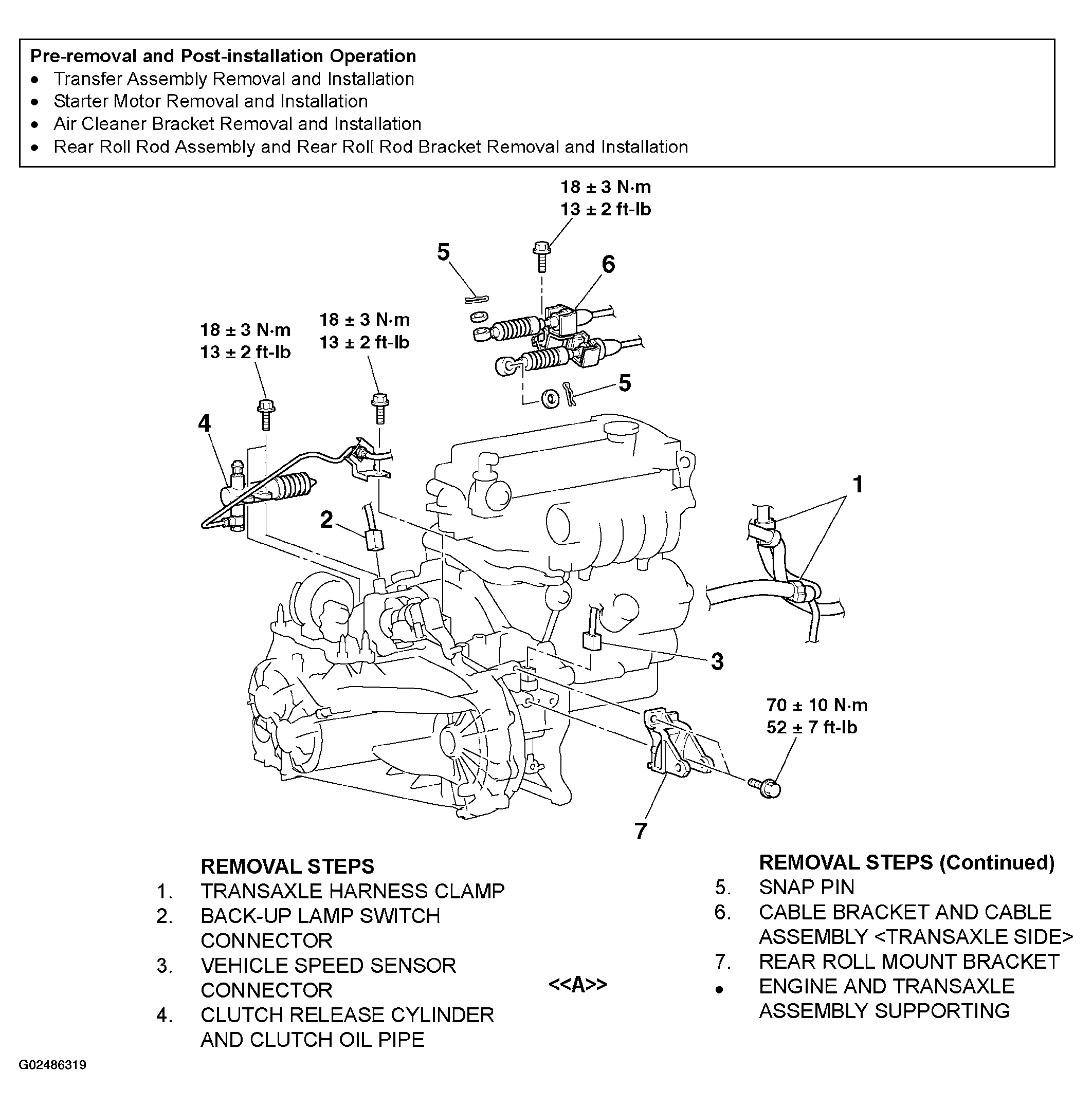

Fig 1: Removing/Installing Transaxle Assembly - (W5M51) (1 Of 2)
G02486319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

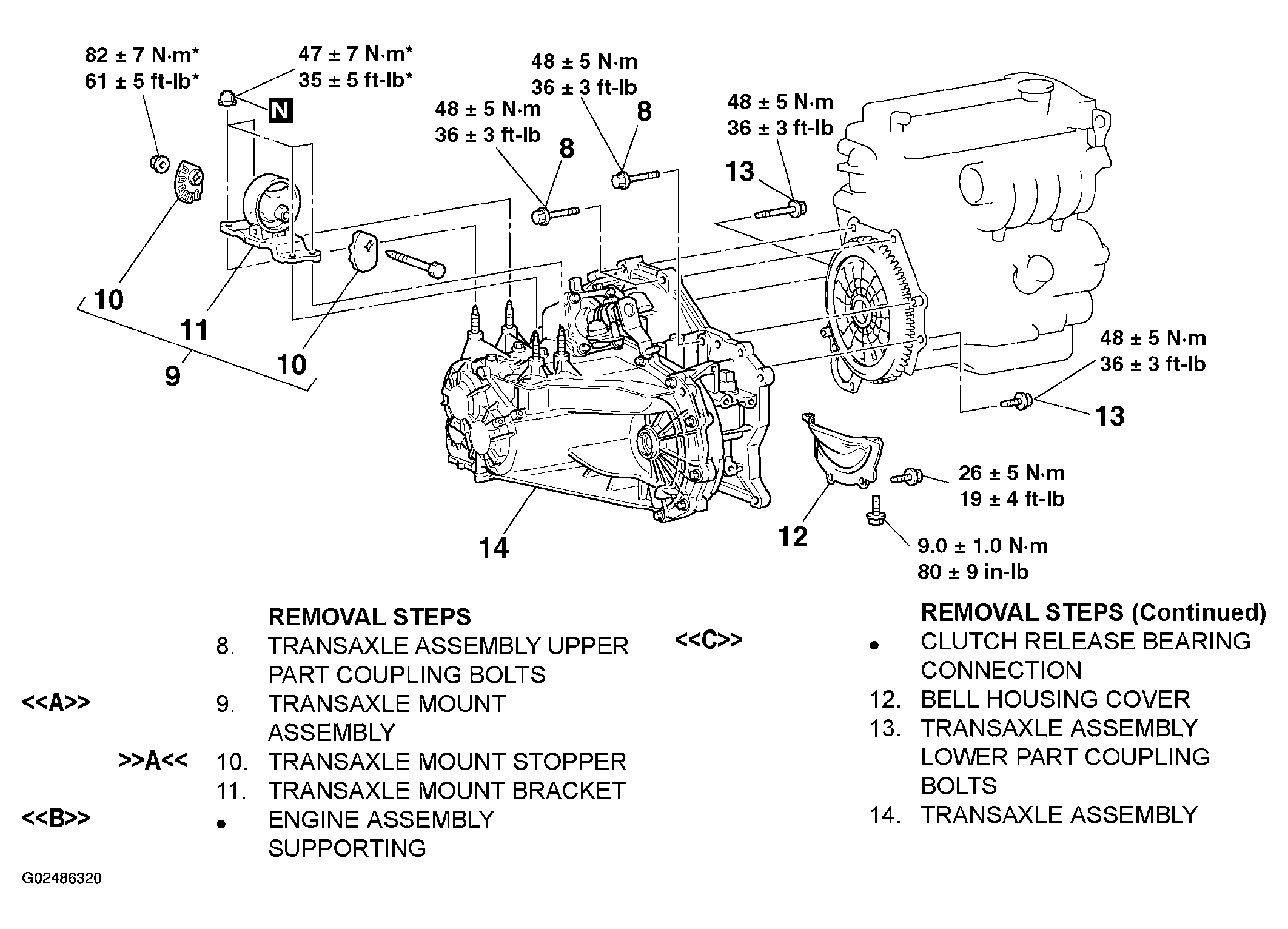

Fig 2: Removing/Installing Transaxle Assembly - (W5M51) (2 Of 2)
G02486320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
