Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior -- Evolution >> Instrument Panel Assembly >> Removal And Installation >> Clip And Claw Position

Clip And Claw Position

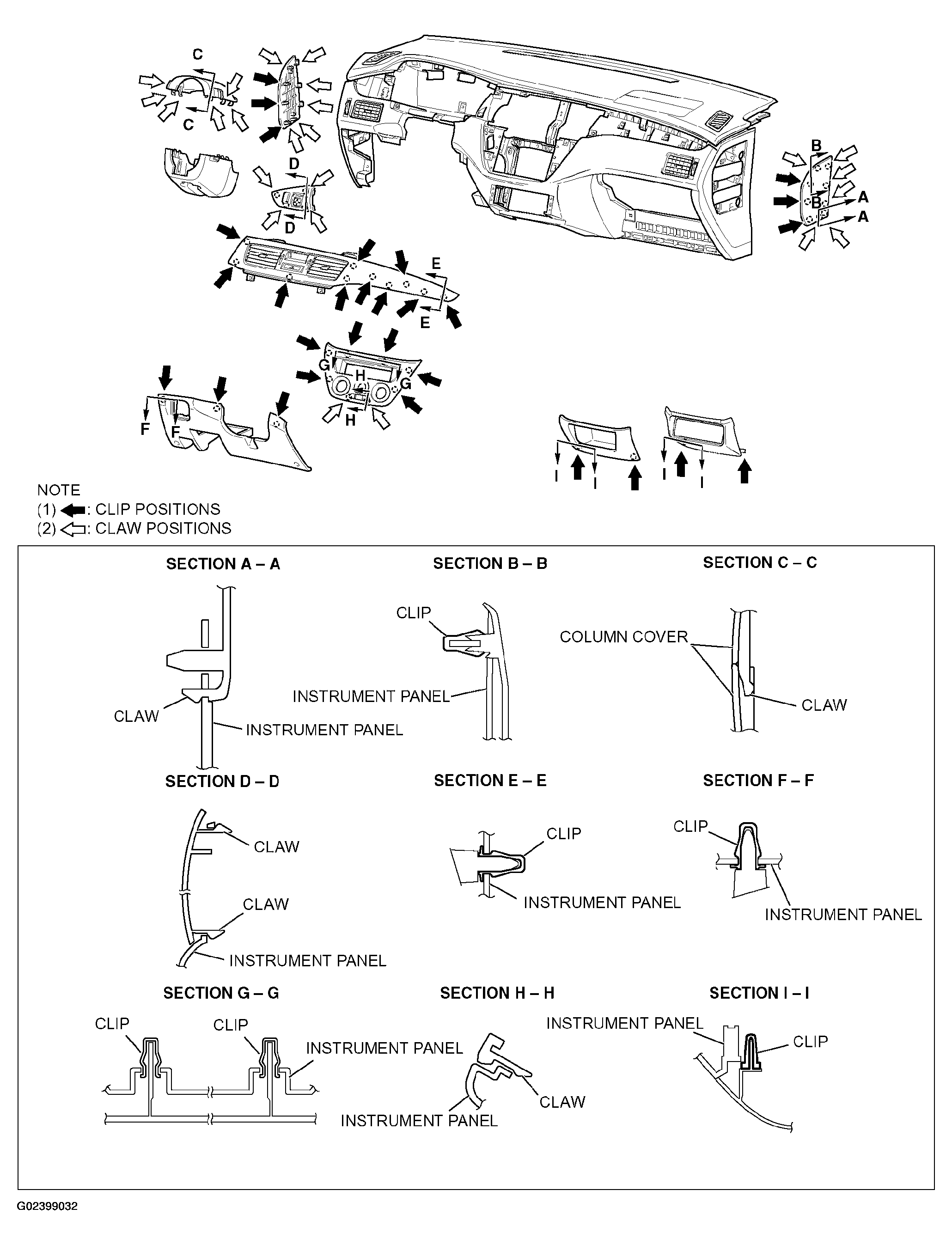

Fig 1: Identifying Clip And Claw Position

G02399032

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
