Section 6 (On-Vehicle Service (2.0L) -- Except Evolution)
>>
Timing Belt
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

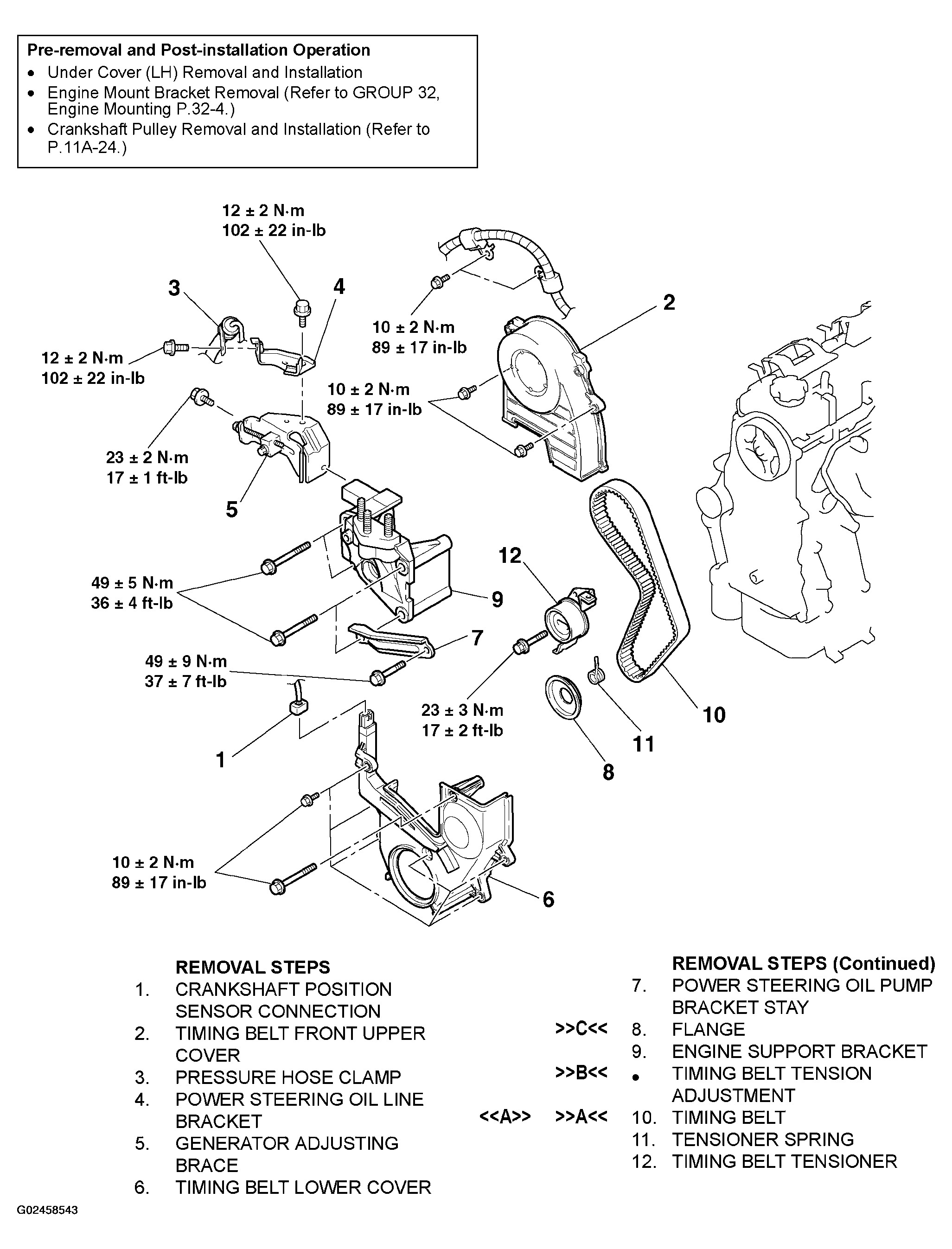

Fig 1: Removing /Installing Timing Belt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
