Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

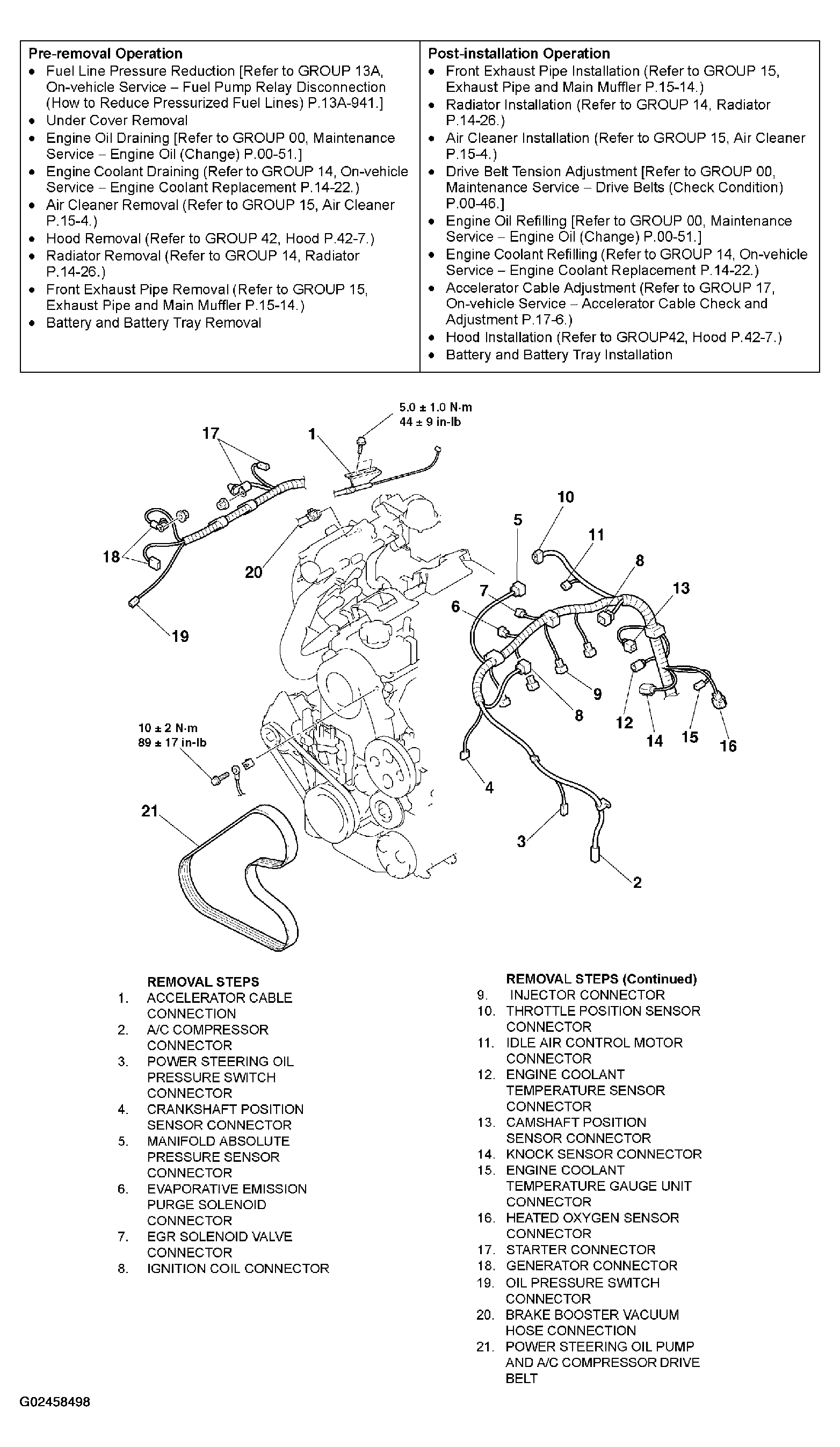

Fig 1: Removing /Installing Reference Chart
G02458498Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

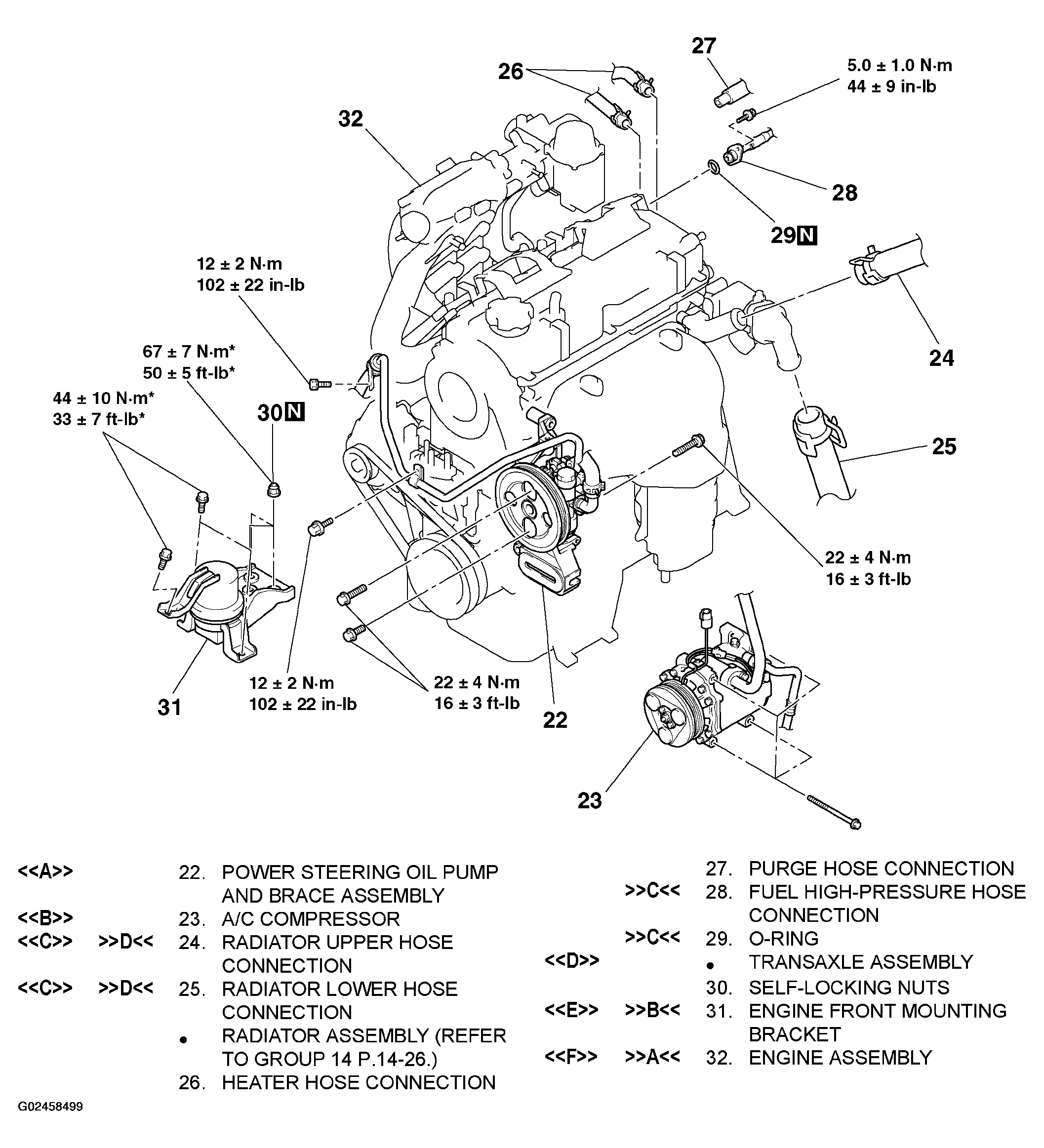

Fig 2: Exploded View Of Engine Assembly
G02458499Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
