INSPECTION PROCEDURE A-4: Communication With The Front-ECU Is Not Possible.: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR ."

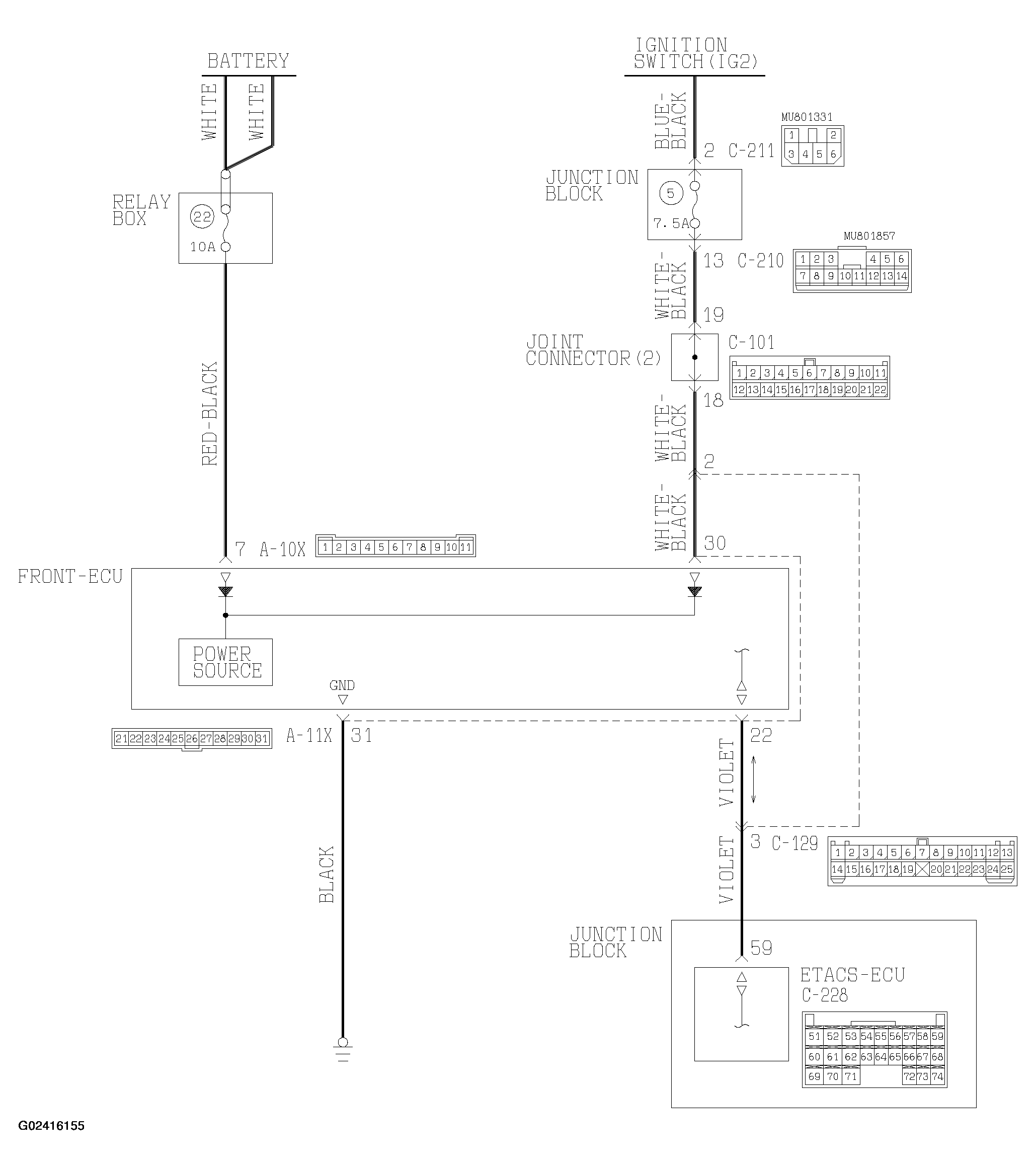

Fig 1: Front-ECU Power Supply And SWS Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

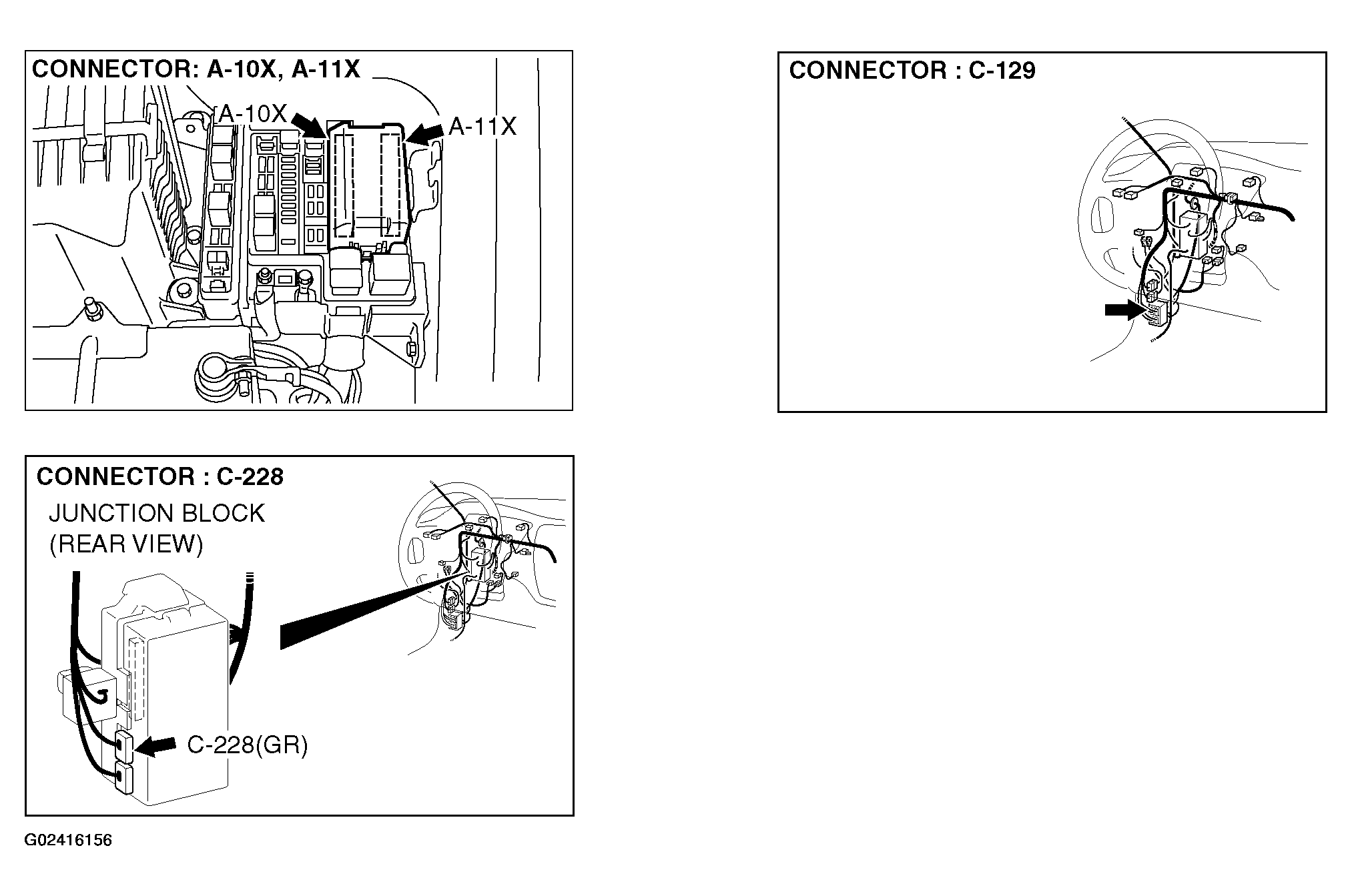

Fig 2: Identifying Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
