< Function System >

WARNING: This page is about a different variant/trim than selected.
NOTE: For inspection procedures shown in the following illustrations, refer to appropriate testing in SYMPTOM PROCEDURES .

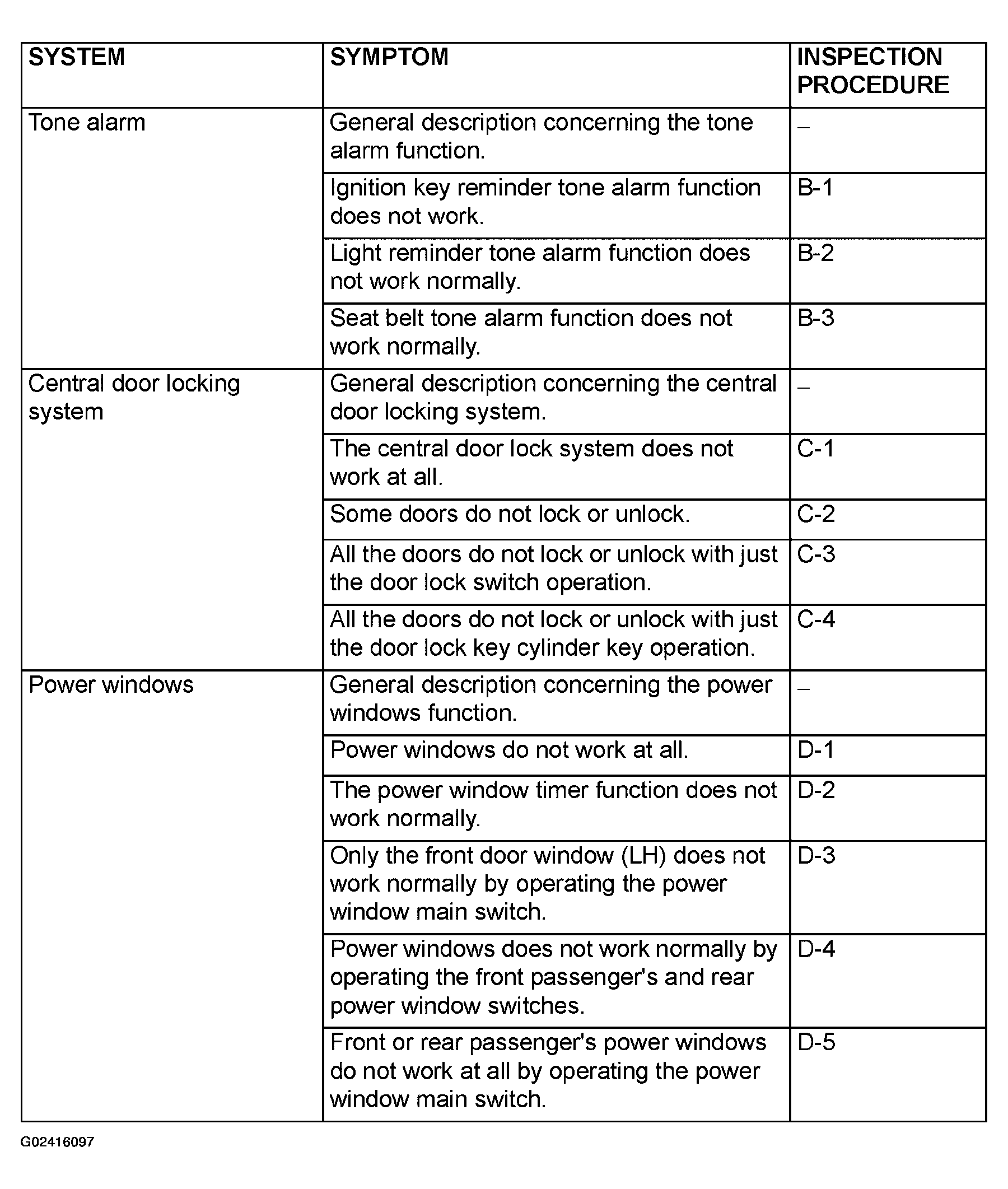

Fig 1: Problem Symptom Chart (1 Of 4)
G02416097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

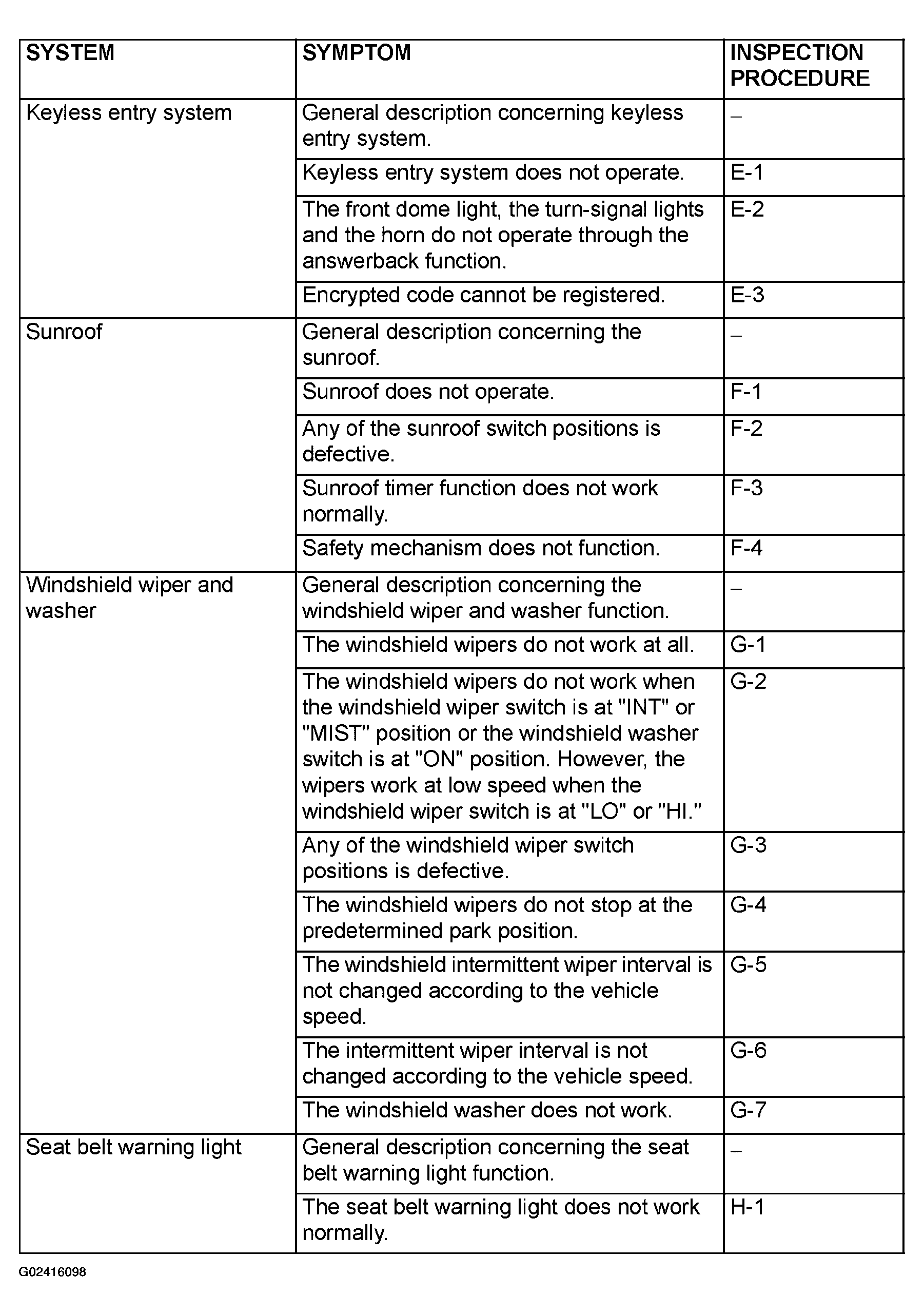

Fig 2: Problem Symptom Chart (2 Of 4)
G02416098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

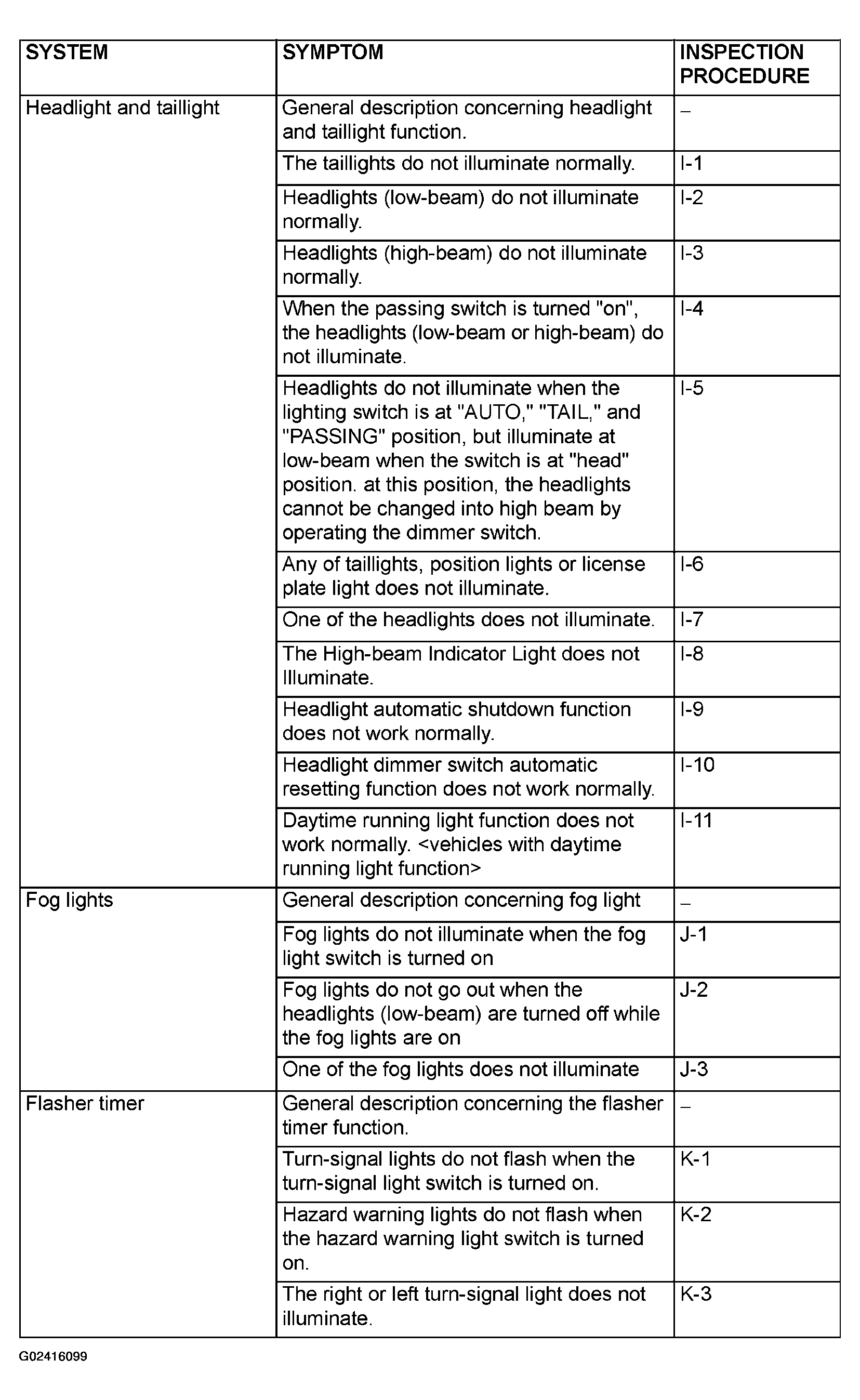

Fig 3: Problem Symptom Chart (3 Of 4)
G02416099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

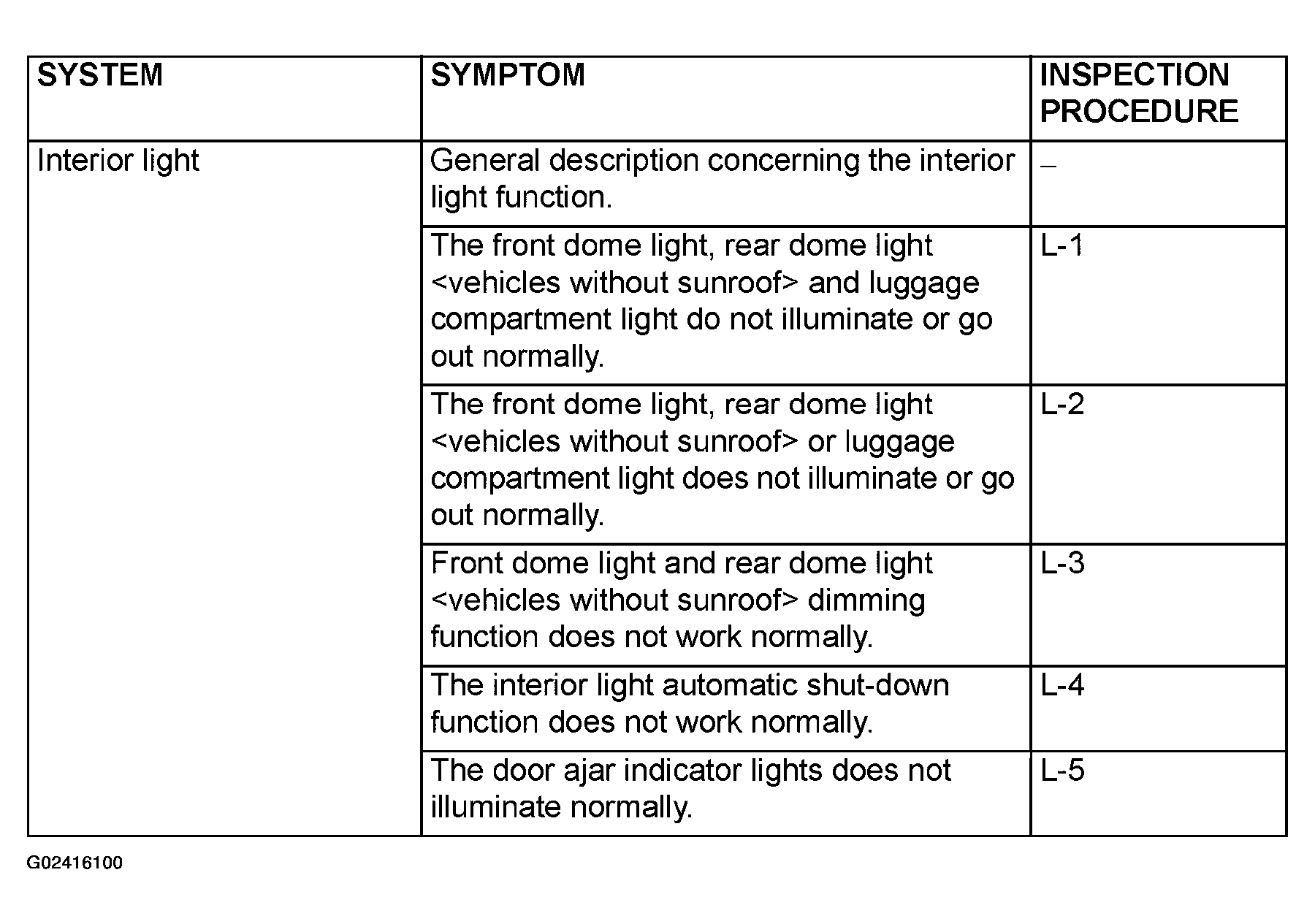

Fig 4: Problem Symptom Chart (4 Of 4)
G02416100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
