< Data List Reference Table >

WARNING: This page is about a different variant/trim than selected.

COLUMN ECU (column switch)

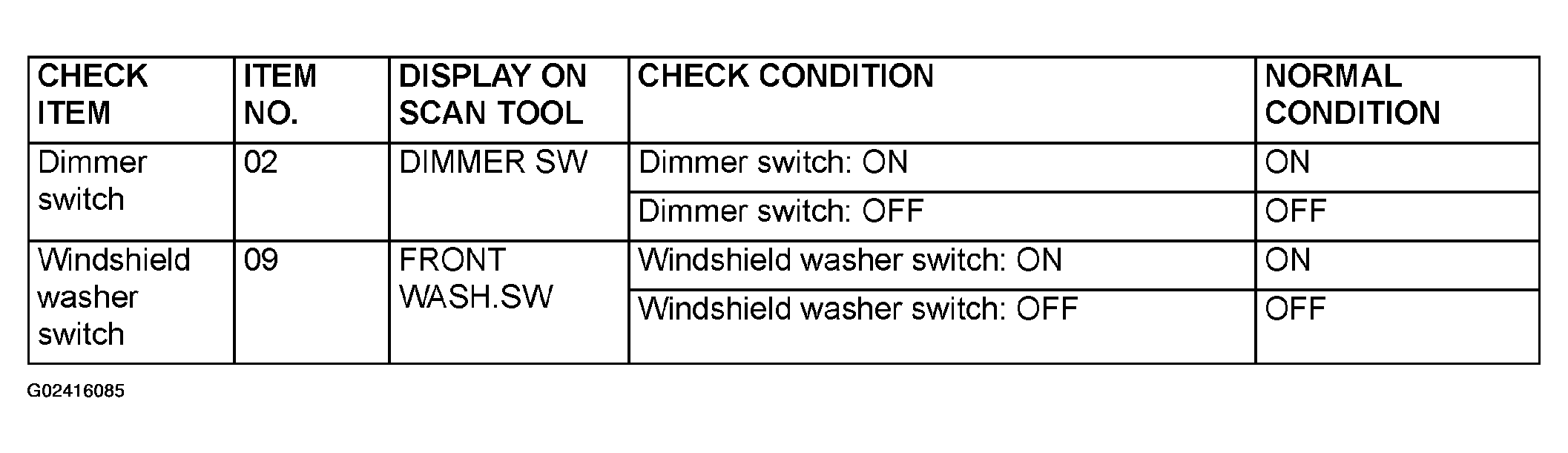

Fig 1: Data List Reference Chart - Column ECU (Column Switch) (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

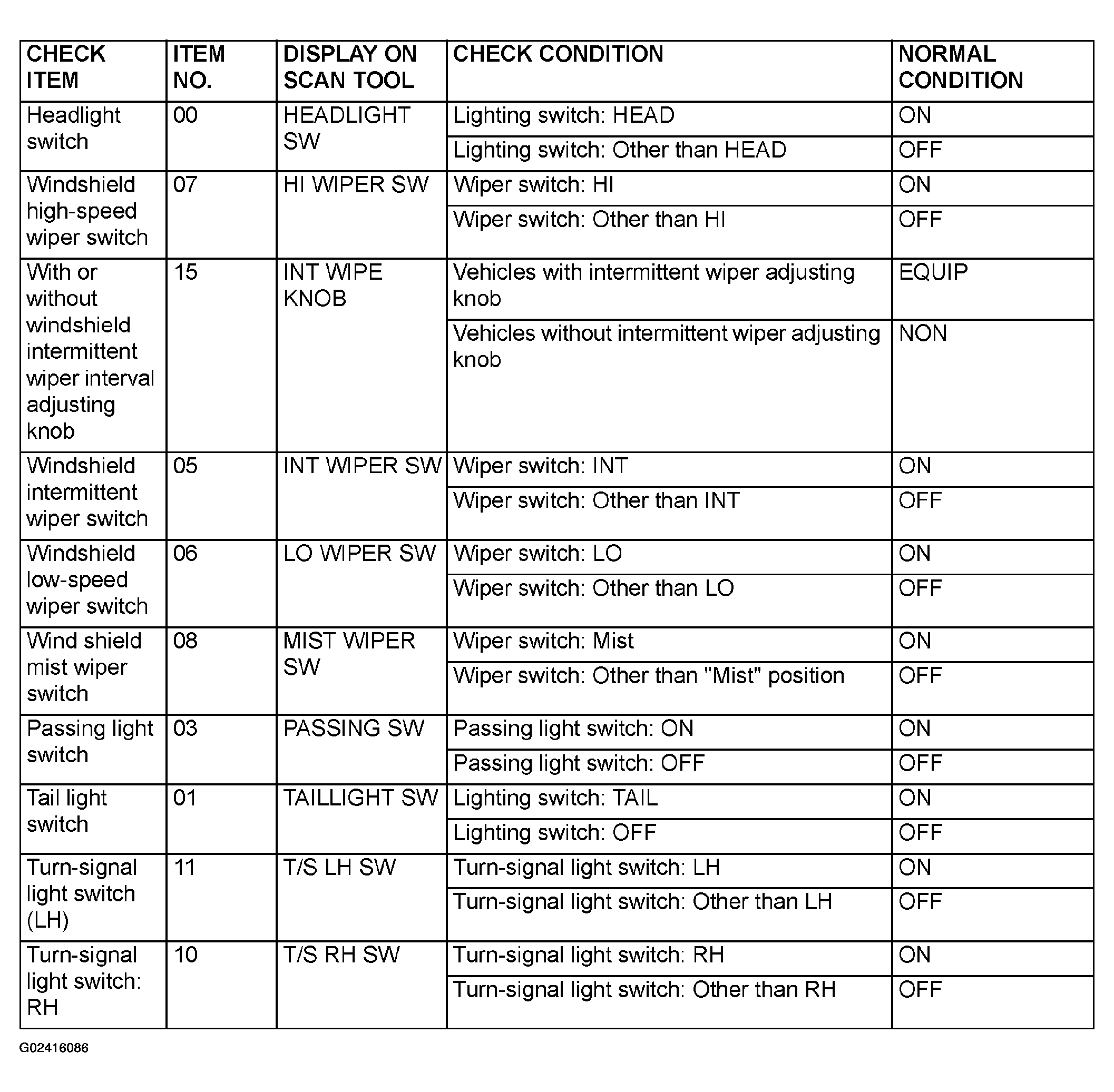

Fig 2: Data List Reference Chart - Column ECU (Column Switch) (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

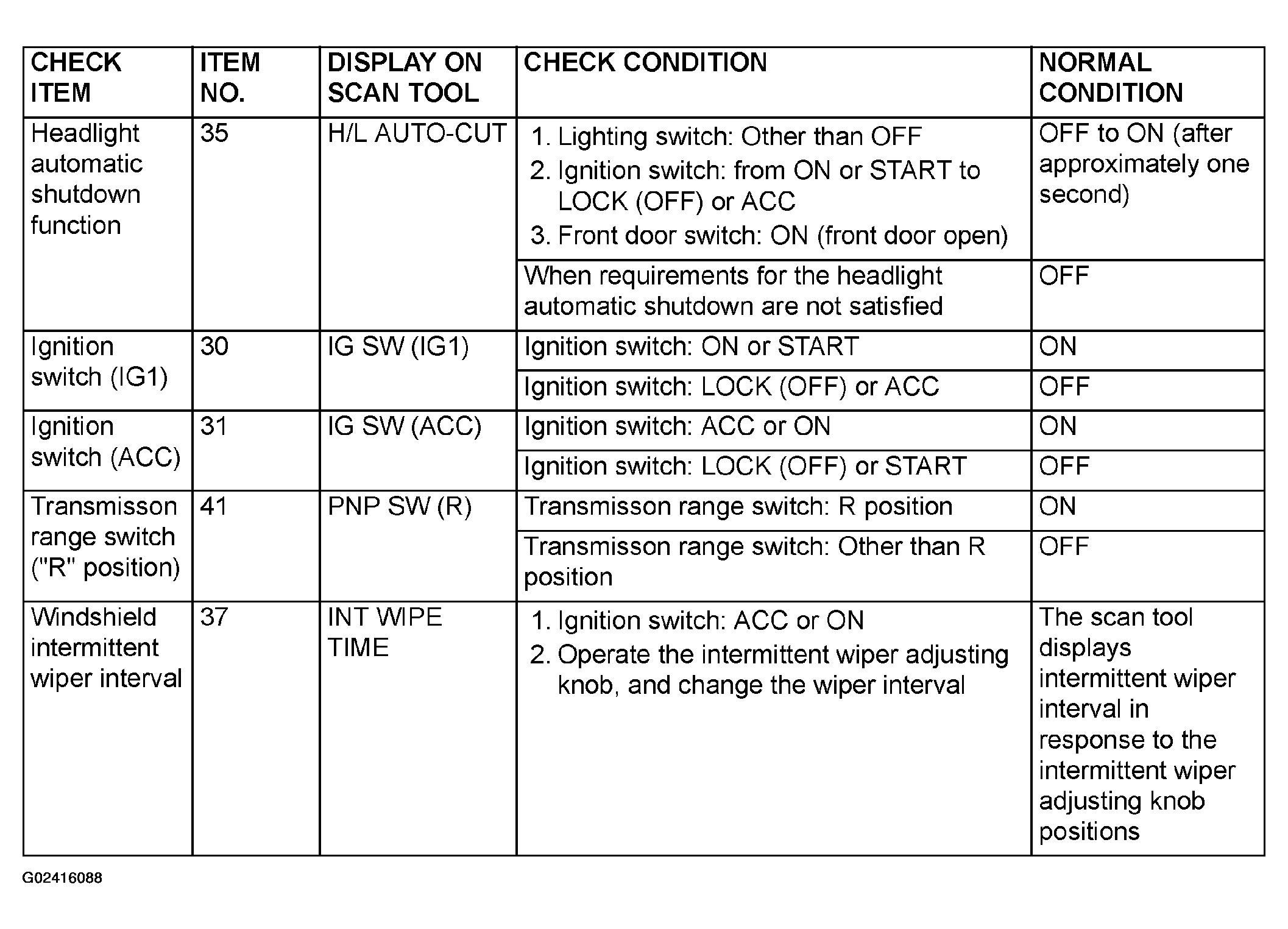

ETACS ECU

Fig 3: Data List Reference Chart - ETACS ECU (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Data List Reference Chart - ETACS ECU (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

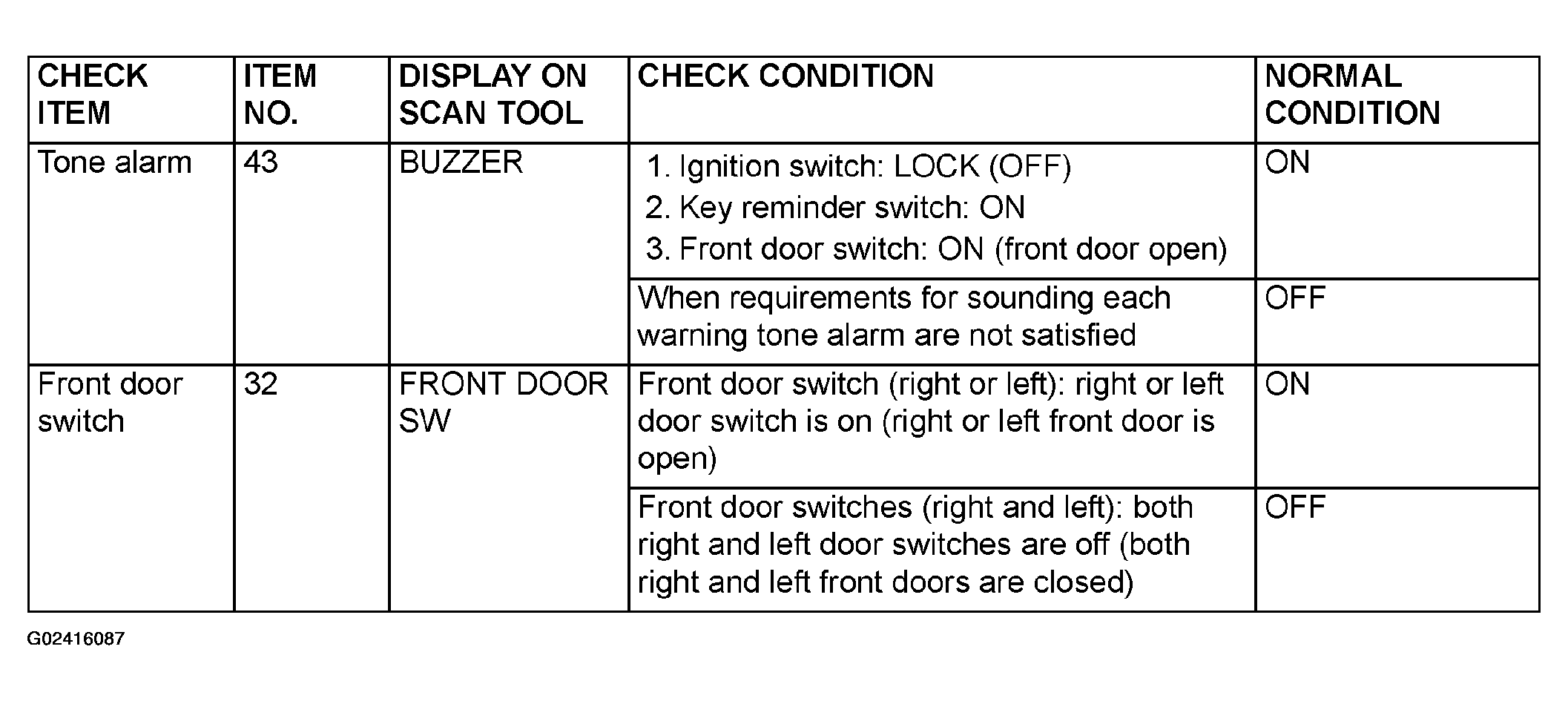

NOTE: For item number 43, the scan tool also displays "ON" when the light reminder tone alarm or R (reverse) position warning tone alarm is triggered.

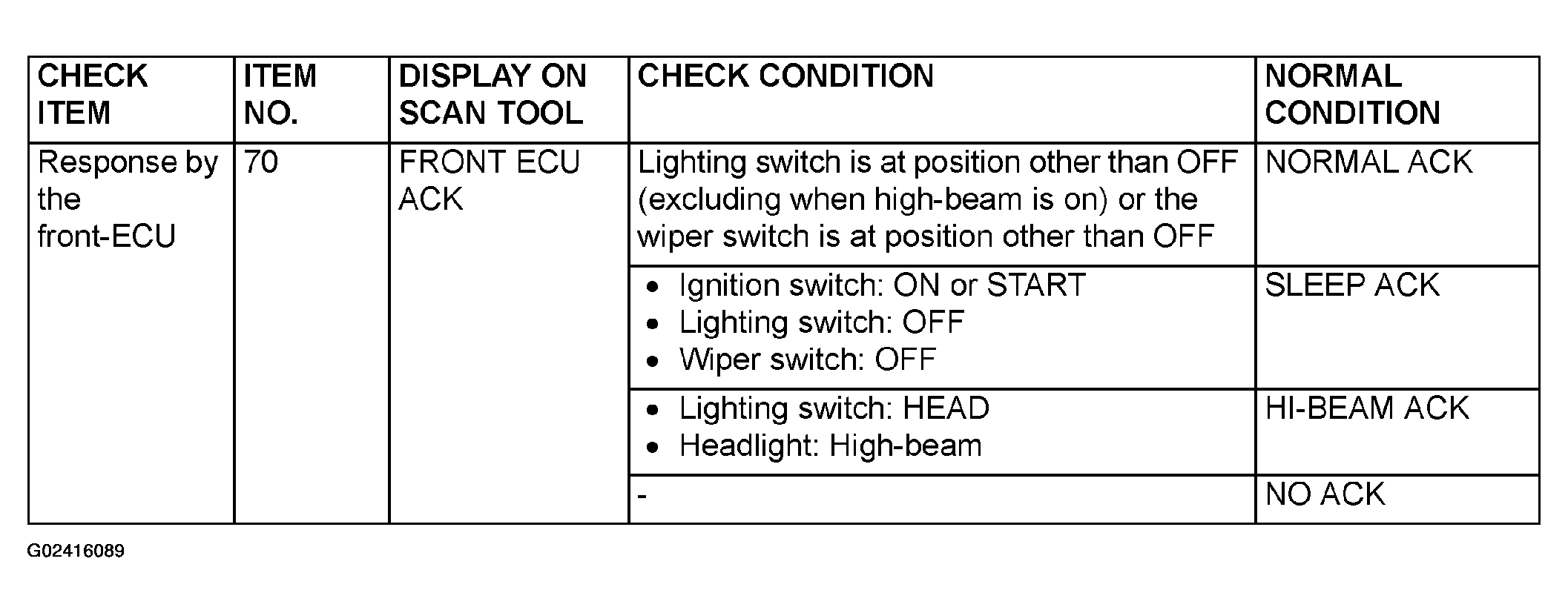

FRONT ECU

Fig 5: Data List Reference Chart (Front ECU)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For item number 70, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "NO ACK" under the front-ECU check.
