2. Column Switch

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Column Switch Connector Terminals
G02416070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

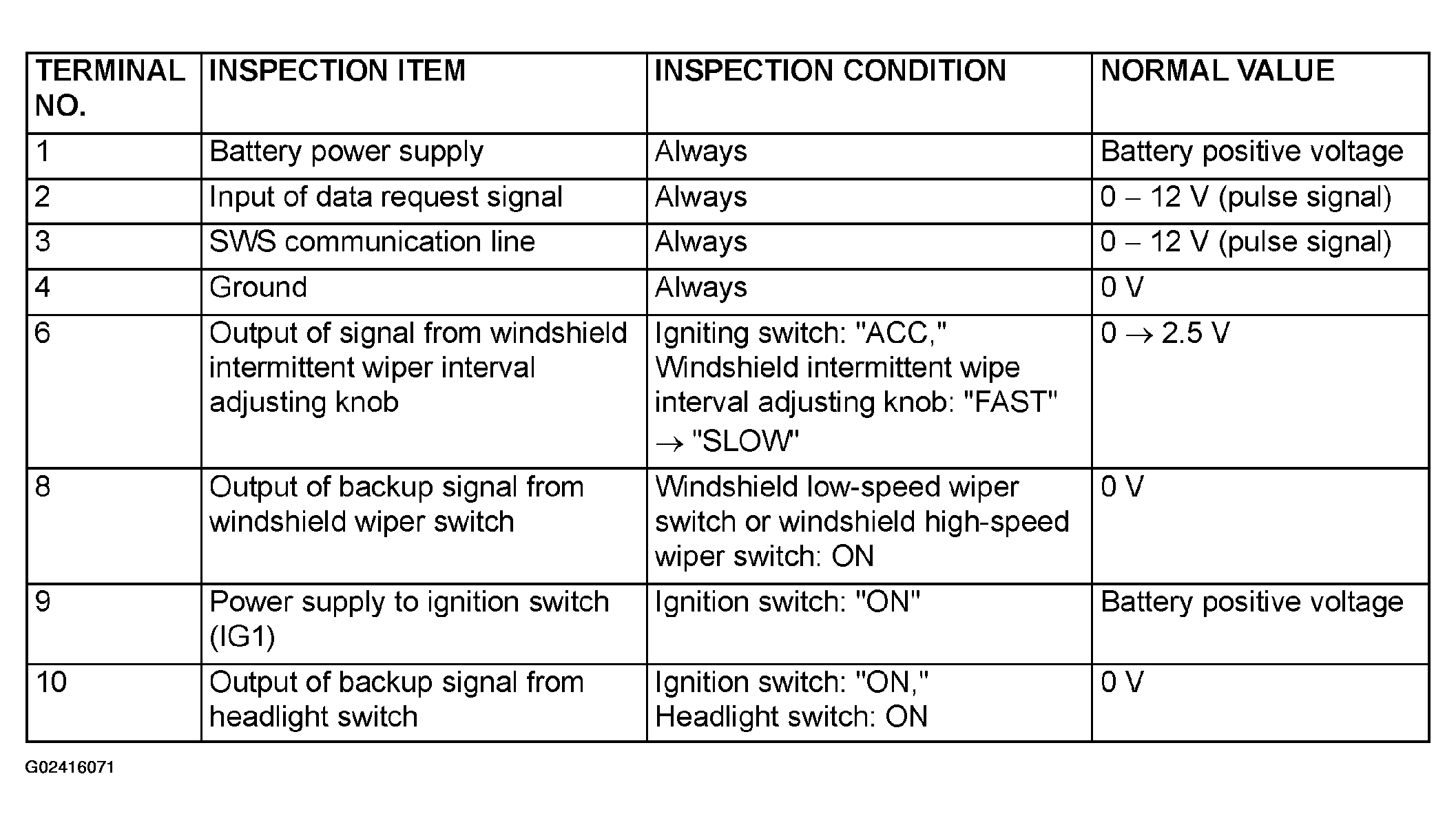

Fig 2: Column Switch Terminals Inspection Chart
G02416071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
