Section 35 (Abs (Anti-Lock Brake System) - Except Evolution)
>>
Wheel Speed Sensor
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

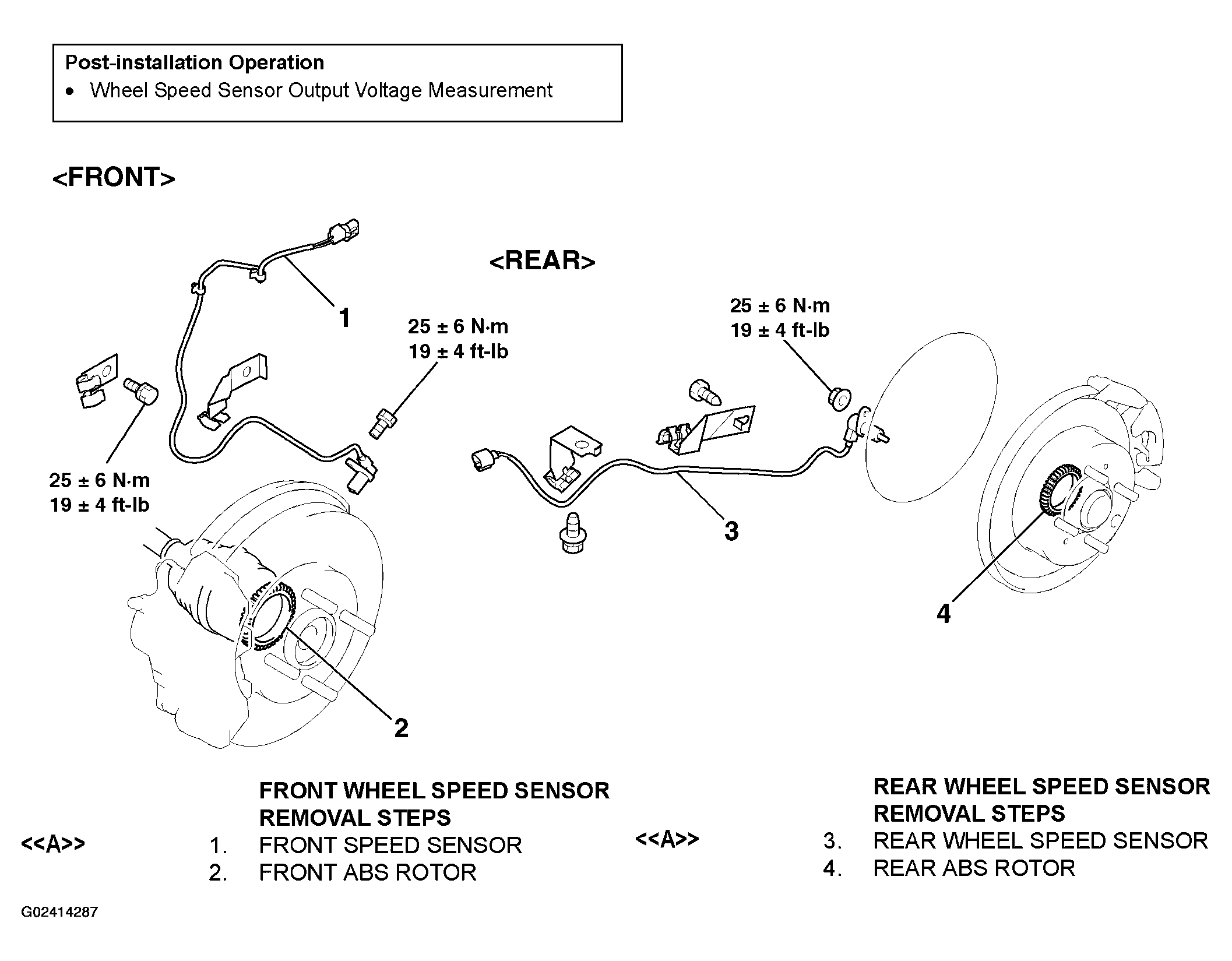

Fig 1: Removing Wheel Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
