Section 35 (Abs (Anti-Lock Brake System) - Except Evolution)
>>
On-Vehicle Service
>>
Abs Warning Light Relay Check
Abs Warning Light Relay Check
WARNING:
This page is about a different variant/trim than selected.

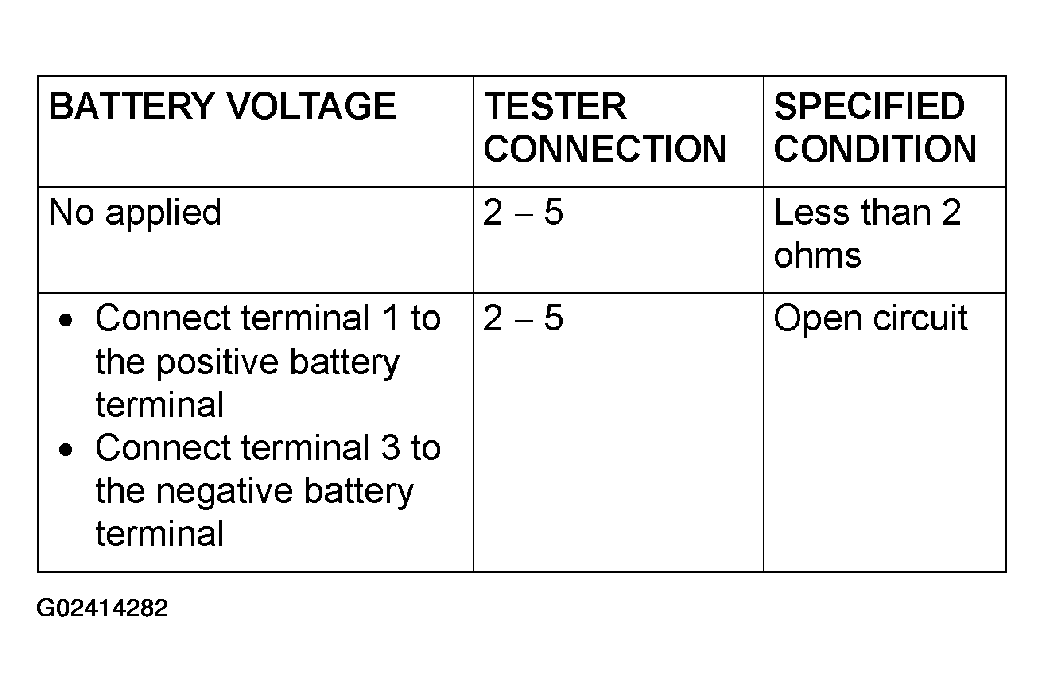

Fig 1: Tester Connection And Specified Condition Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

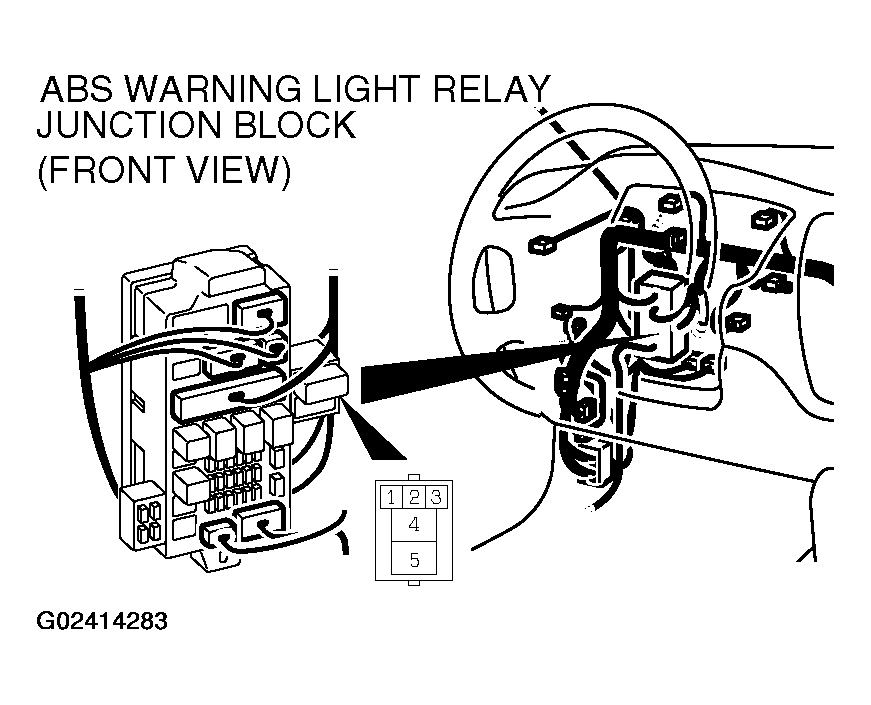

Fig 2: Identifying ABS Warning Light Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
