Data List Reference Table

WARNING: This page is about a different variant/trim than selected.

The following items can be read by the scan tool from the ABS-ECU input data.

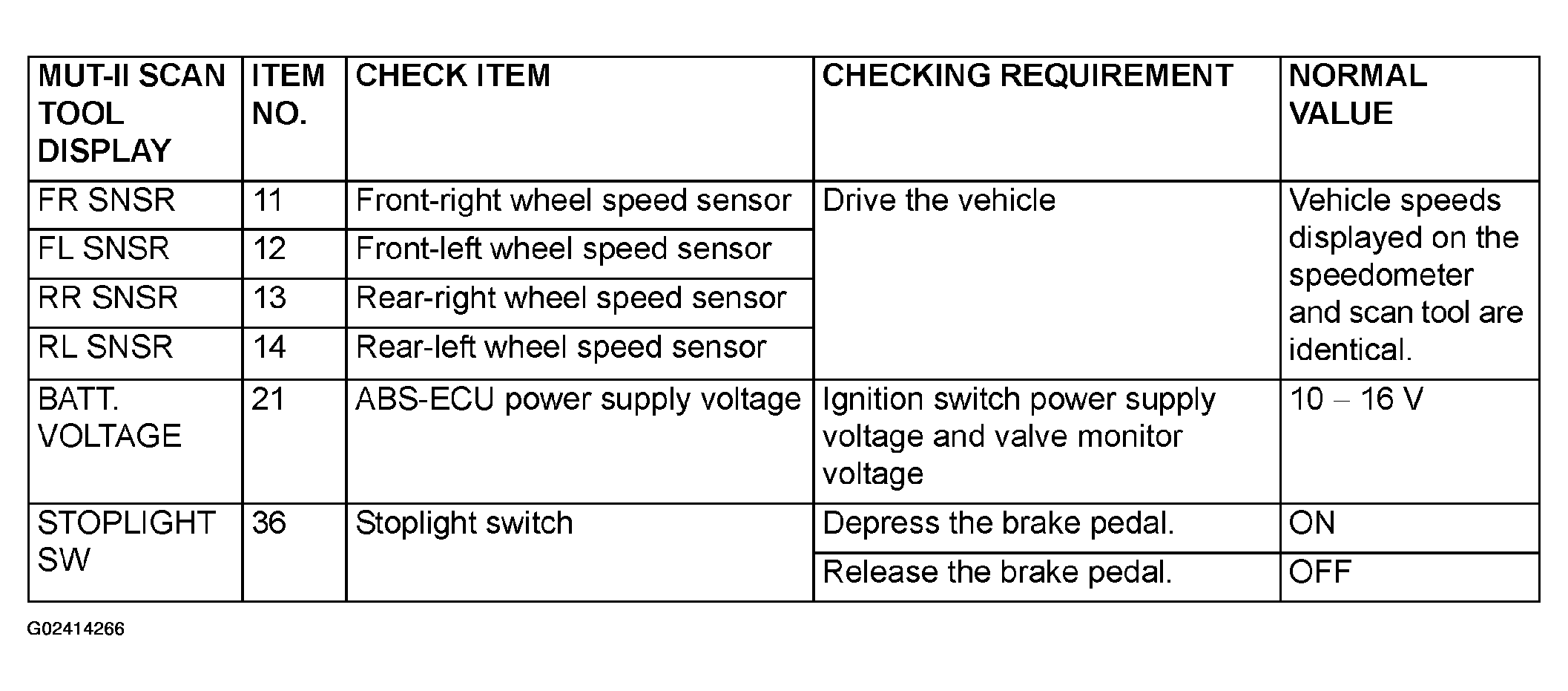

Fig 1: Data List Reference Table
G02414266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
