Section 31 (Rear Axle -- Except Evolution): General Description
WARNING: This page is about a different variant/trim than selected.

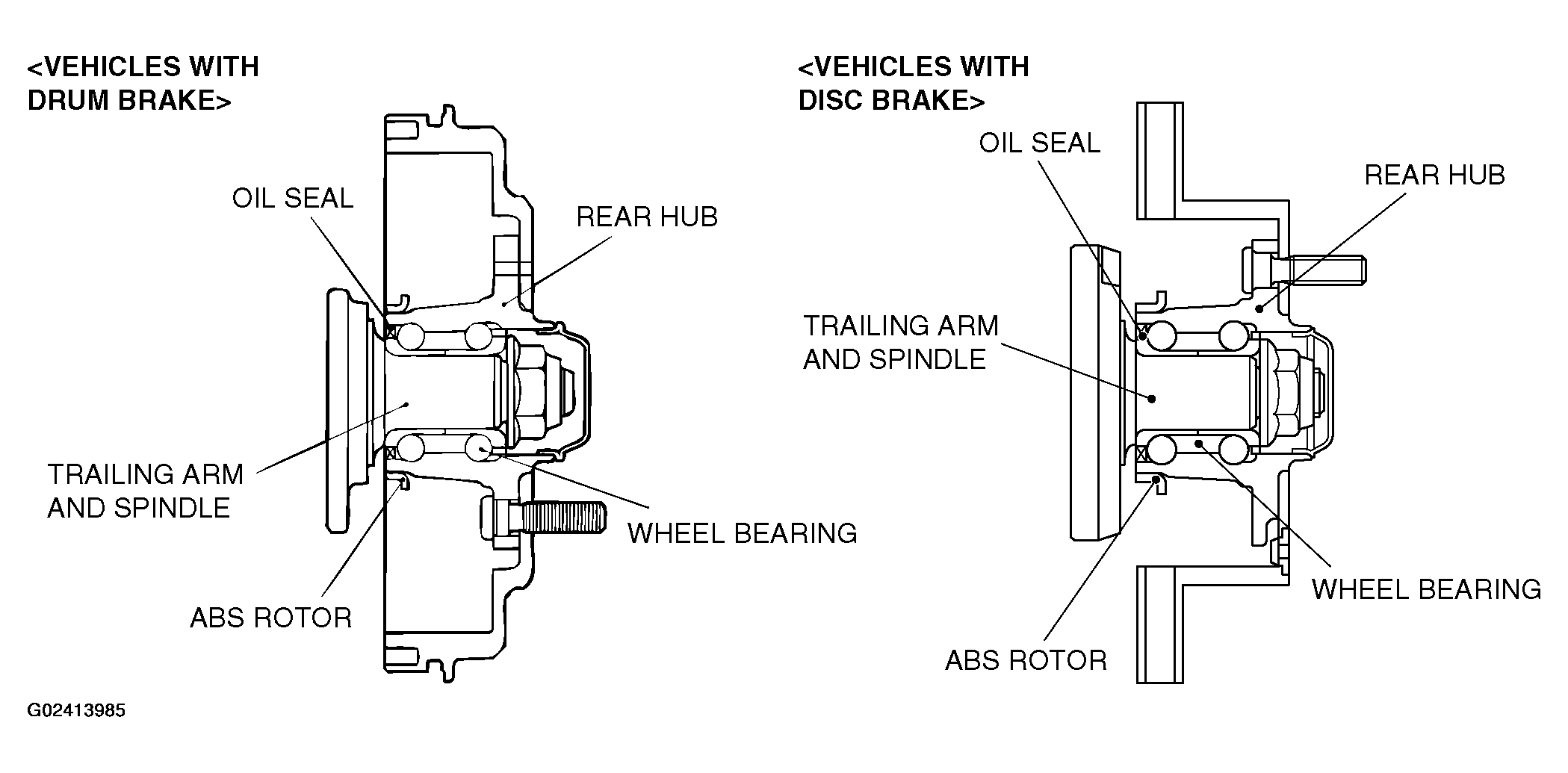

The rear axle has the following features:
- The wheel bearing is a unit ball bearing (double-row angular contact ball bearing) which incorporates the oil seals and is highly resistant to a thrust load.
- ABS rotor for detecting the wheel speeds is press-fitted to the rear hub in vehicles with ABS.
