Section 3 (General -- Except Evolution)
>>
Main Sealant And Adhesive Table
Main Sealant And Adhesive Table
WARNING:
This page is about a different variant/trim than selected.

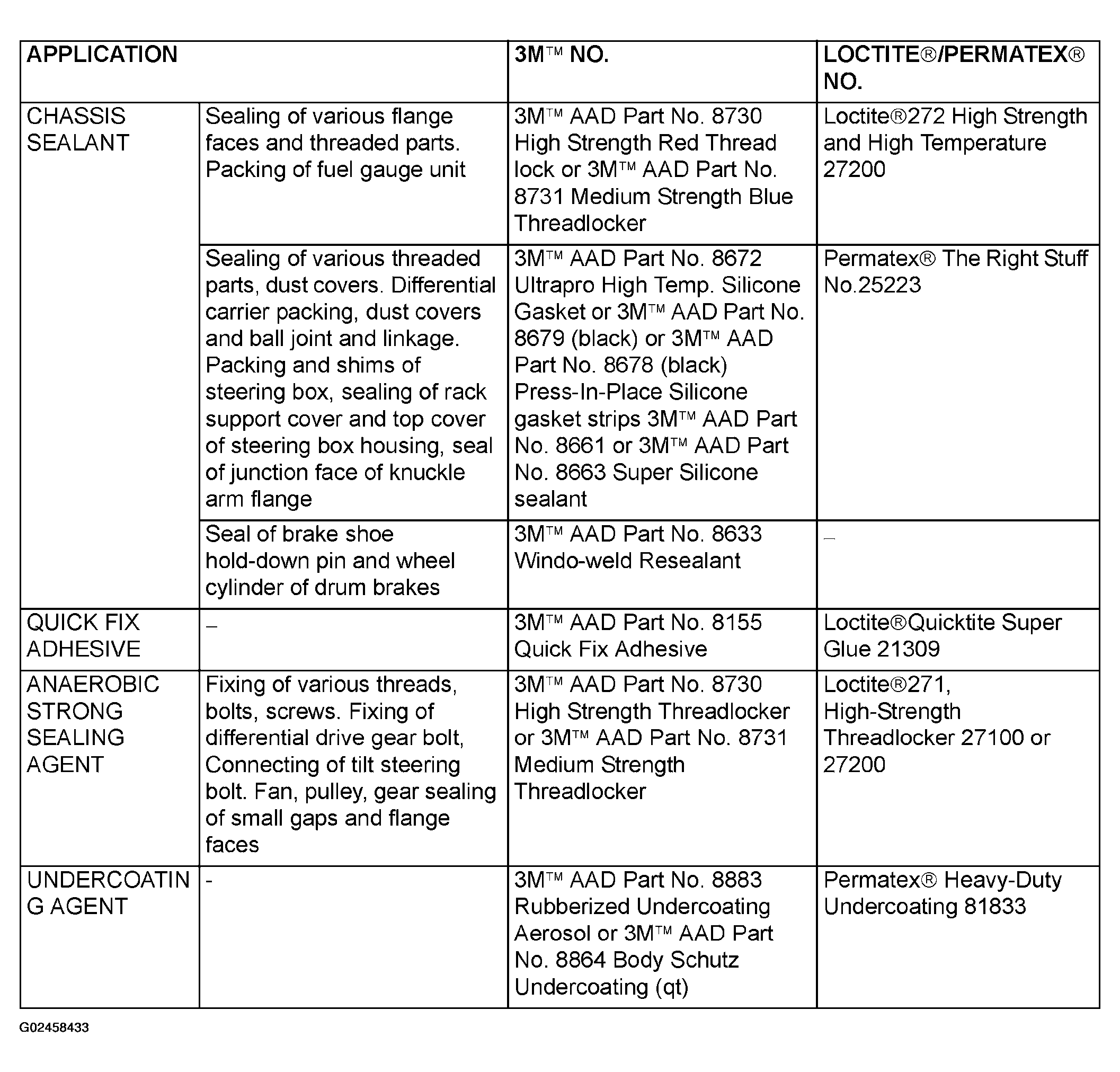

Fig 1: Main Sealant And Adhesive Reference (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

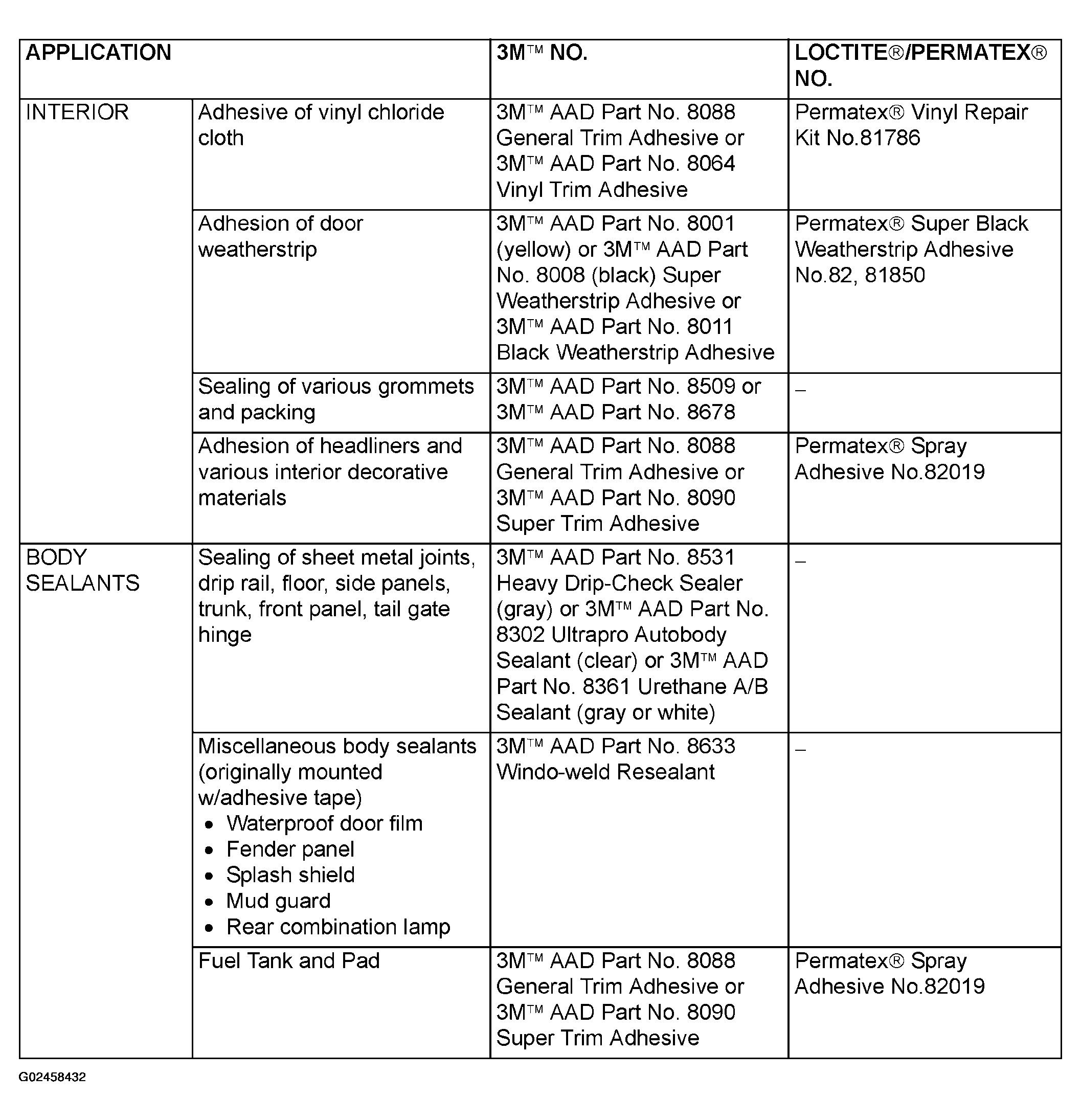

Fig 2: Main Sealant And Adhesive Reference (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

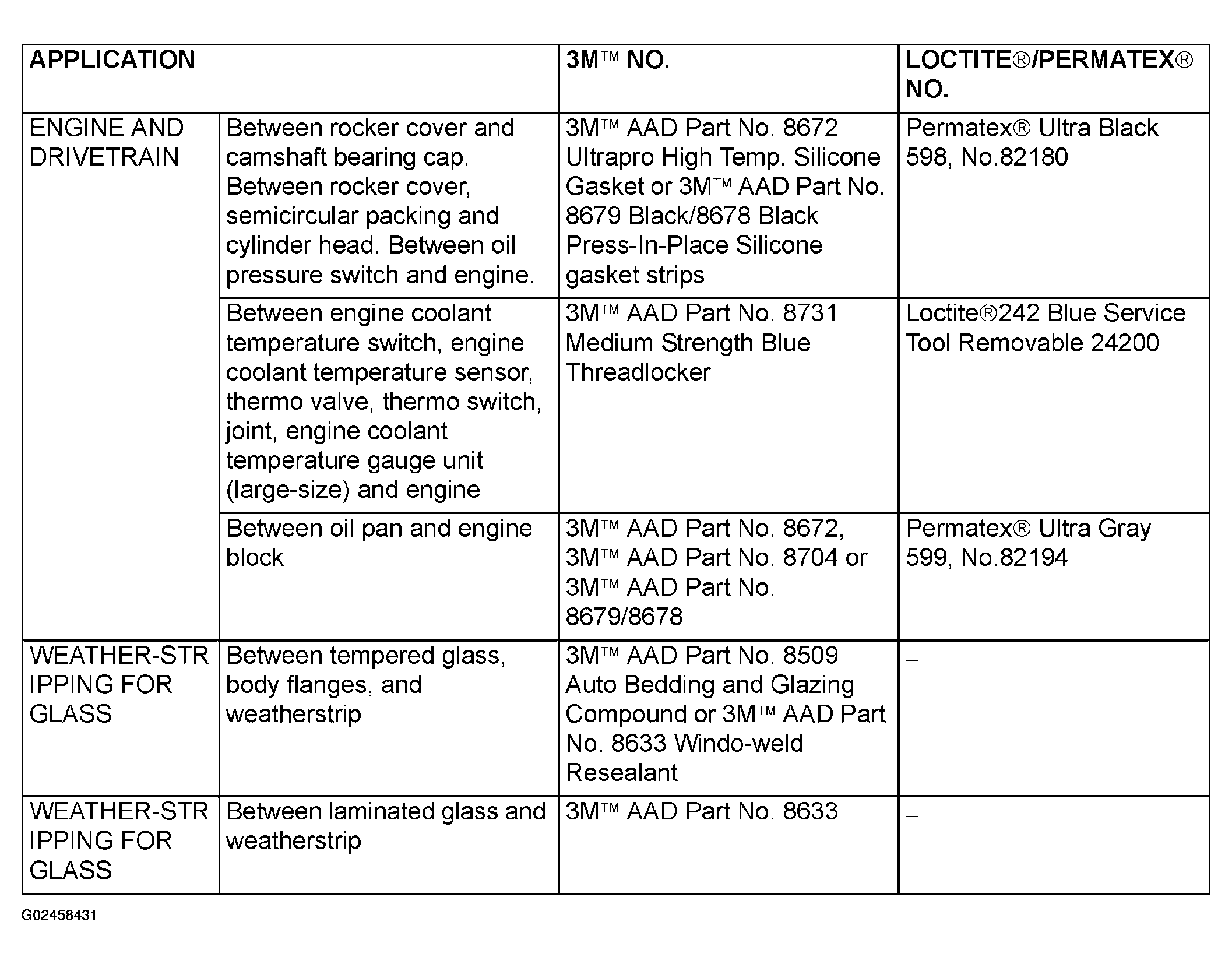

Fig 3: Main Sealant And Adhesive Reference (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
