Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

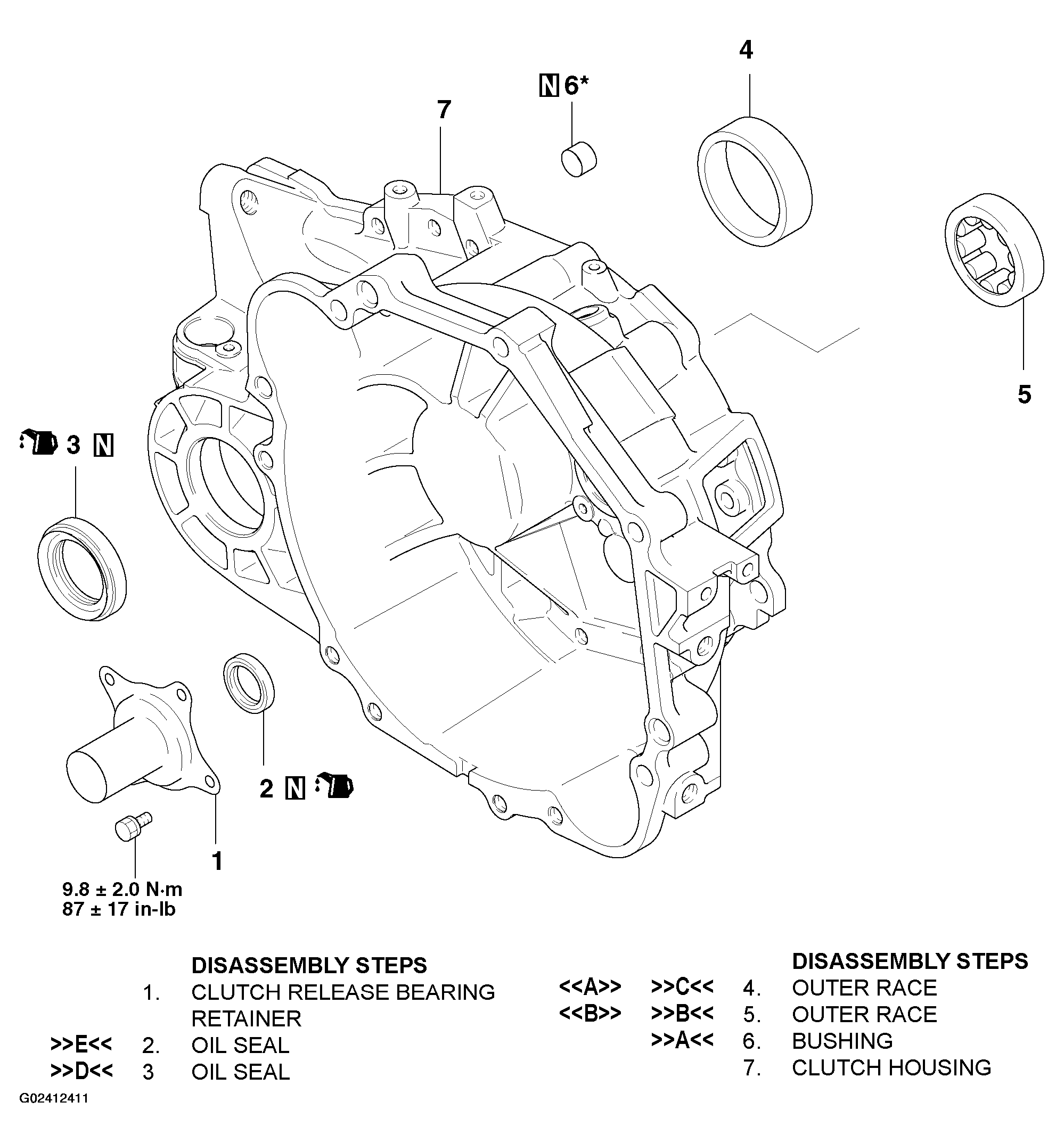

Fig 1: Disassembly Steps Of Clutch Housing Components

G02412411

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990926: Installer Adapter
MB990934: Installer Adapter
MB990935: Installer Adapter
MB990938: Handle
MD998325: Differential Oil Seal Installer
MD998346: Bearing Outer Race Remover
MD998772: Valve Spring Compressor
MD999566: Claw
