Removal And Installation < 2.4L Engine >: Notes

WARNING: This page is about a different variant/trim than selected.

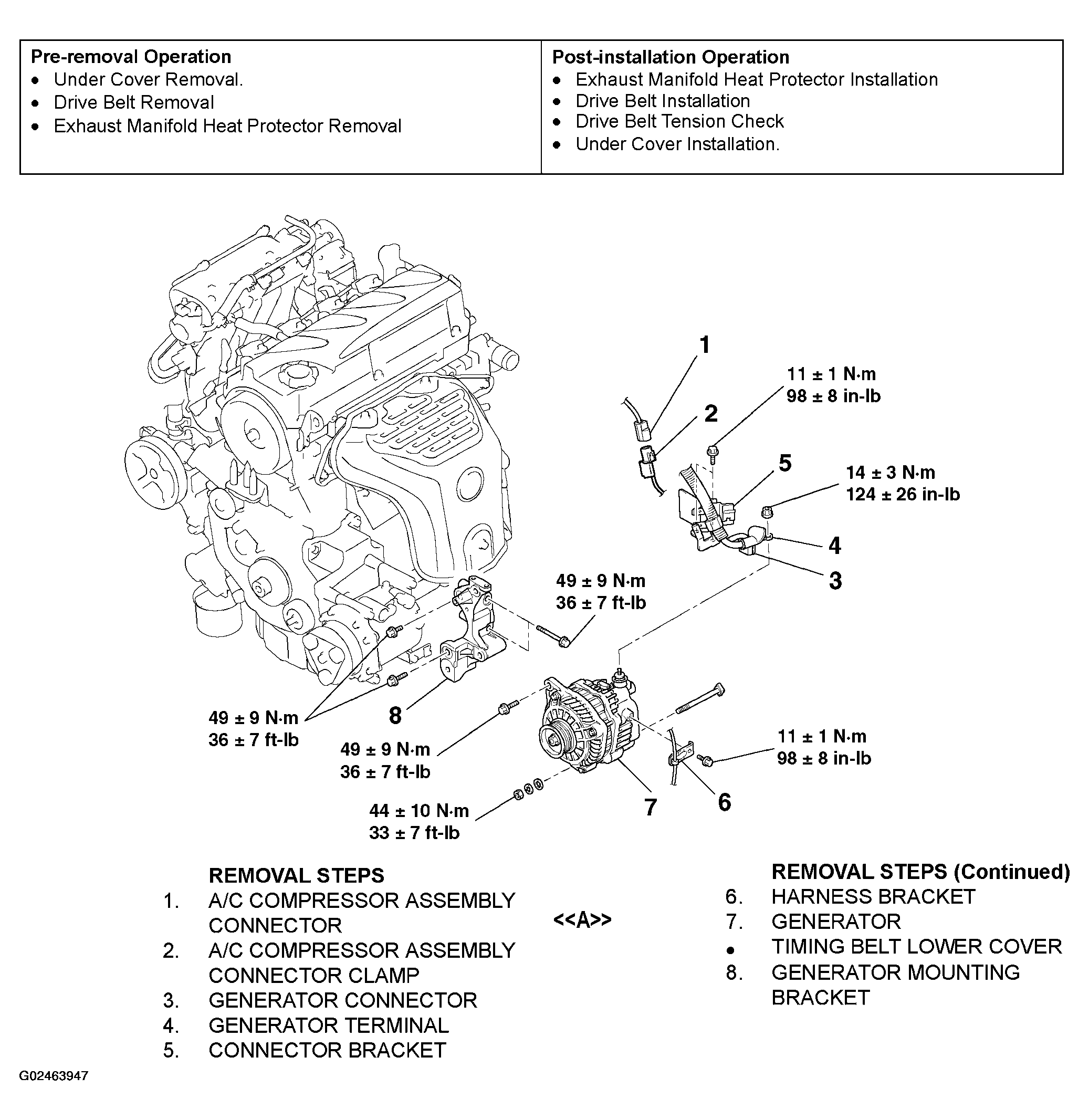

Fig 1: Removing/Installing Generator Assembly (2.4L Engine)
G02463947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
