Section 18 (Power Steering -- Except Evolution)
>>
Power Steering Oil Pump Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

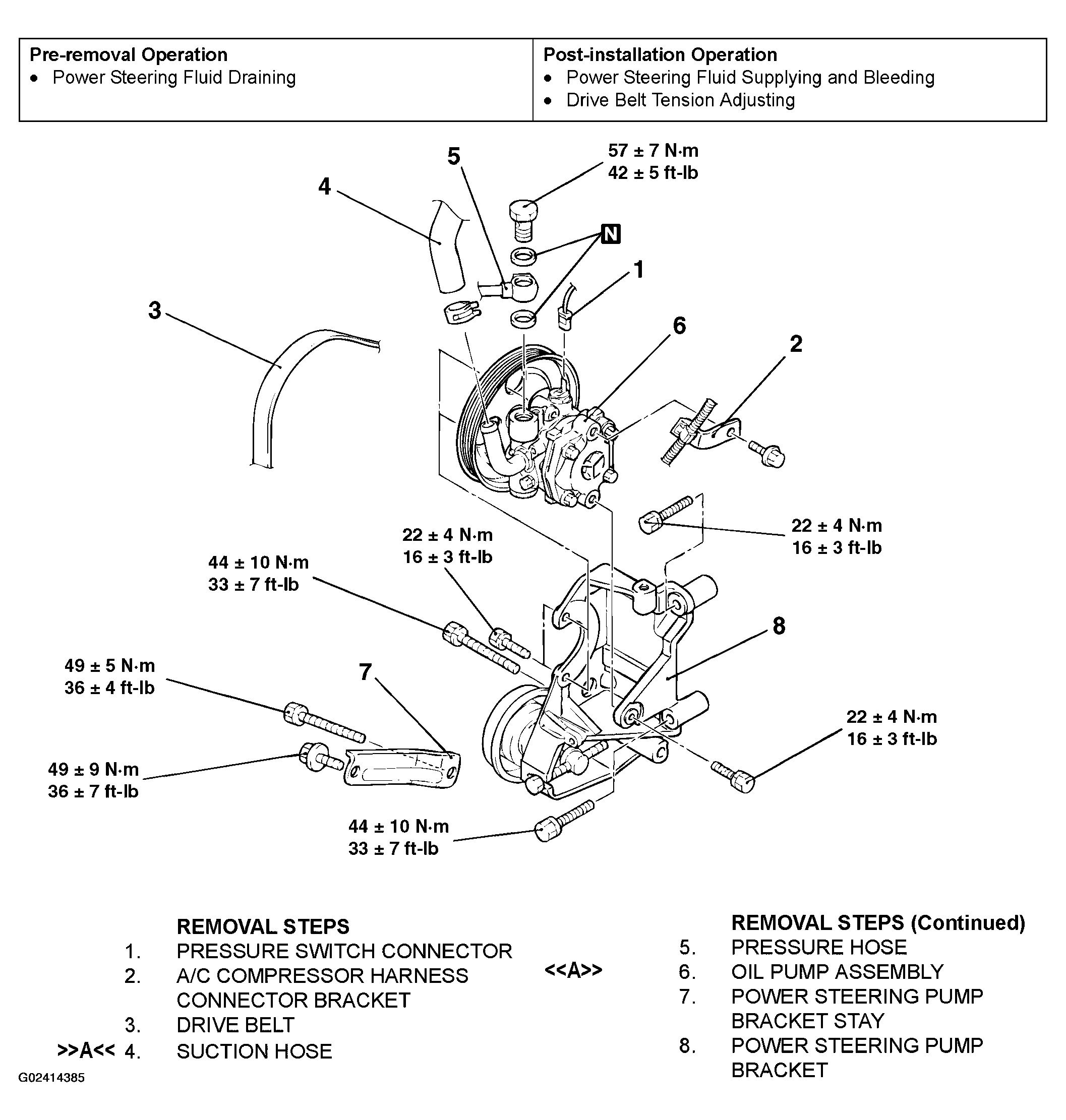

Fig 1: Installing Power Steering Oil Pump Assembly - 2.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

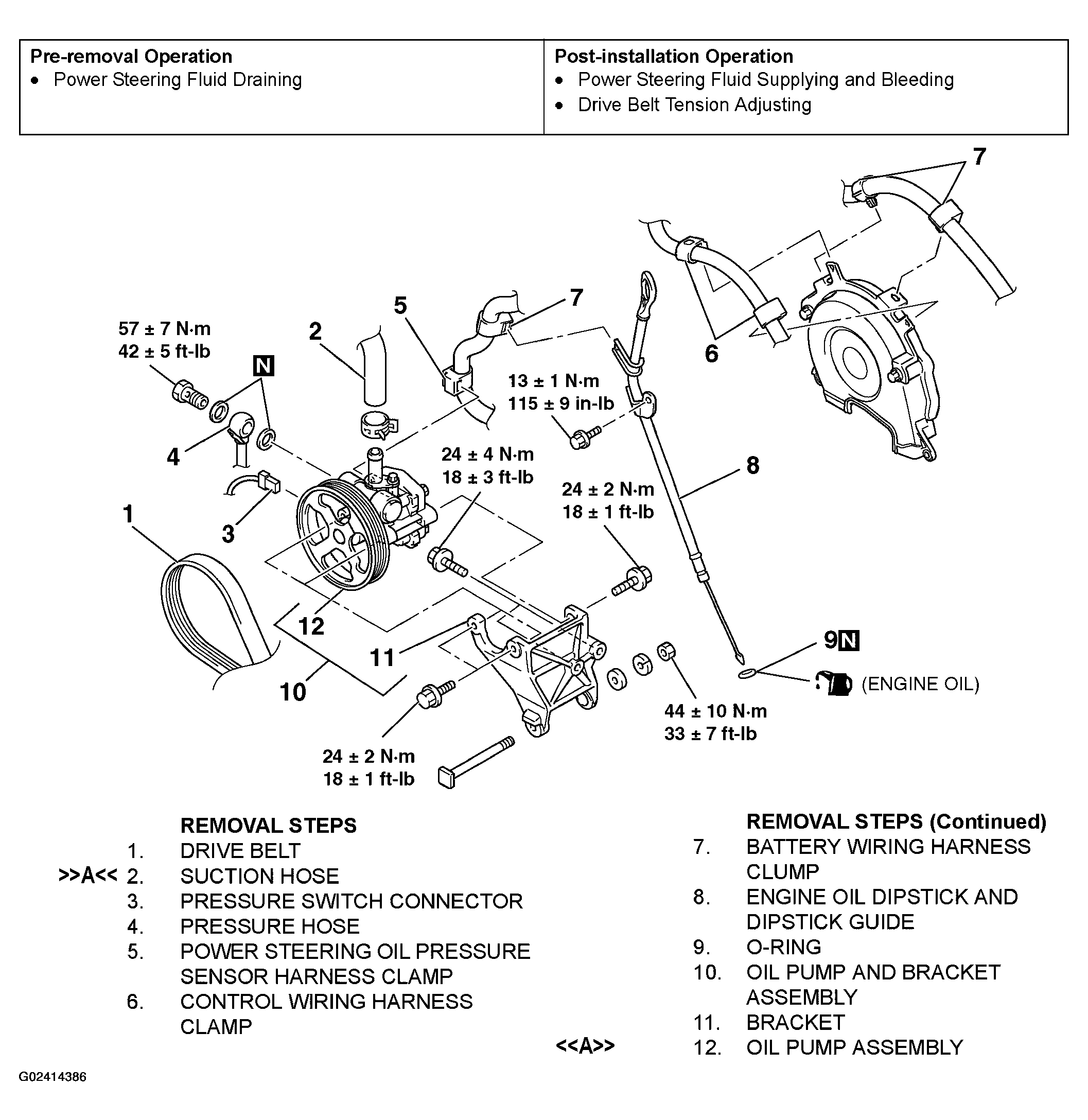

Fig 2: Installing Power Steering Oil Pump Assembly - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
