Section 13 (Auto-Cruise Control (2.0L) - Except RALLIART)
>>
Auto-Cruise Control System Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC 15: Auto-cruise Control Switch System
>>
Notes
DTC 15: Auto-cruise Control Switch System: Notes
WARNING:
This page is about a different variant/trim than selected.

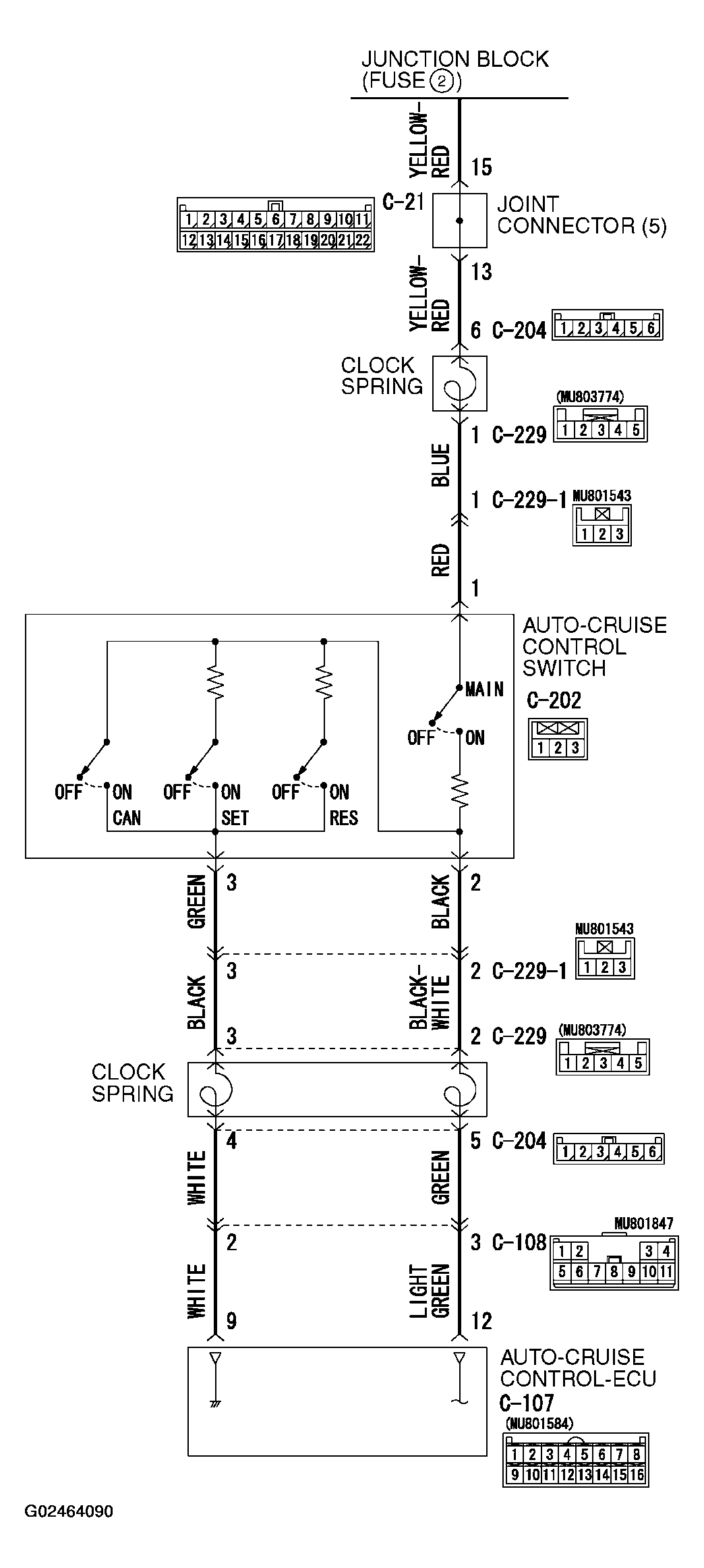

Fig 1: Auto-Cruise Control Switch System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

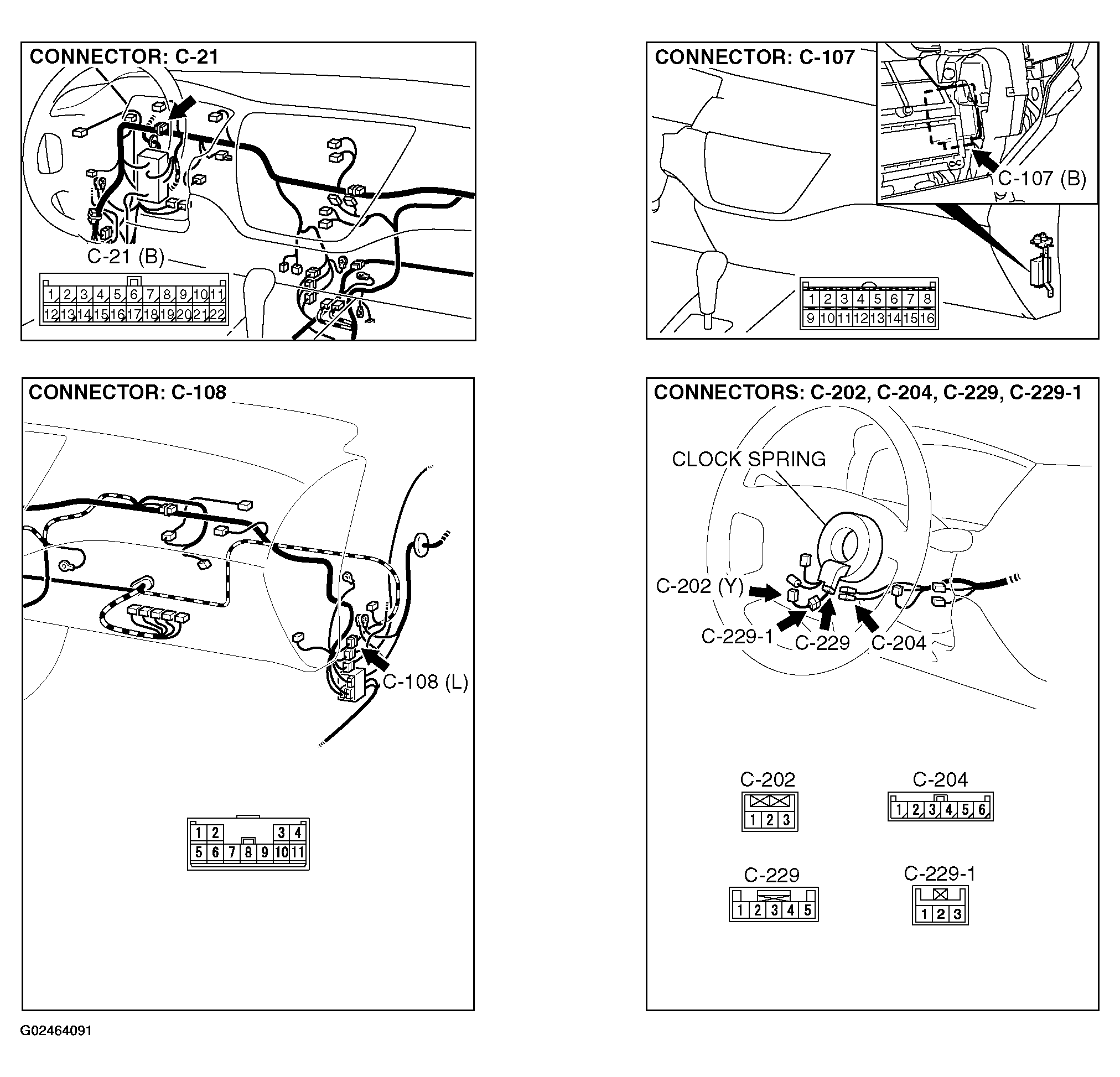

Fig 2: Auto-Cruise Control Switch System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
