Using Scan Tool MB991958

WARNING: This page is about a different variant/trim than selected.

Required Special Tool:

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

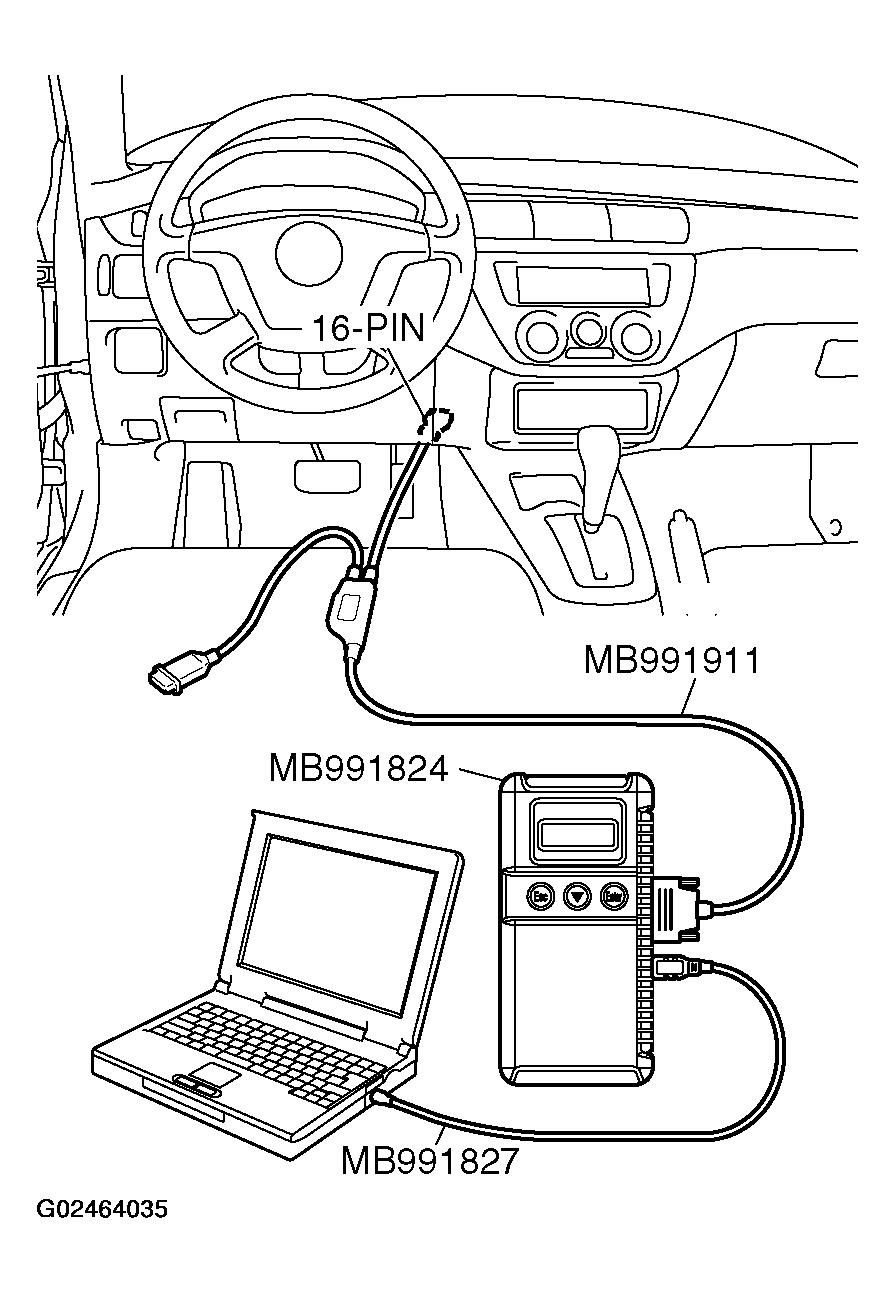

  1. Connect scan tool MB991958 to the data link connector.
  2. Turn the ignition switch to the "ON" position.
  3. Use scan tool MB991958 to check for auto-cruise control system diagnostic trouble codes.
  4. Turn the ignition switch to the "LOCK" (OFF) position.
  5. Disconnect scan tool MB991958.
    Fig 2: Identifying Auto-Cruise Control Switch
    G02464036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Required Special Tool:

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
  1. Connect scan tool MB991958 to the data link connector.
  2. Turn the ignition switch to the "ON" position.
  3. Use scan tool MB991958 to check for auto-cruise control system diagnostic trouble codes.
  4. Turn the ignition switch to the "LOCK" (OFF) position.
  5. Disconnect scan tool MB991958.

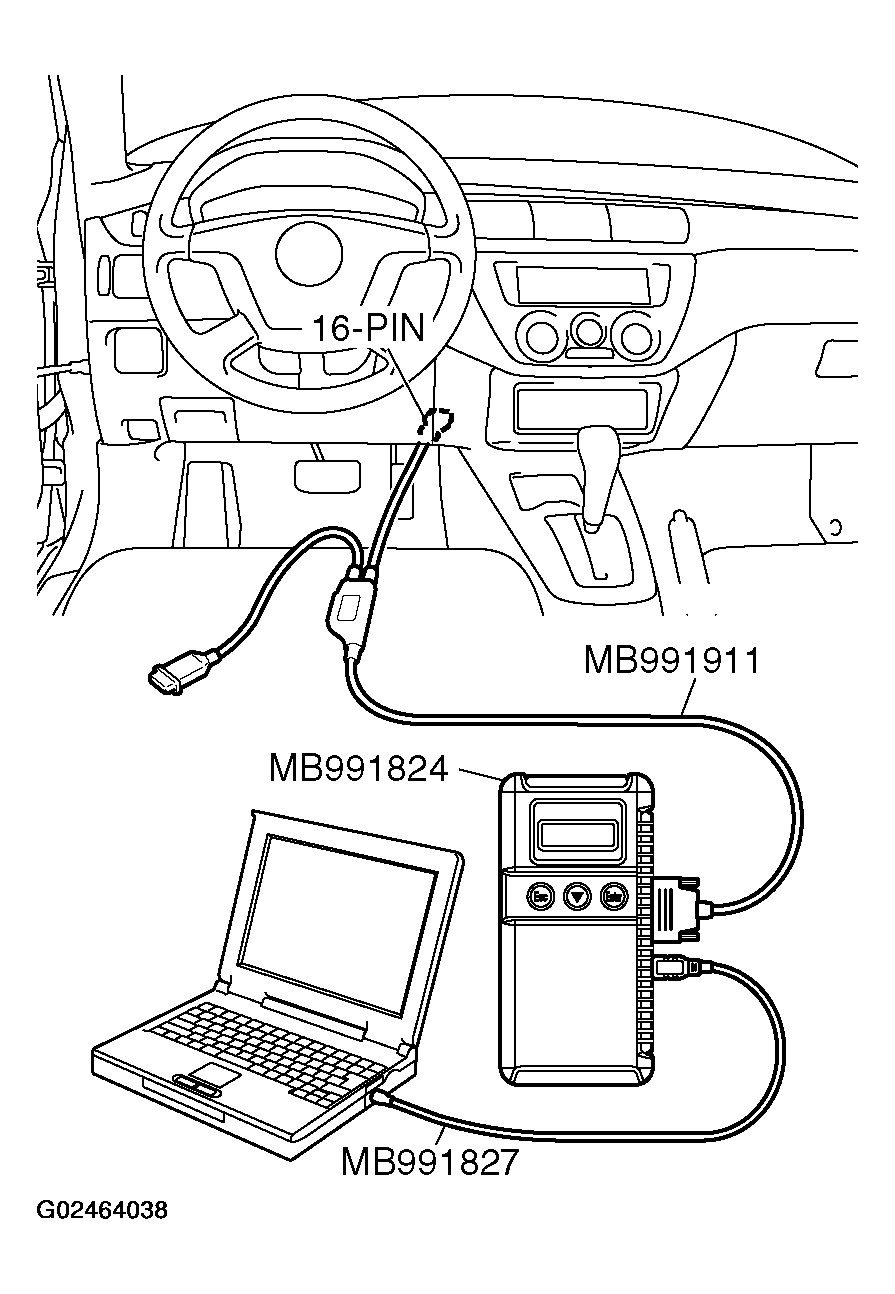

    Fig 1: Connecting Scan Tool MB991958 To Data Link Connector
    G02464038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
