General Circuit Diagram For The Power Windows

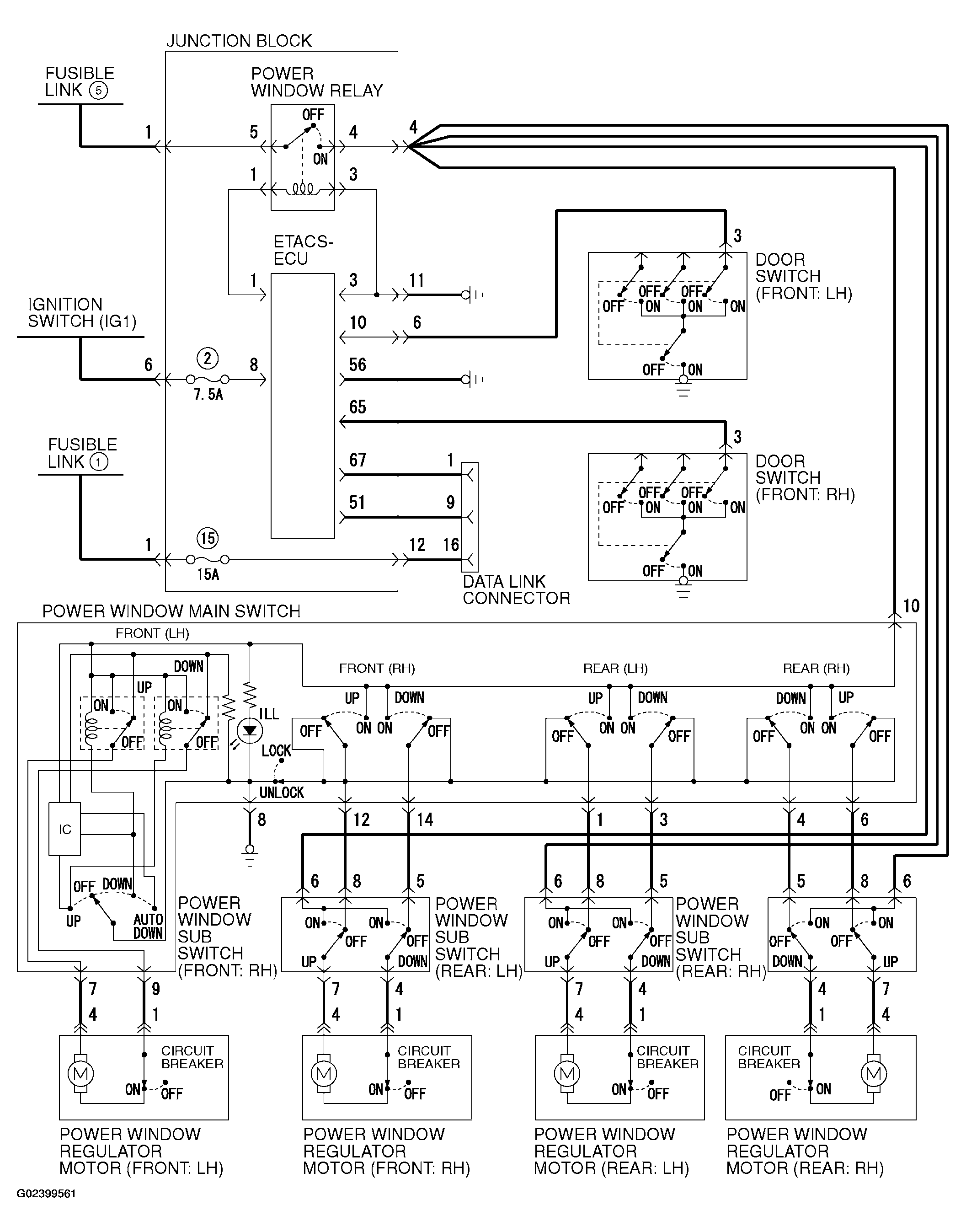

Fig 1: Power Windows Circuit Diagram

G02399561

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
