Diagnostic Trouble Code Chart

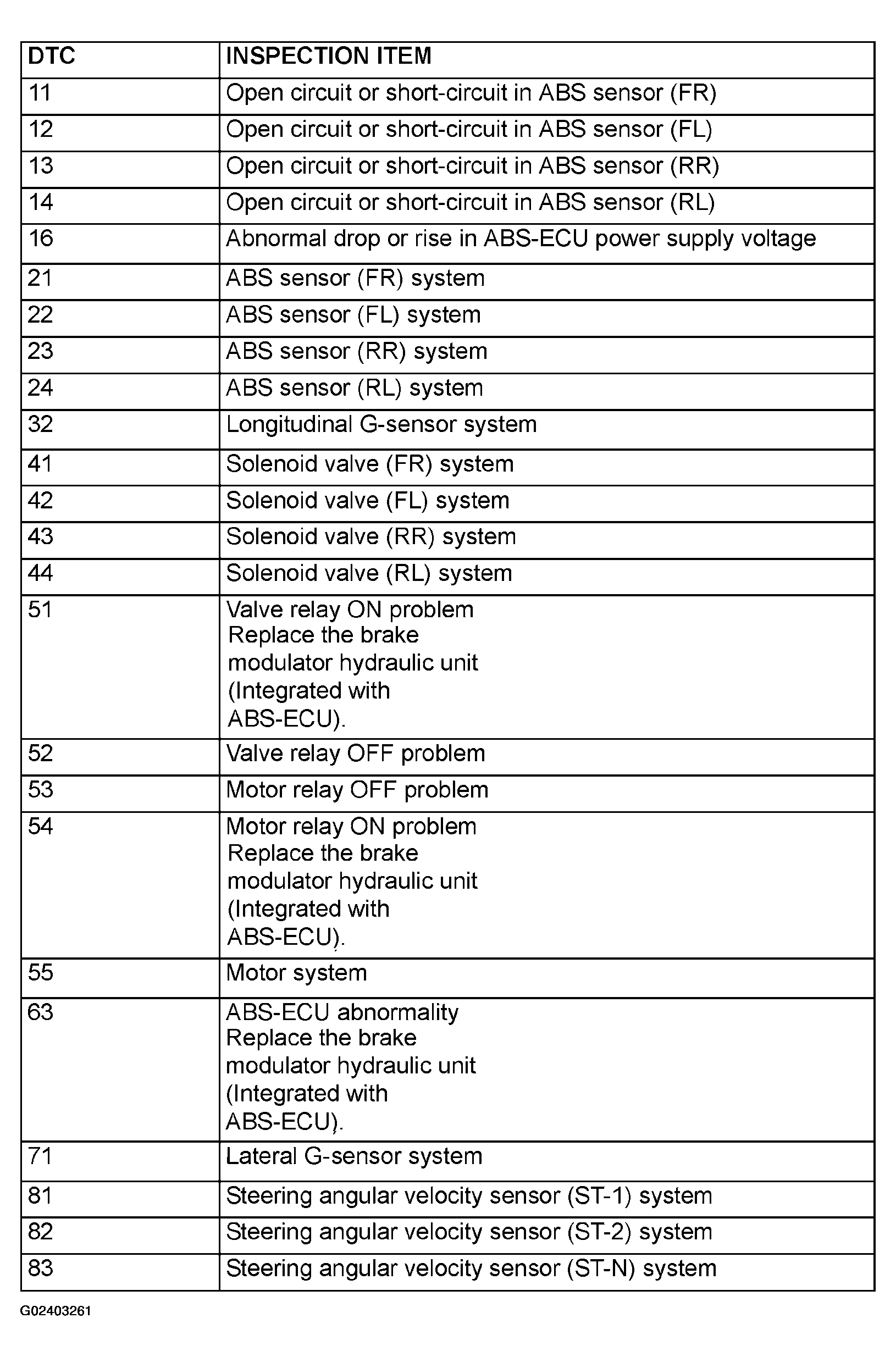

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11, 12, 13, 14, 21, 22, 23, 24 | ABS Sensor (Open Circuit or Short Circuit) & ABS Sensor System |
| DTC 16 | ABS-ECU Power Supply System (abnormal voltage drop or rise) |
| DTC 32 | Longitudinal G-Sensor System |
| DTC 41, 42, 43, 44, 52, 53, 55 | Solenoid Valve inside Hydraulic Unit, Valve Relay Problem (Stays off), Motor Relay Problem (Stays off), Motor System (Seized Pump Motor) |
| DTC 71 | Lateral G-Sensor System |
| DTC 81, 82, 83 | Steering Angular Velocity Sensor System |
Follow the inspection chart that is appropriate for the diagnostic trouble code.
NOTE:
diagnostic trouble code No. 16 is cleared from the memory by turning the ignition switch to the "ACC" position. When the system is properly reset, this code is also cleared from the memory.
NOTE:
diagnostic trouble code No. 52 and 63 are cleared from the memory by turning the ignition switch to the "ACC" position.
