INSPECTION PROCEDURE 5: Combination meter does not work.: Notes

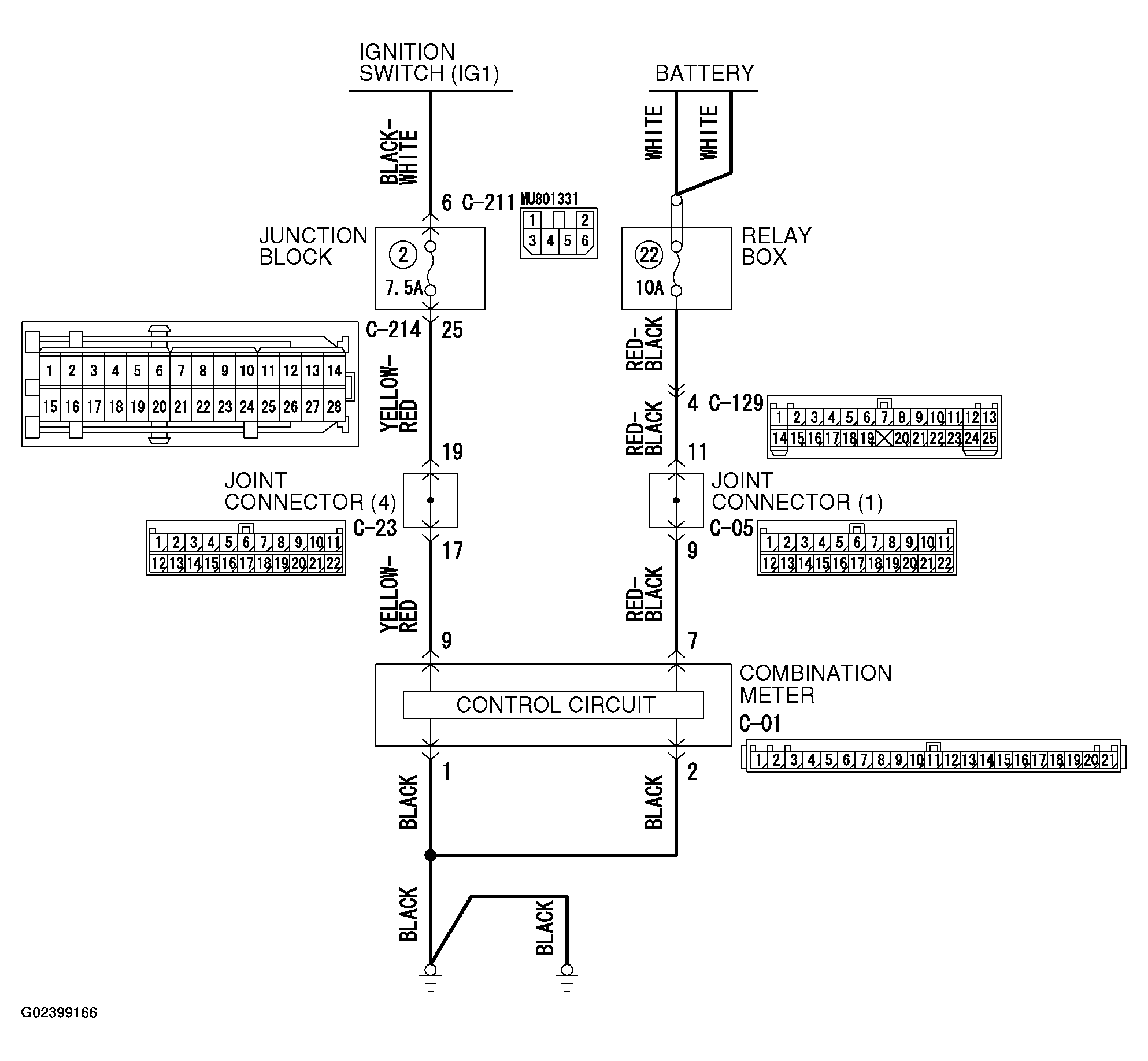

Fig 1: Combination Meter Not Work - Circuit Diagram
G02399166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

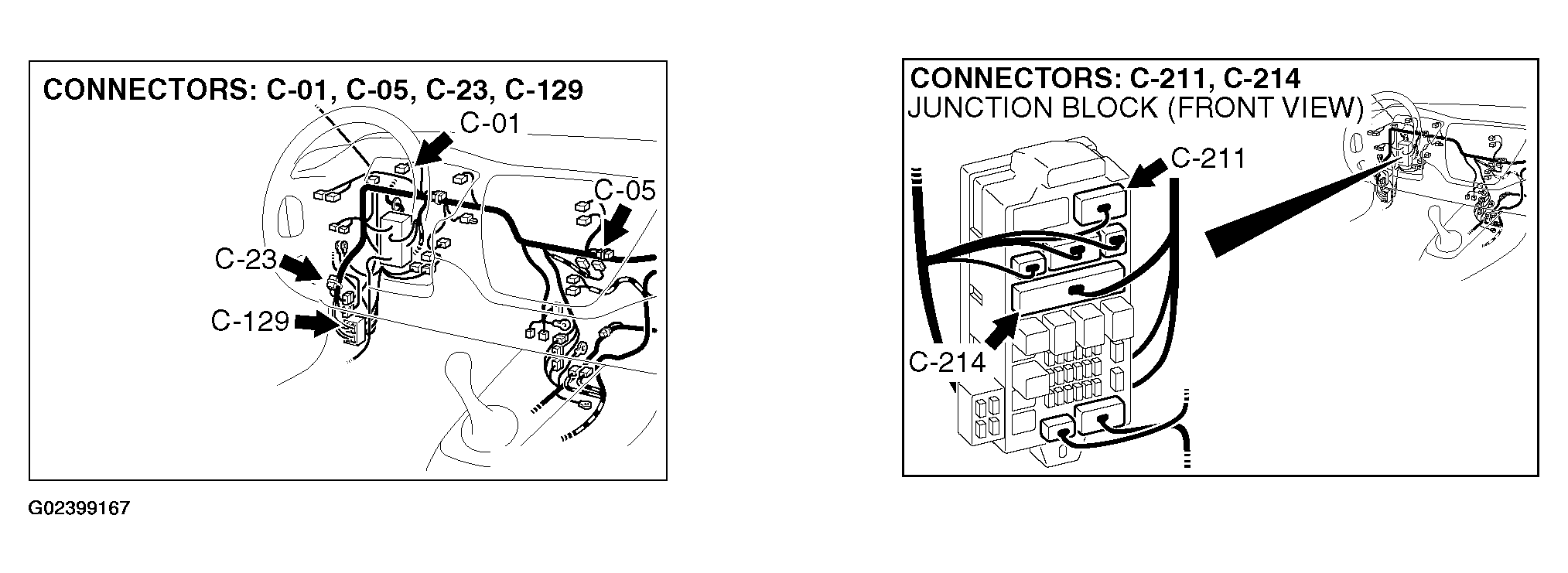

Fig 2: Identifying Connector Terminal Location
G02399167Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
