INSPECTION PROCEDURE D-3: Power Windows: Only Front Door Window (LH) Does Not Work Normally By Operating The Power Window Main Switch.: Notes

WARNING: This page is about a different variant/trim than selected.

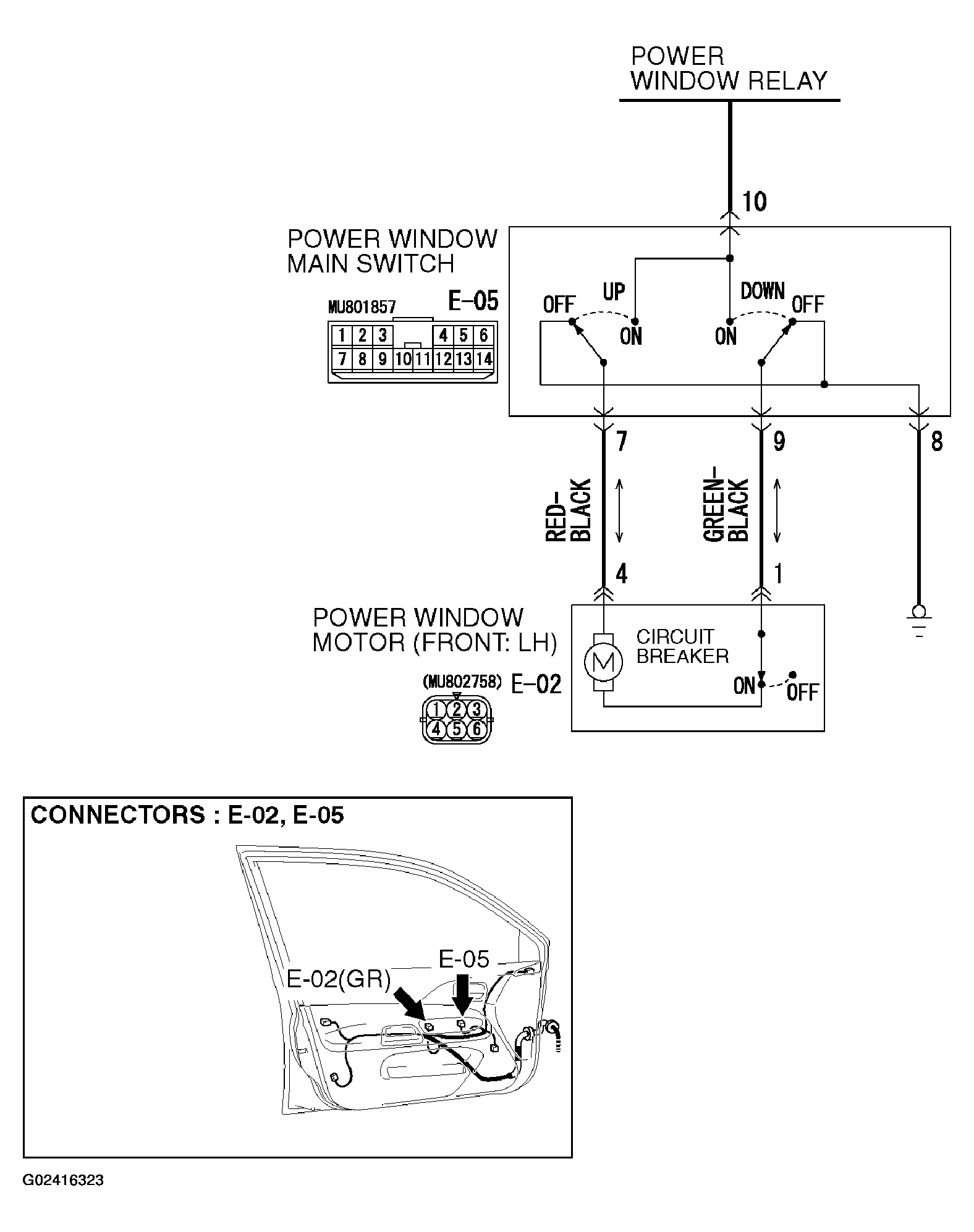

Fig 1: Power Window (Front: LH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
