INSPECTION PROCEDURE E-2: Keyless Entry System: The Front Dome Light, The Turn-Signal Lights And The Horn Do Not Operate Through The Answerback Function.: Notes

WARNING: This page is about a different variant/trim than selected.

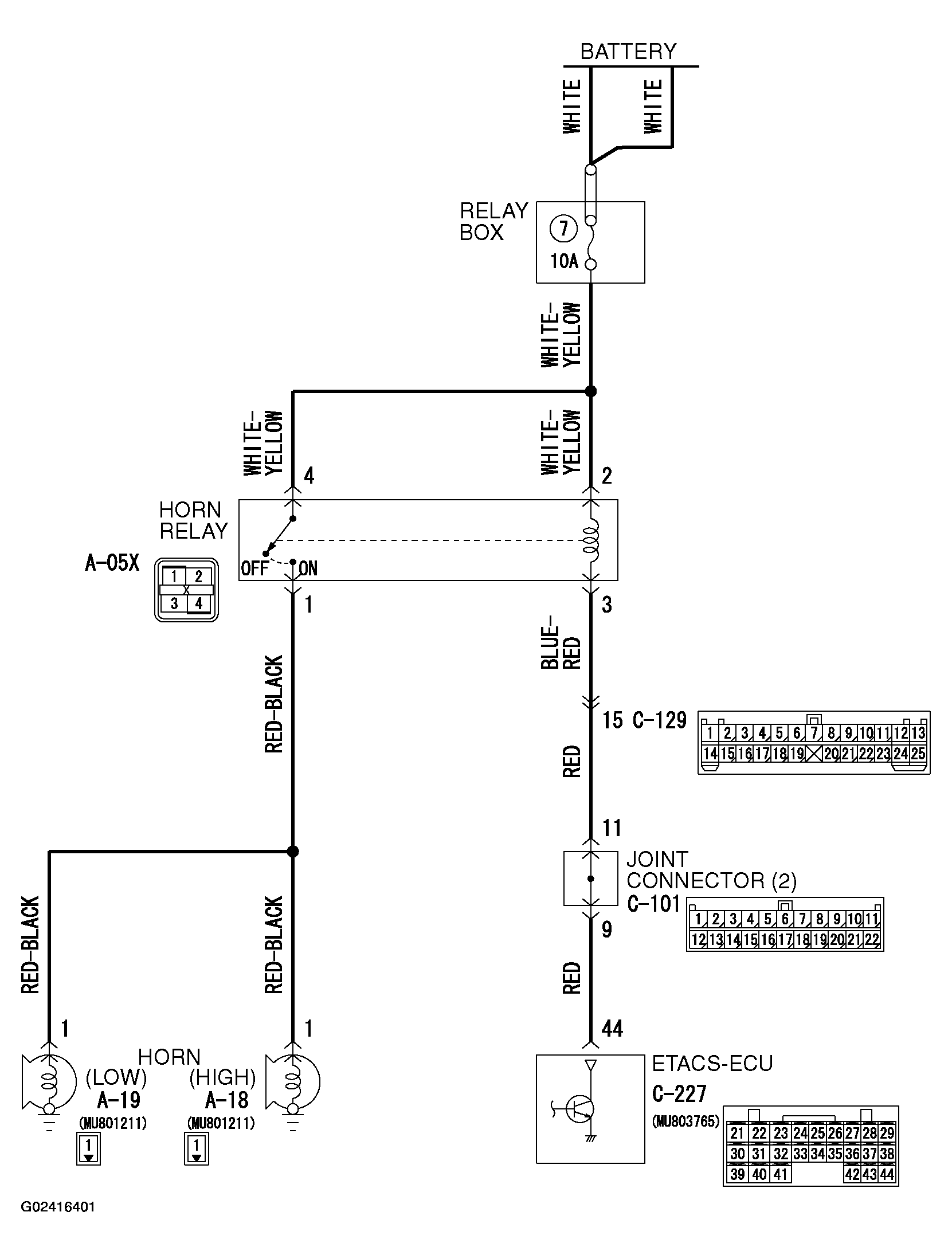

Fig 1: Horn Drive Circuit Diagram
G02416401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

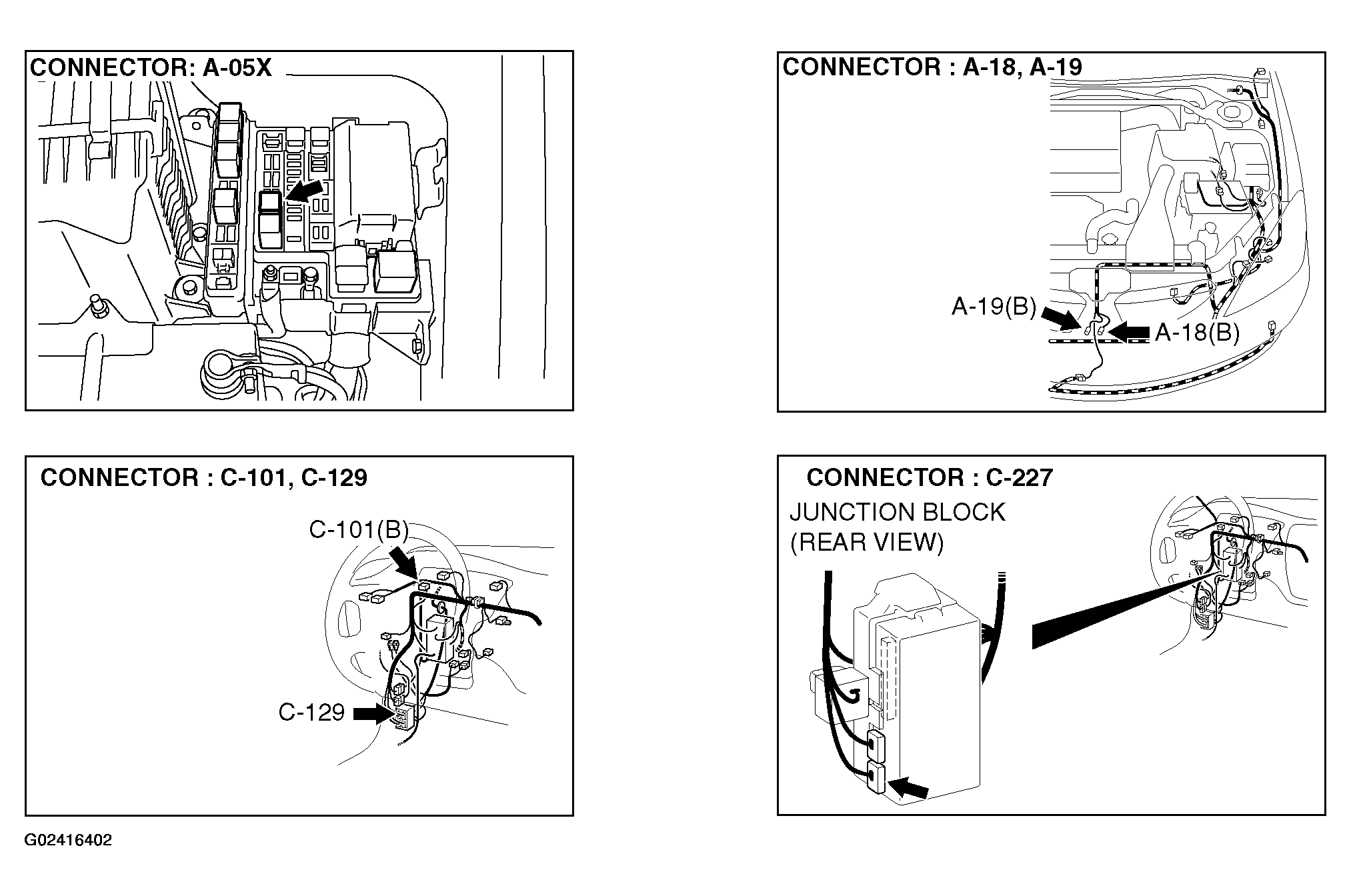

Fig 2: Identifying Connectors
G02416402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
