Home >> Mitsubishi >> 2005 >> Lancer ES, Standard >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System -- Except Evolution >> Crankshaft Position Sensor >> Removal And Installation < 2.4L Engine >

Removal And Installation < 2.4L Engine >

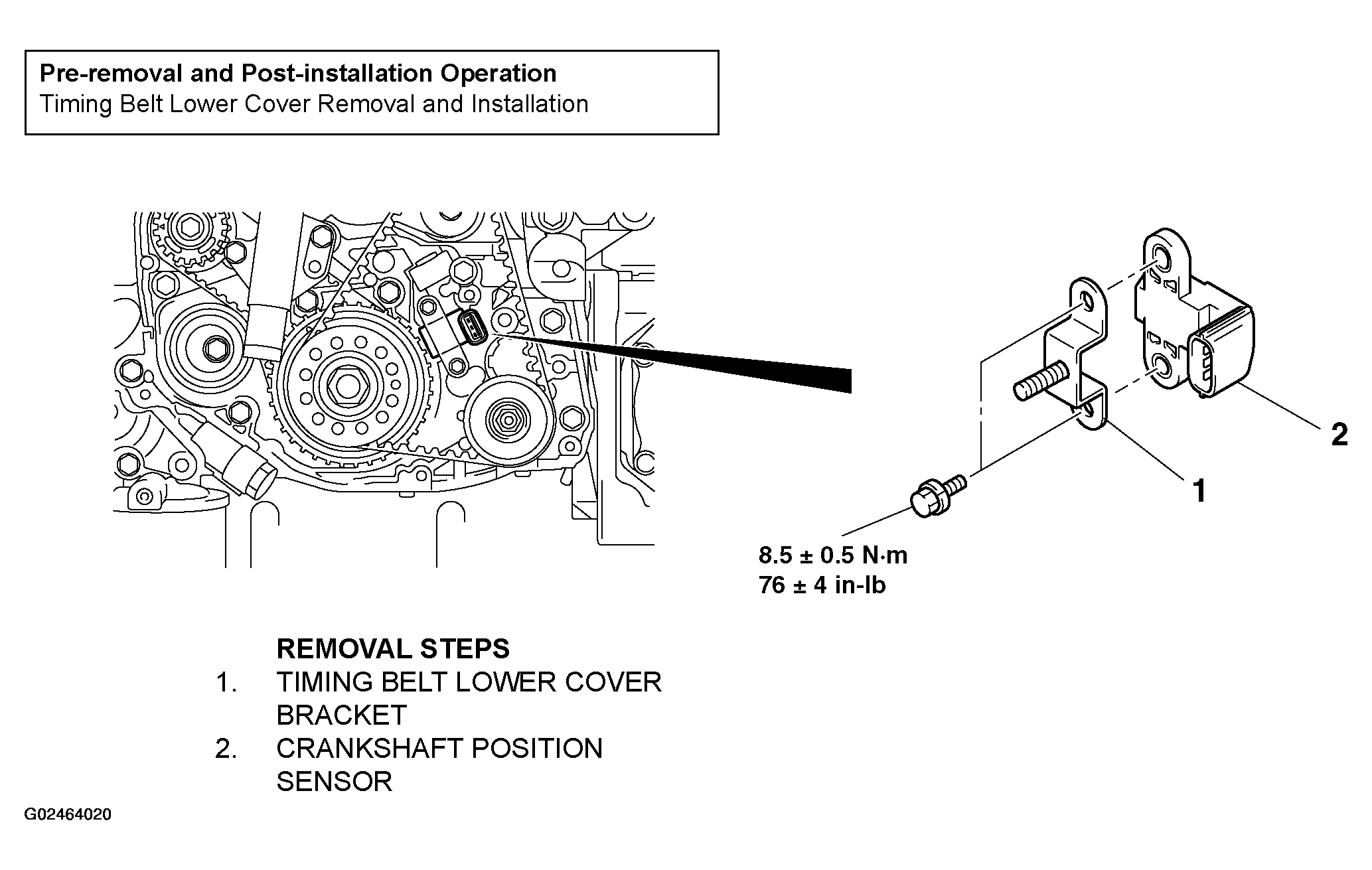

Fig 1: Removal Steps Of Crankshaft Position Sensor - 2.4L Engine

G02464020

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
