INSPECTION PROCEDURE 5: When The TCL Switch Is Push On, TCL Does Not Cancelled.: Notes

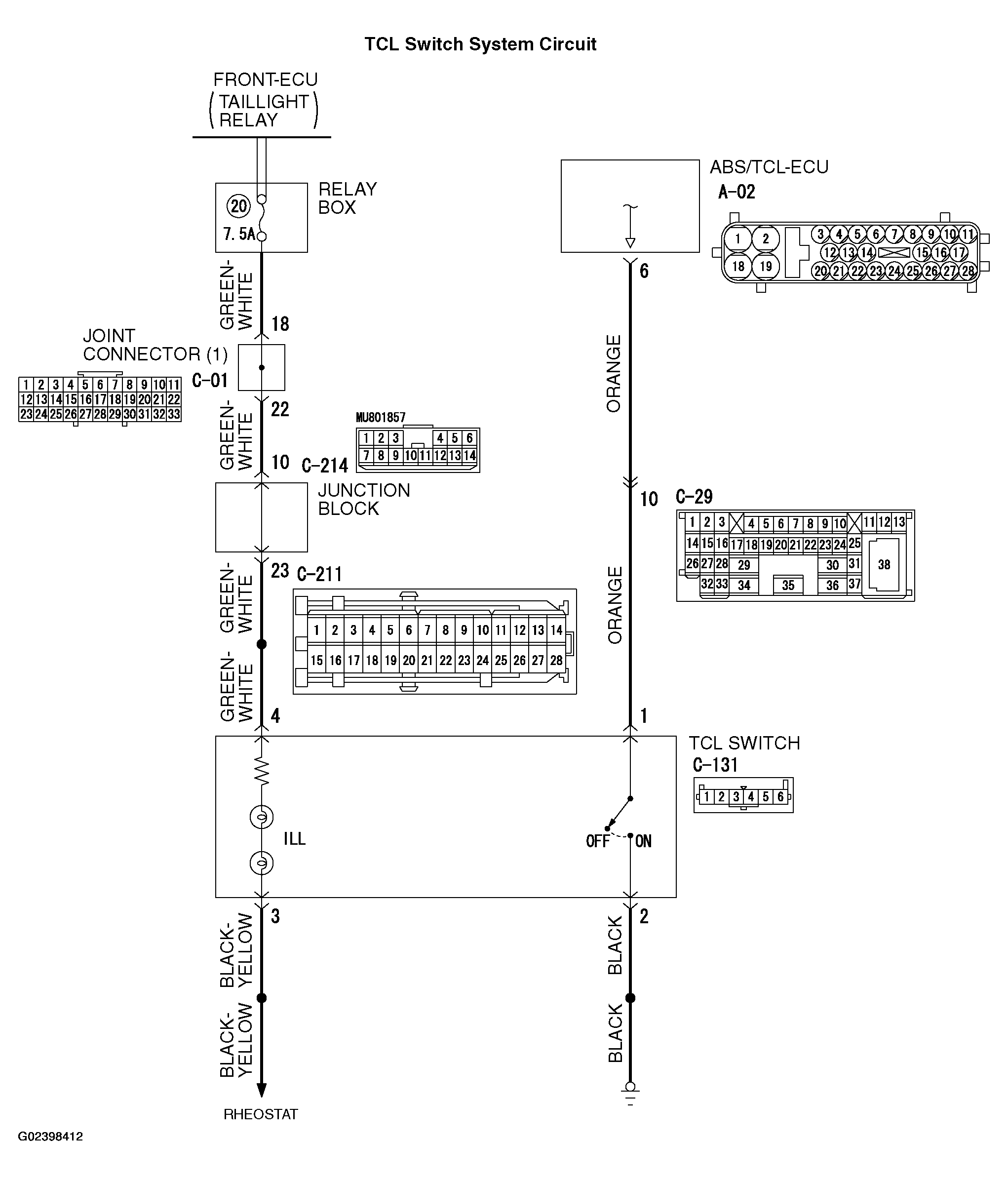

Fig 1: TCL Switch System Circuit Diagram
G02398412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

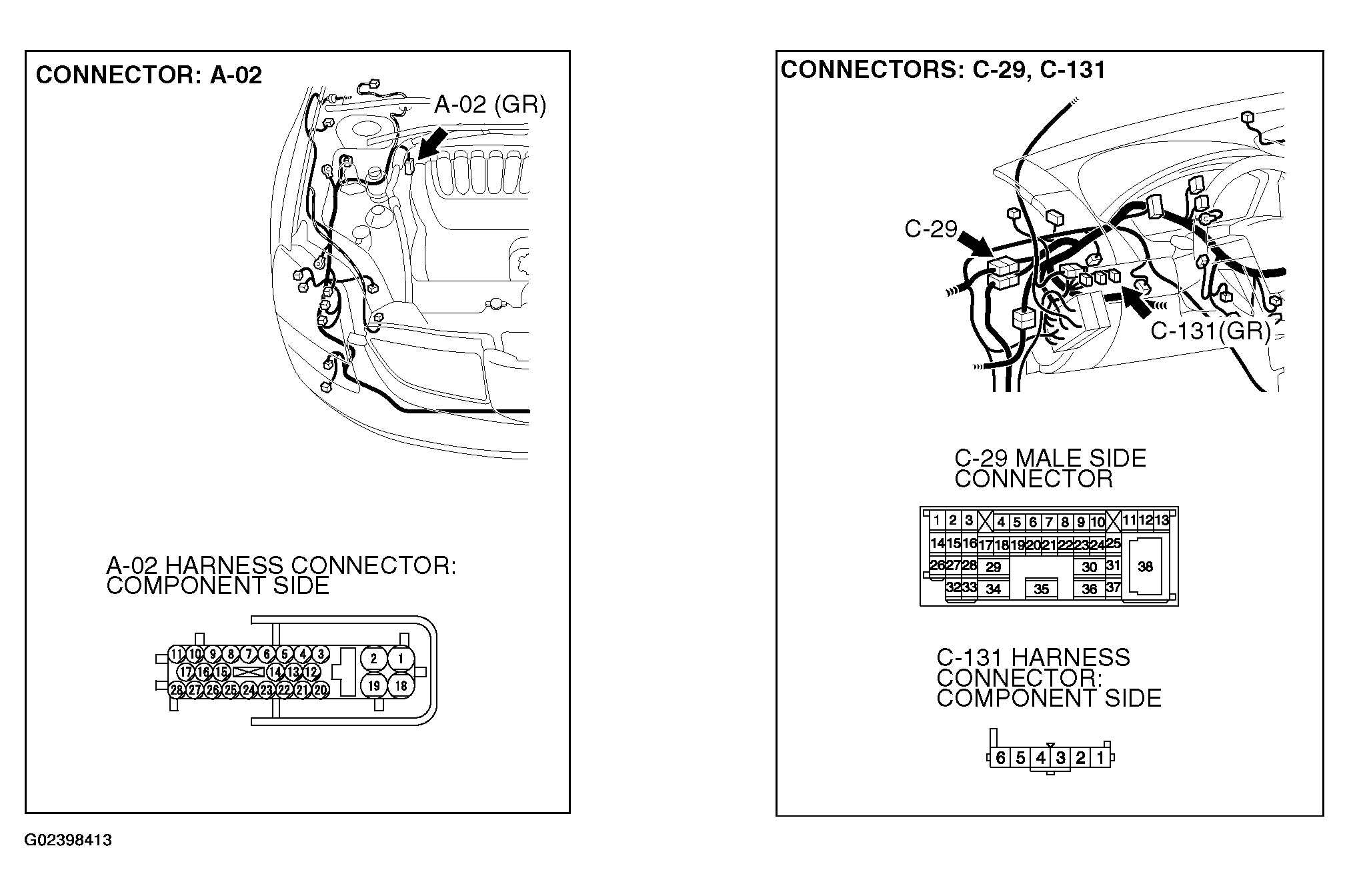

Fig 2: Identifying Connectors
G02398413Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
