DTC15: Auto-Cruise Control Switch System: Notes

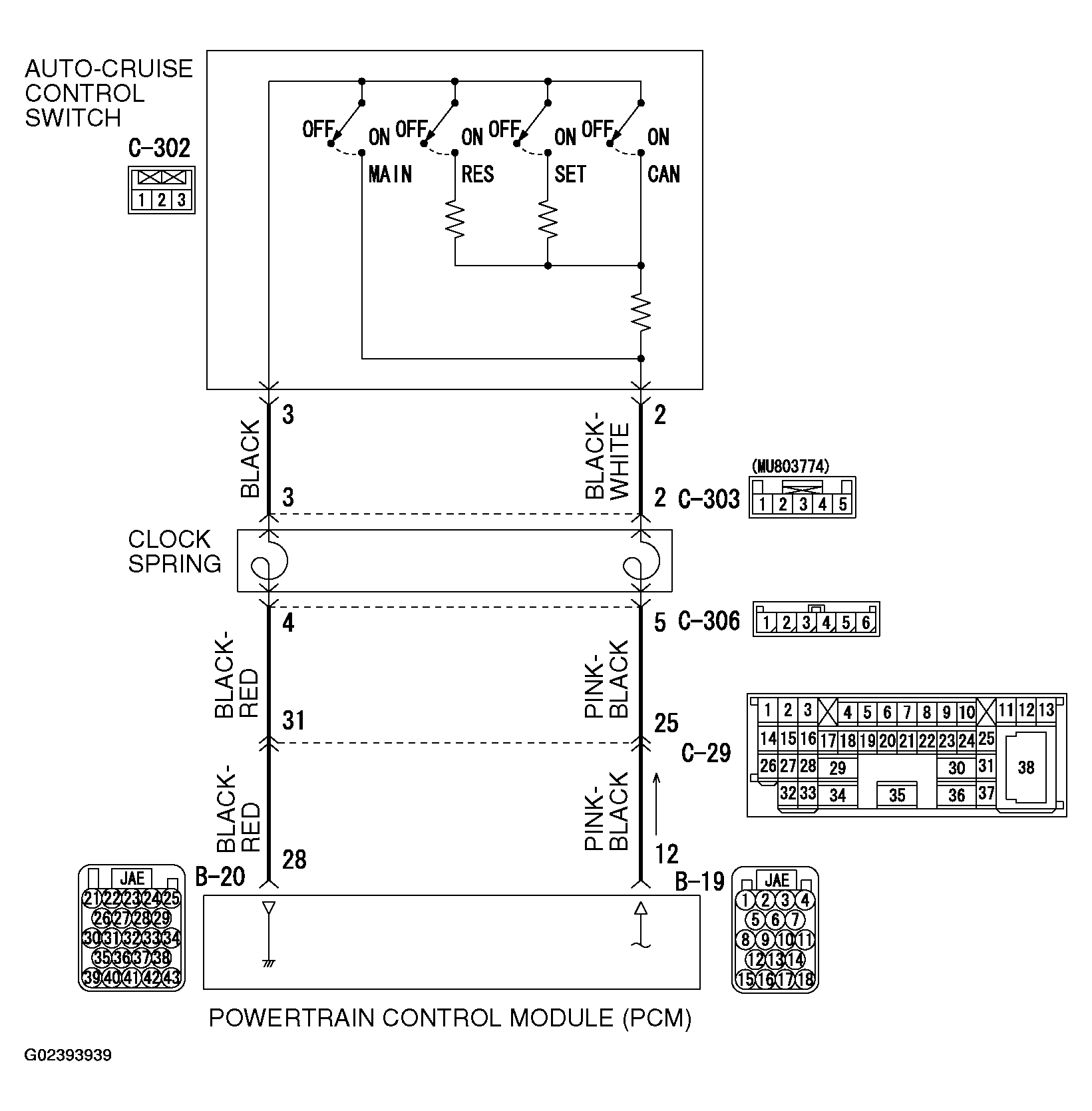

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
G02393939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

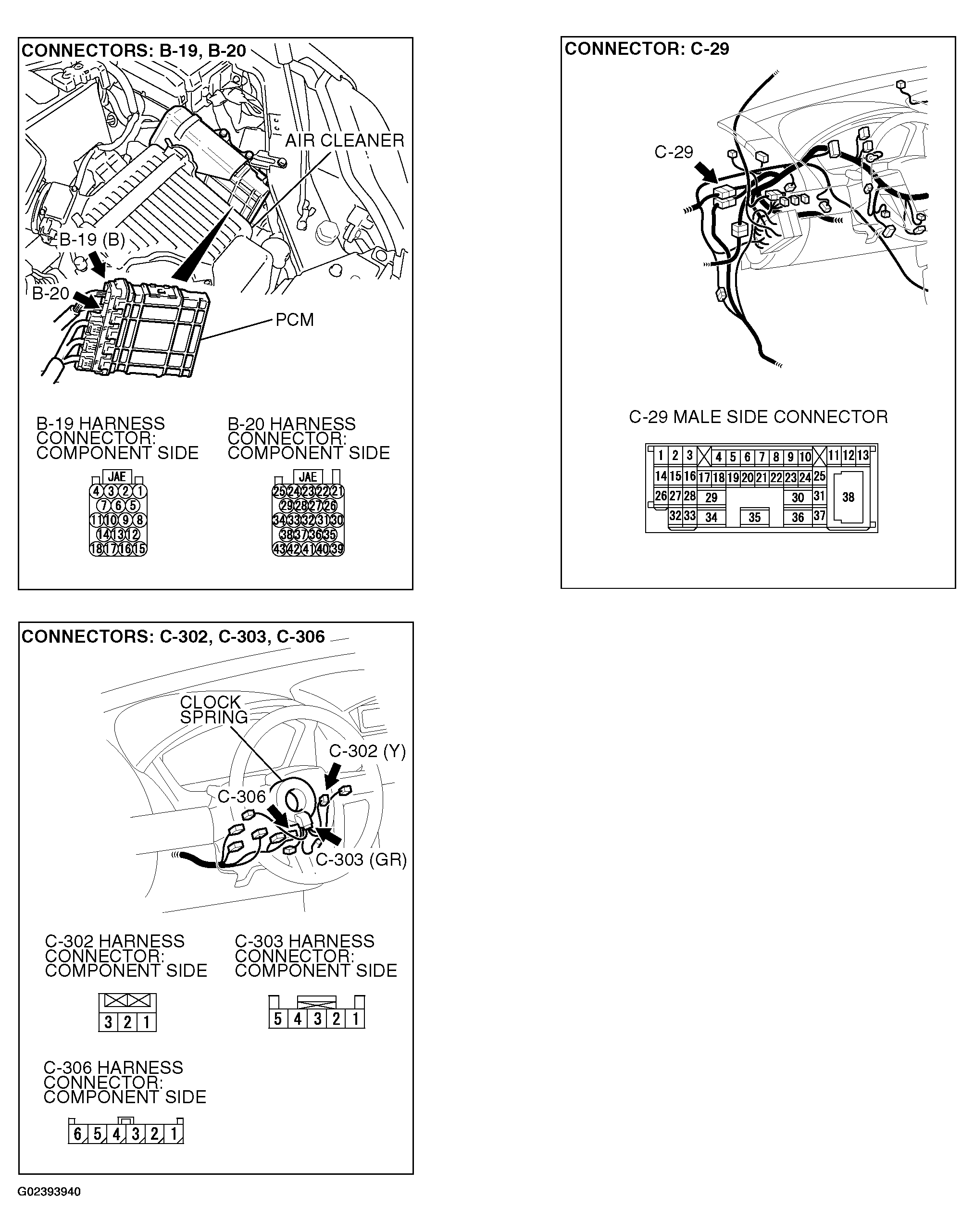

Fig 2: View Of Auto-Cruise Control Switch System Connectors
G02393940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
