INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL does not Cancelled.: Notes

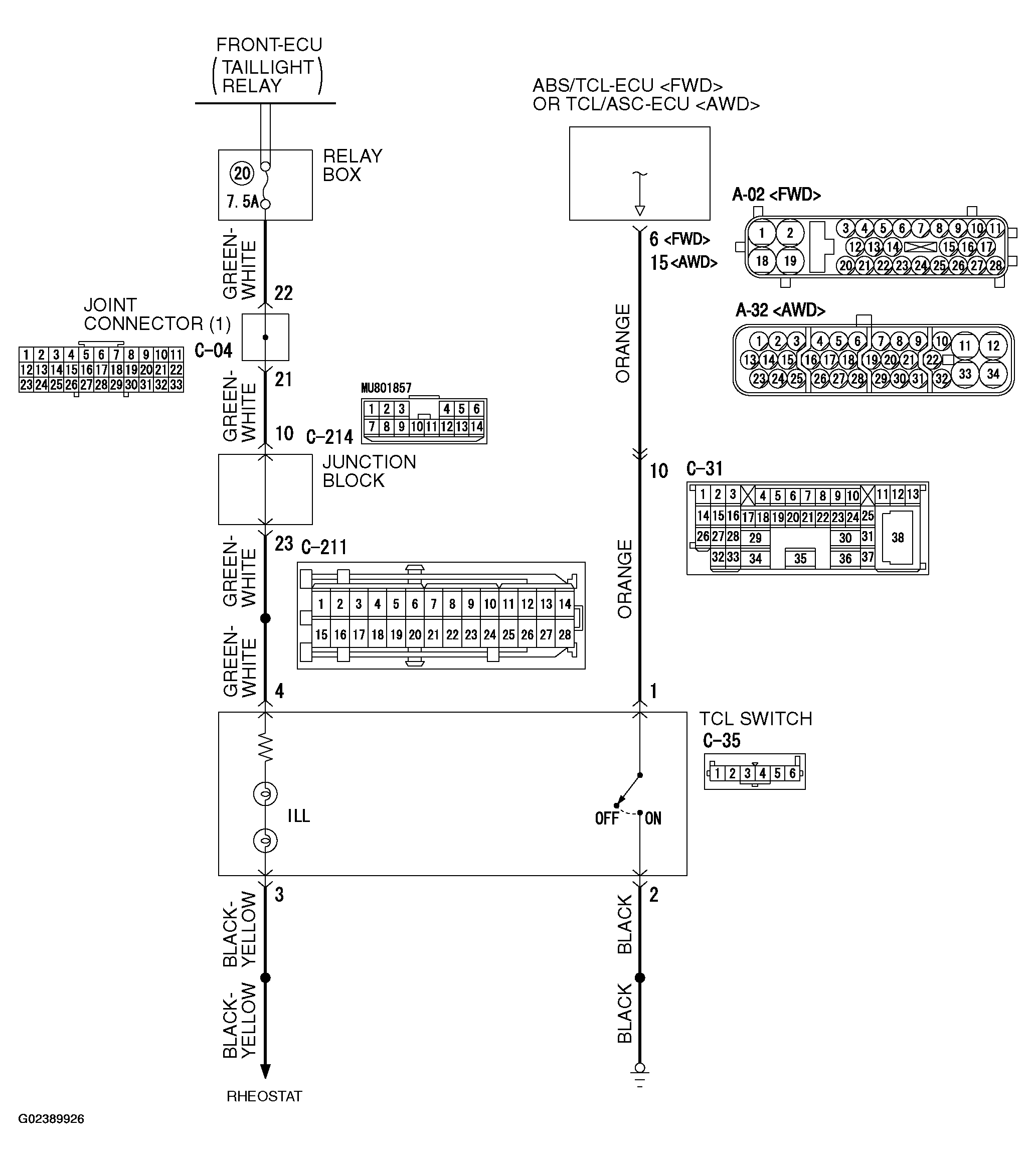

Fig 1: TCL Switch System Circuit Diagram
G02389926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

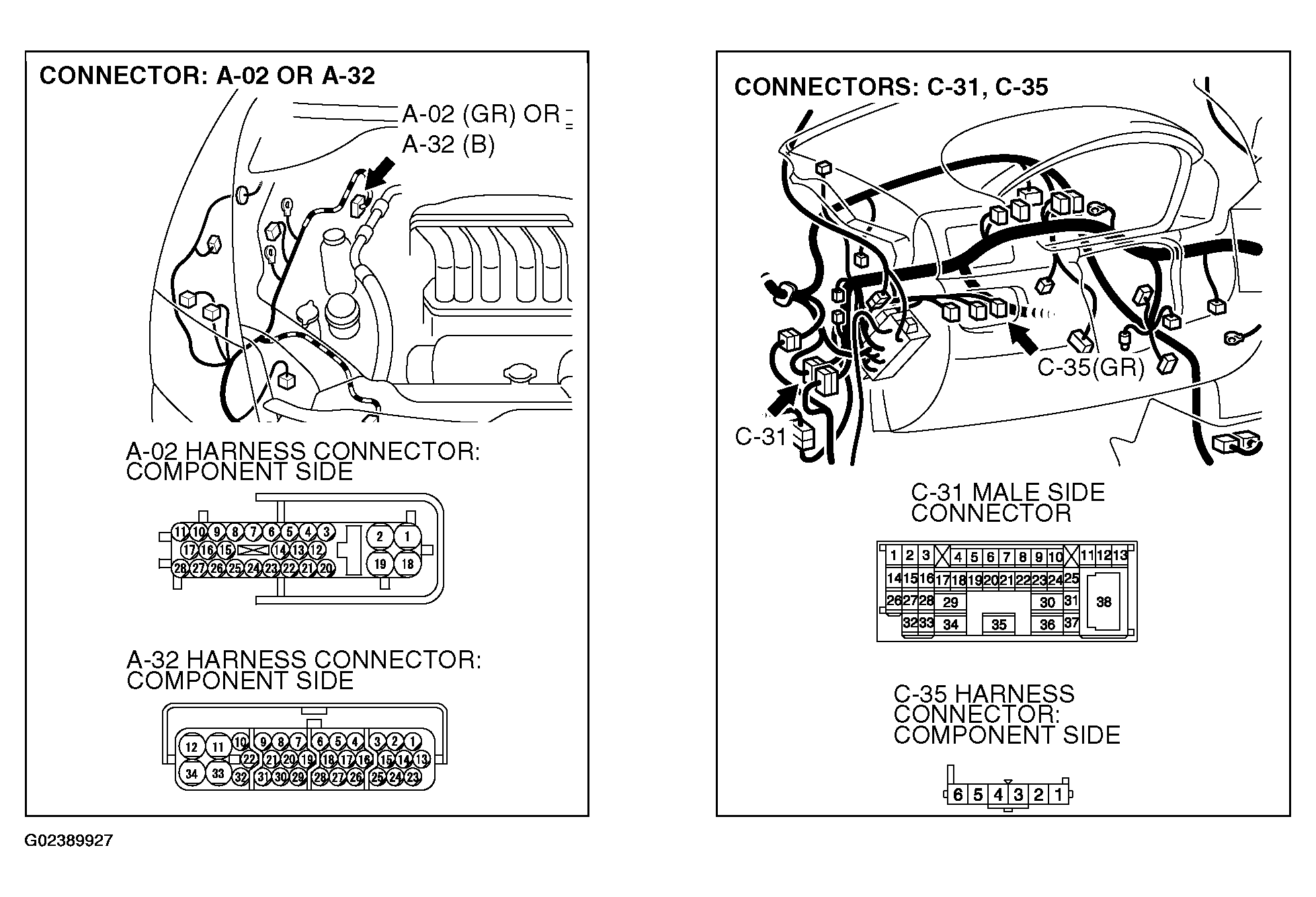

Fig 2: Identifying Connectors
G02389927Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
