Mitsubishi
>>
2005
>>
Endeavor LS, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Intake And Exhaust
>>
Intake Manifold Plenum
>>
Removal And Installation
Removal And Installation

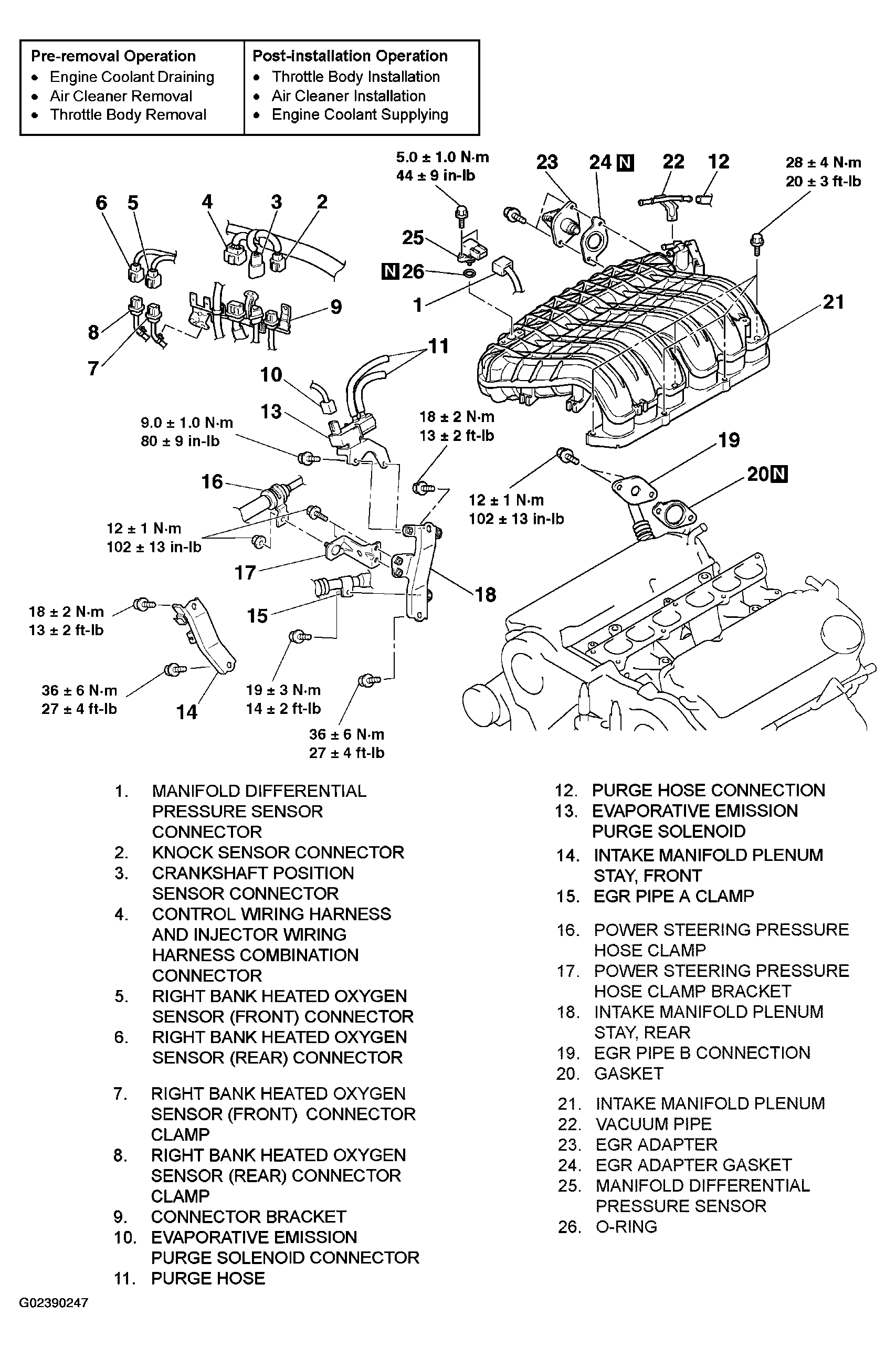

Fig 1: Removing/Installing Intake Manifold Plenum
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
