INSPECTION PROCEDURE 5: G And Yaw Rate Sensor Power Supply System: Notes

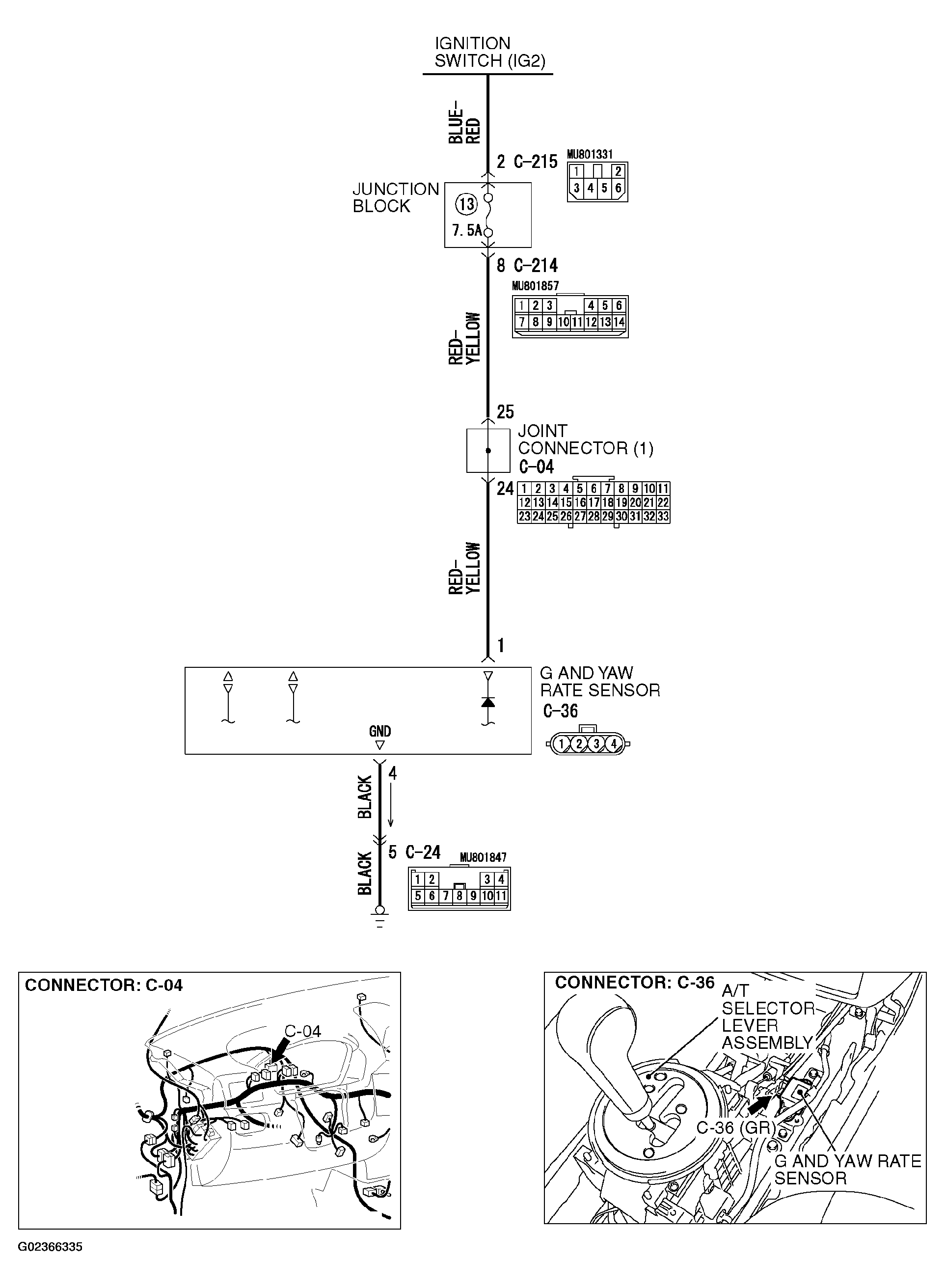

Fig 1: G And Yaw Rate Sensor Power Supply Circuit Diagram (1 Of 2)
G02366335Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

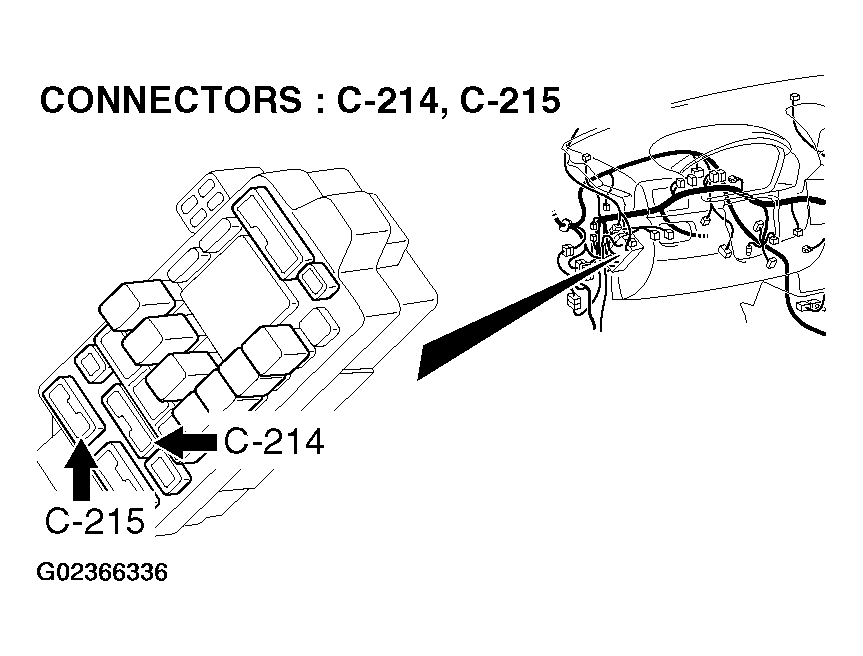

Fig 2: G And Yaw Rate Sensor Power Supply Circuit Diagram (2 Of 2)
G02366336Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
